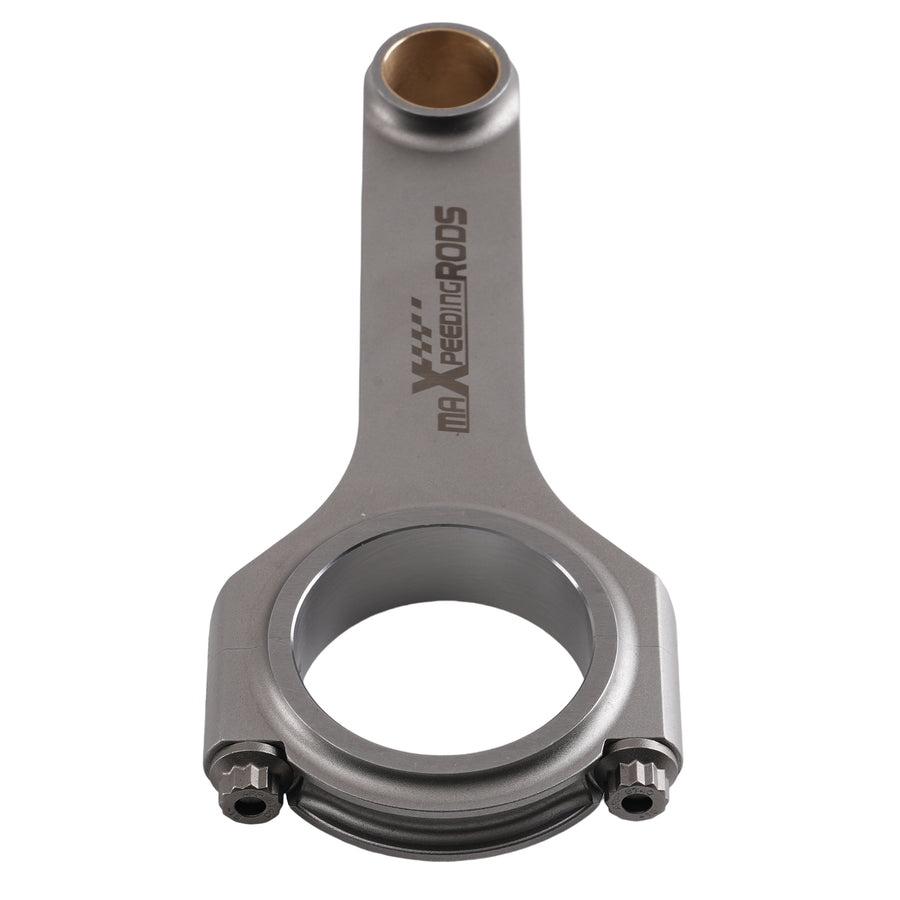

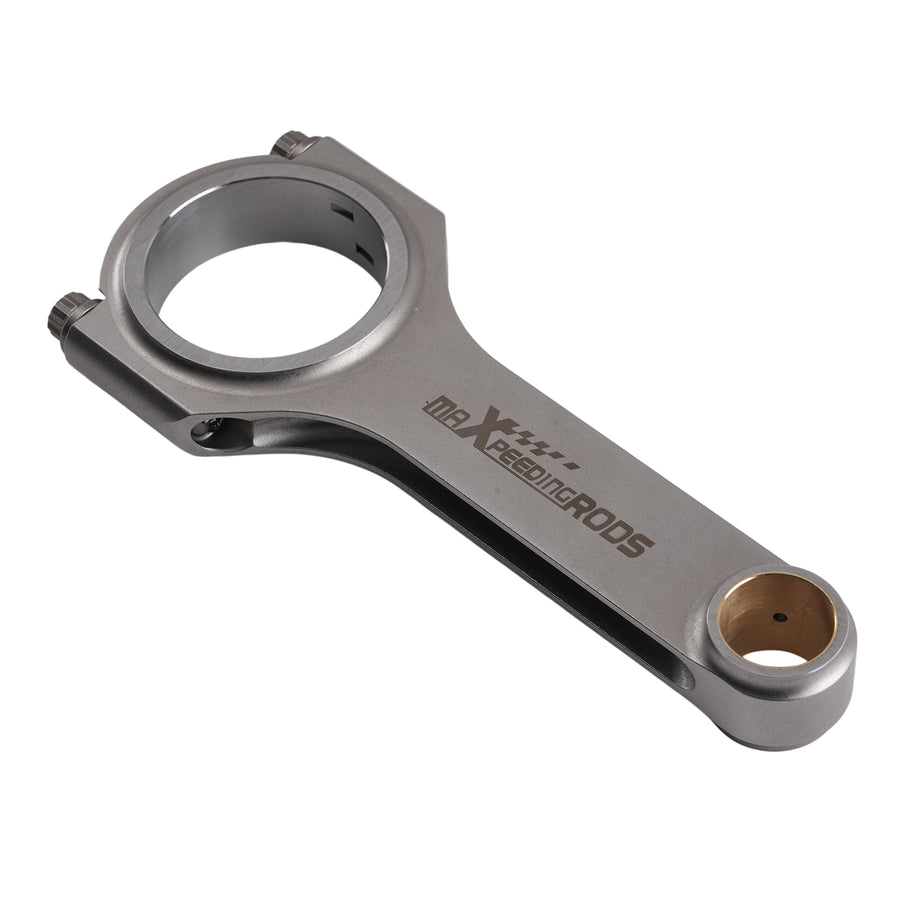

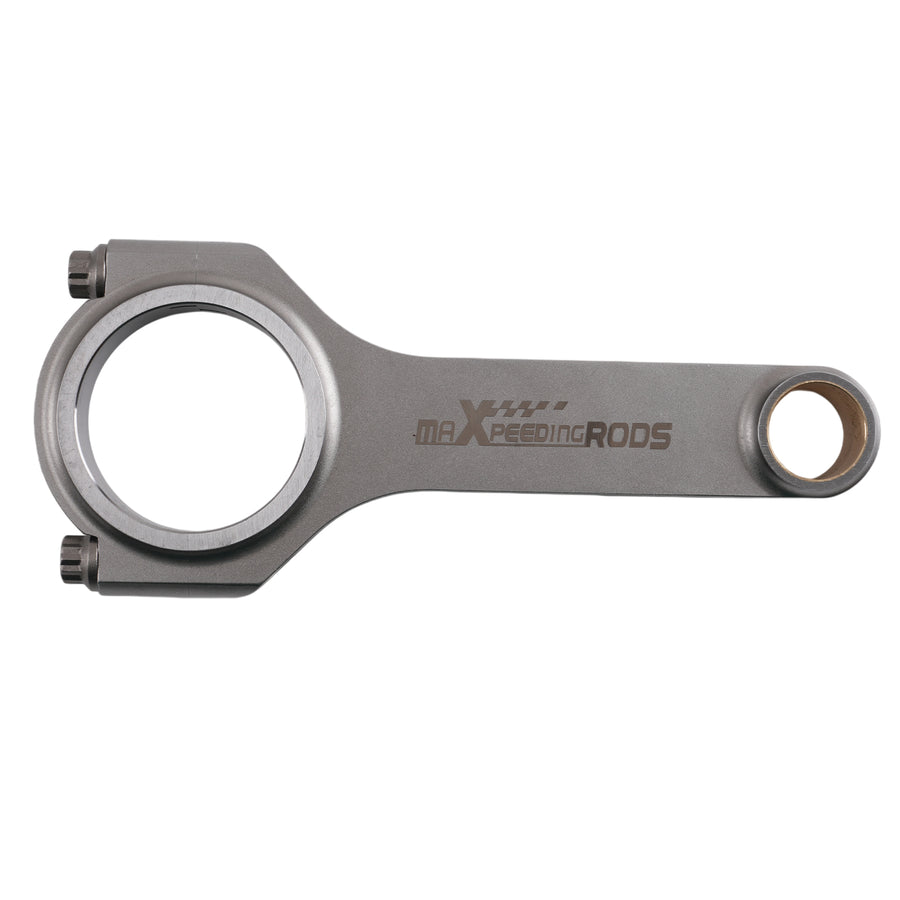

6.385 2.325 .990 Connecting Rods compatible for GMC BBC 396/454/502 6.5/7.4/8.2L ARP

Compatible Vehicles

• "Compatible for GM 396/454/502
• Pin Type: Floating Pin Piston"

Specification

• "*Type: Forged 4340 aircraft chrome moly quality steel for racing

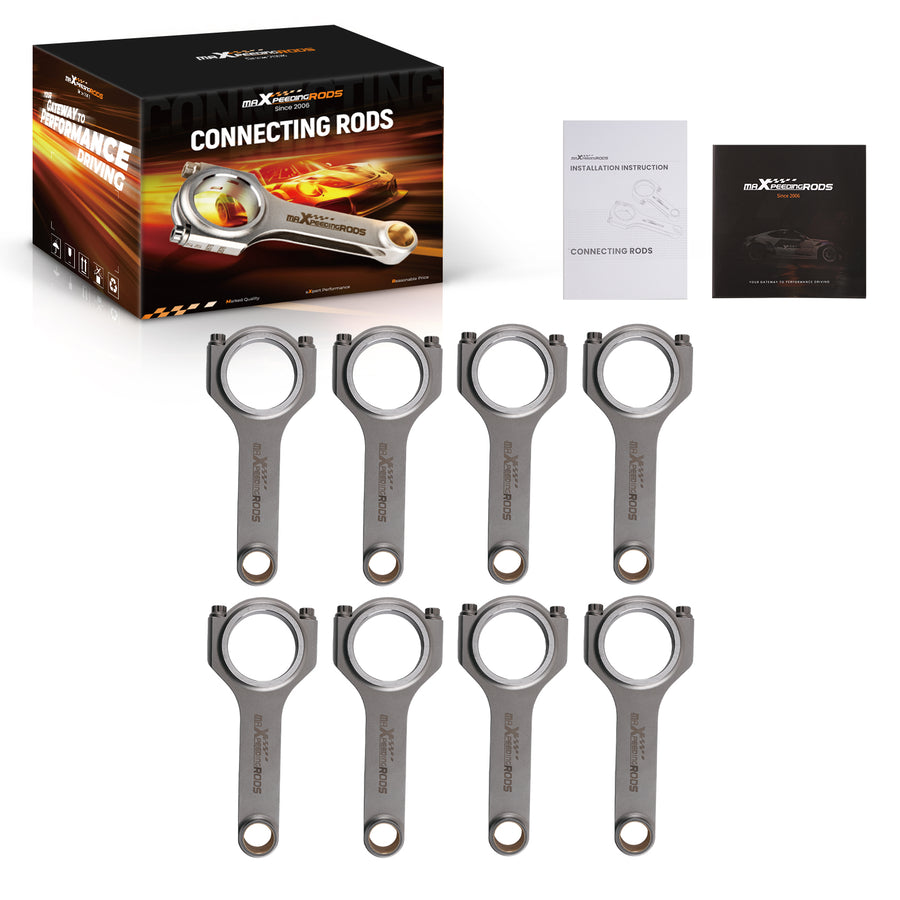

• *H-beam Conrods Quantity: 8 Pieces as showing in picture
• *Bolts: Including ARP 2000 7/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
• *The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
• *Advertised Horsepower Rating:200HP/piece
• *Top acceleration: 9000rpm
• *package size：28CM*20CM*14CM"

Dimension

• Centre to centre length:162.18mm/6.385"
• Big end diameter:59.06mm/2.325"
• Small end diameter:25.15mm/0.990"
• Big end width:25.17mm/0.991"
• Small end width:28.68mm/1.129"

Feature

• "1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
• 2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
• 3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
• 4. H-Beam design reduces weight without compromising strength；
• 5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
• 6.High precision CNC machined,Precision rod cap alignment dowels；
• 7.Bores finished to +/- .005mm；
• 8.Balanced to within +/- 1 g per rod；
• 9. Each rod is magnetic particle tested to ensure free of flaws；
• 10.Use X-rayed, sonic tested；
• 11.Custom Service."

Note

• "*Professional installation is highly recommended ；
• *Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs."
