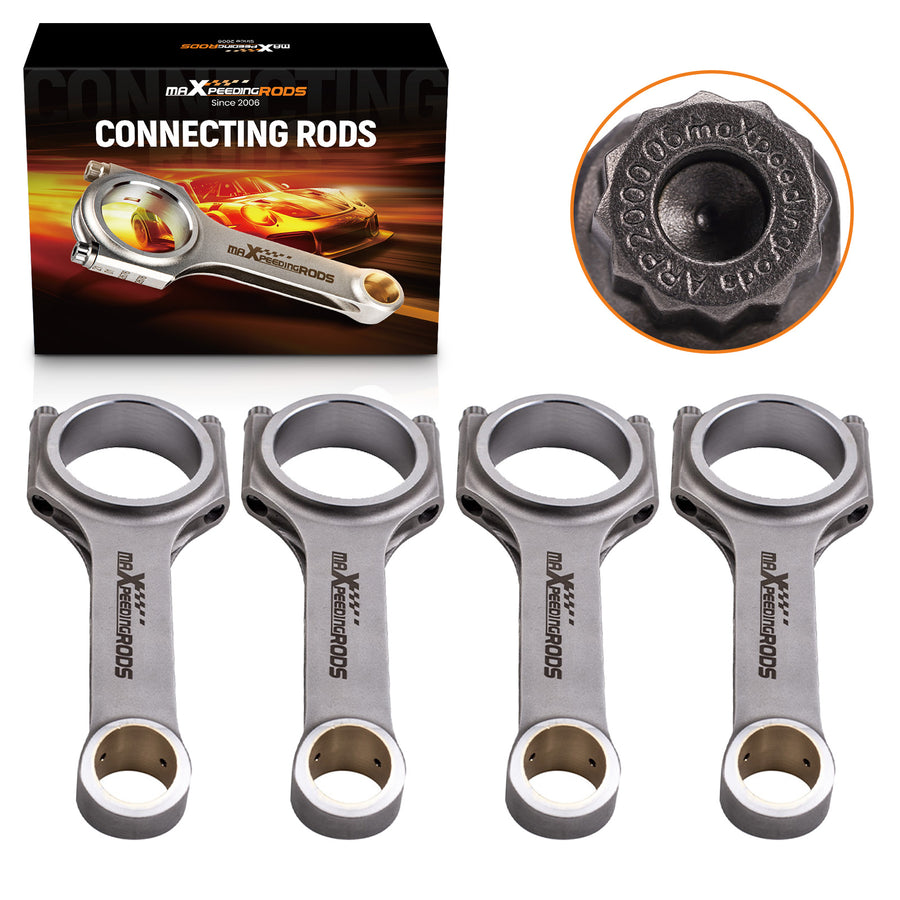

4x Forged 4340 Connecting Rods compatible for VW Passat compatible for Golf Gti 1.8T Pin 19mm taper 800HP

Compatible Vehicles

• Compatible for Audi/VW 1.4L TFSI 1.8T 20V & 2.0L 16V/20V Engines

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Through-bolt
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 5/16"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
• Upgrade Fasteners: ARP L19 (260,000 psi) optional
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

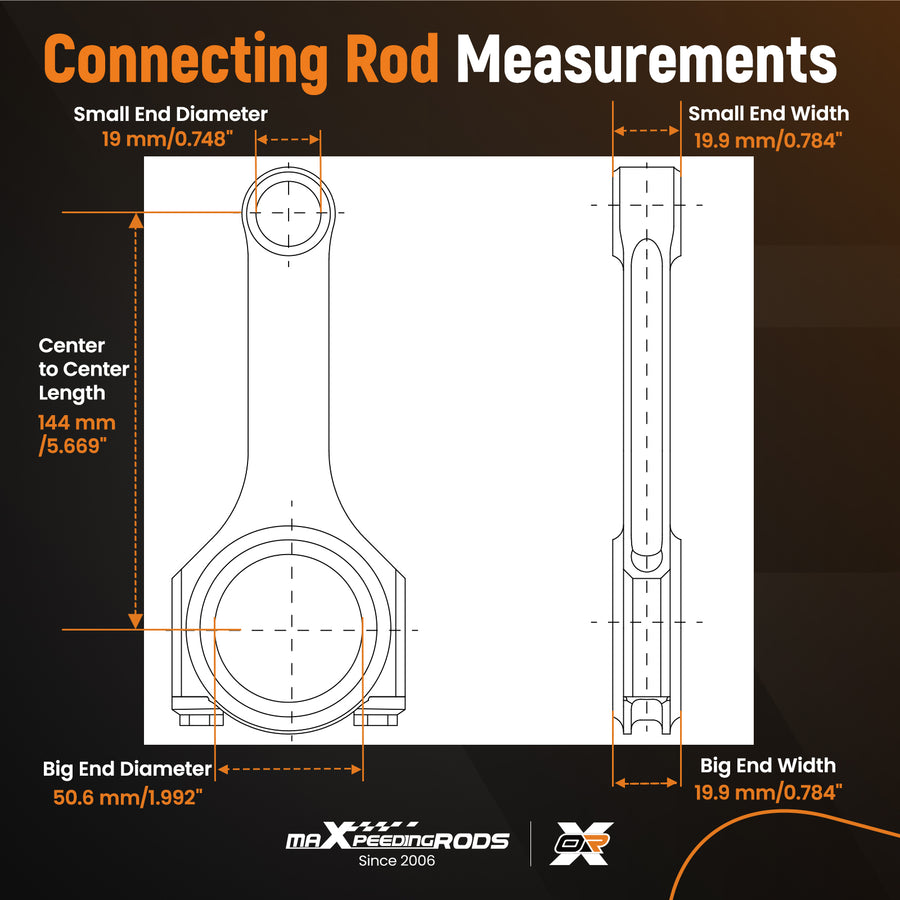

Dimension

• Connecting Rod Length Centre to Centre: 144.00mm/5.670in
• Approximate Connecting Rod Weight: 484g
• Big End Bore Diameter: 50.60mm/1.992in
• Pin End Bore Diameter: 19.00mm/0.748in
• Big End Width: 19.90mm/0.784in
• Small End Width: 19.90mm/0.784in

Performance Ratings

• Advertised Horsepower Rating: 200HP/piece
• Advertised RPM Rating: 7000rpm

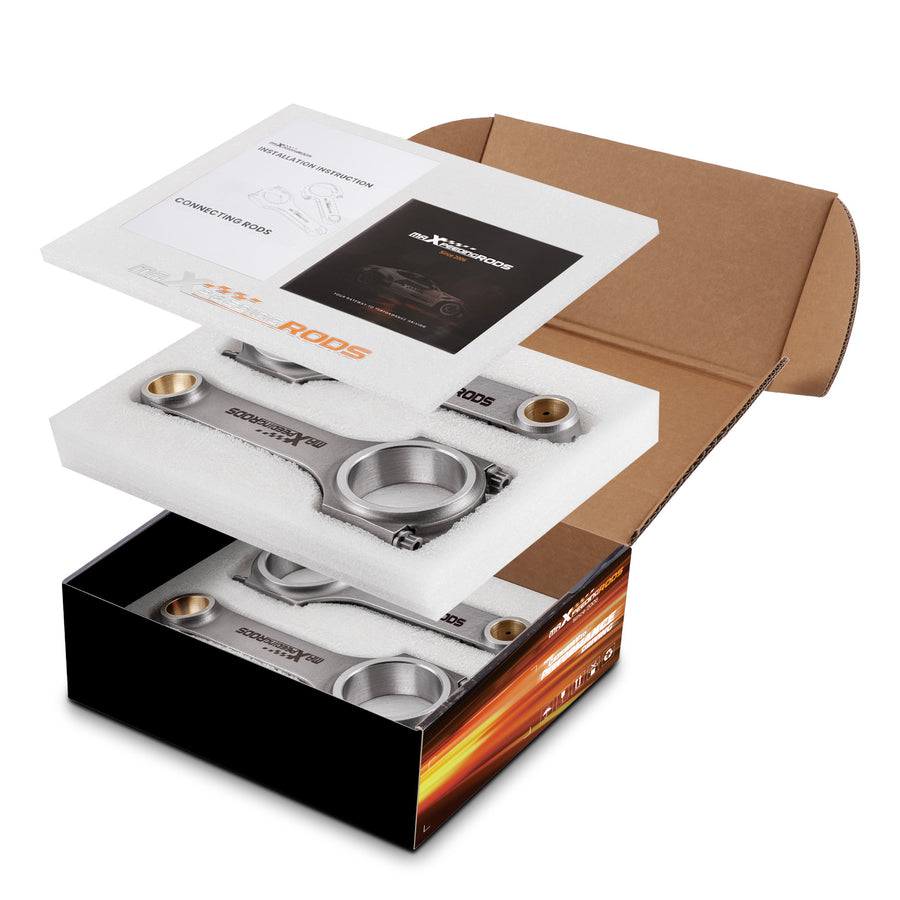

Packaging

• Quantity: Sold as a set of 4
• Package Size: 28CM*20CM*10CM
