4pcs Air Suspension Spring Bellows for Goodyear 1R11-268 compatible for Kenworth C811005

Compatible Vehicles

• Goodyear 1R11-268 compatible for Kenworth C811005

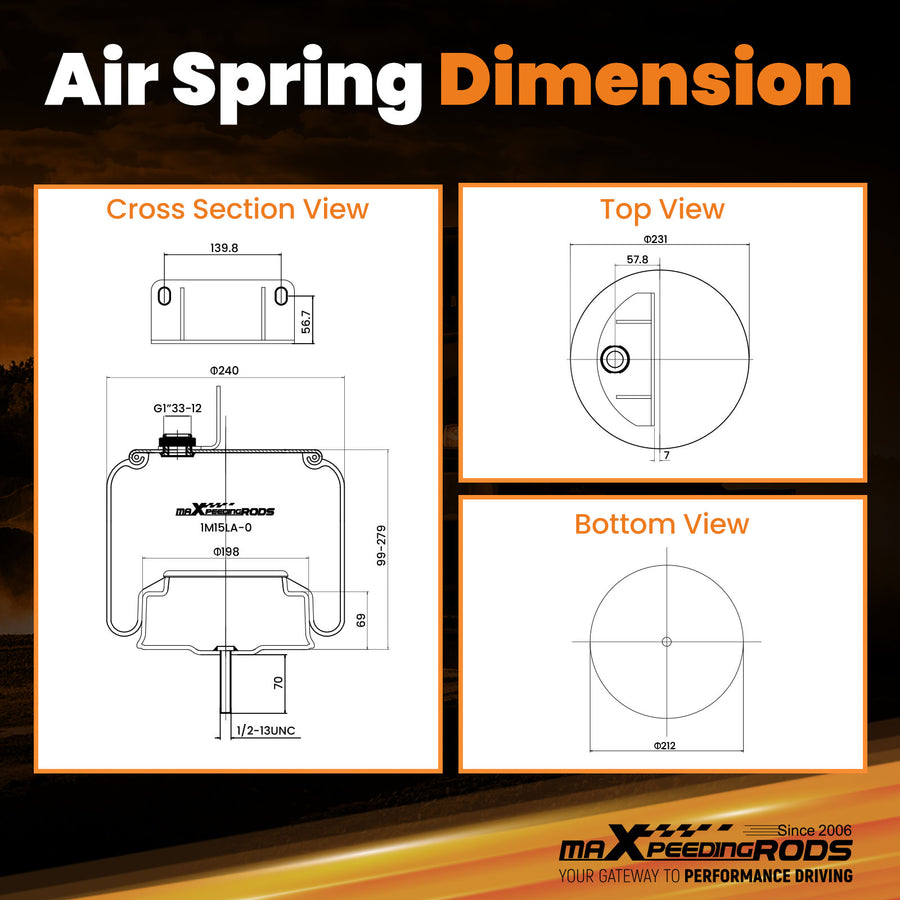

Specification

• Top plate screw (nut) teeth: 1 5/16-12UNF
• The screw centre distance of the top bracket:139.8mm / 5.5inch
• Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
• Top plate diameter: 231mm / 9.1 inch
• Diameter of the bottom cover: 212mm / 8.3inch
• Stroke: from 99mm / 3.9inch to 279mm / 11inch
• Intern Jounce Bumper: Not included
• Piston Material: SPHC Steel
• Quantity: 1 Piece
• Condition: Brand New
• Material: Natural rubber
• Package Length, width and height: 66*35*50 cm/26*13.8*19.7inch
• Package Wight:19.1Kg/42.4LB

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.

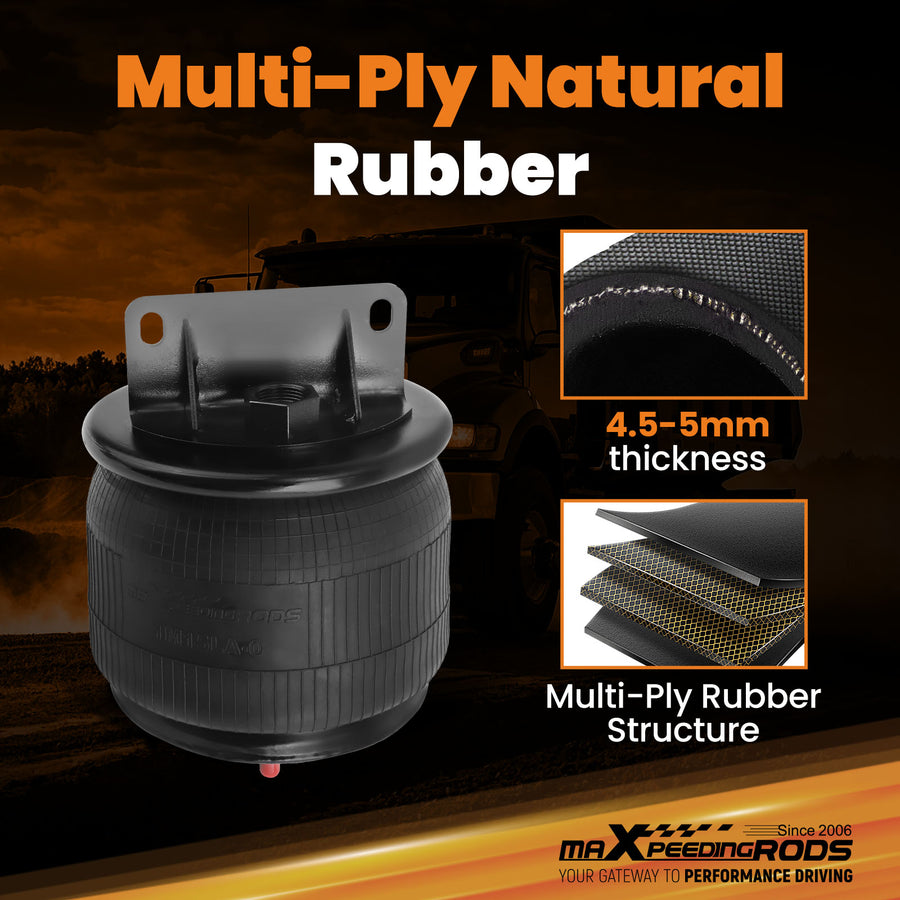

• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-358-9541, 1T15LA-0, 1T15KW-0
• replacement for ContiTech 68357, 99-10S861
• replacement for Goodyear 1R11-268
• compatible for Kenworth C811005, C81-1005, C81-1004
• Other parts number:
• fit for Airglide 20005/03, Later,Airglide 460, Airglide 690
• for Automann 1DK20H-9541
• for Brake & Wheel M3528
• for Triangle AS-8861
• for TRP AS95410
• for Meritor FS9541
