4340 Forged Connecting Rods+ARP2000 Bolts compatible for Honda D17 D17A 1.7L Engine 137mm

Compatible Vehicles

• Compatible for Honda D17 / D17A 1.7L SOHC：
• Compatible for Honda Civic Coupe ES 2001-2005 Coupe (1.7L - Floating Pin Piston)
• Compatible for Honda Civic EX EM2/ES1 2001-2006 Coupe/Saloon (1.7L VTEC - Floating Pin Piston)
• Compatible for Honda Civic LX EM2/ES1 2001-2006 Coupe/Saloon (1.7L - Floating Pin Piston)
• Compatible for Honda Civic Si EP2 2001-2005 Hatchback (1.7L VTEC - Floating Pin Piston)
• Compatible for Honda Civic HX EM2 2001-2005 Coupe (1.7L VTEC-E - Floating Pin Piston)
• Compatible for Honda Civic GX EN2 2001-2005 Saloon (1.7L CNG - Floating Pin Piston)
• Compatible for Honda Civic DX ES1 2001-2005 Saloon (1.7L - Floating Pin Piston)
• Compatible for Honda Civic VP ES1 2001-2005 Saloon (1.7L Value Package - Floating Pin Piston)
• Compatible for Acura 1.7 EL 2001-2005 Saloon (1.7L - Floating Pin Piston)
• Compatible for Honda Stream RN1 2000-2007 MPV (1.7L - Floating Pin Piston)
• Compatible for Honda Stream RN1 2004 MPV (1.7L VTEC - Floating Pin Piston)
• Compatible for Honda FR-V BE1 2004-2007 MPV (1.7L - Floating Pin Piston)

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• ClearancedFor Stroker: Yes
• Cap Retention Style: Through-bolt
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 3/8"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
• Upgrade Fasteners: ARP L19 (260,000 psi) optional
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

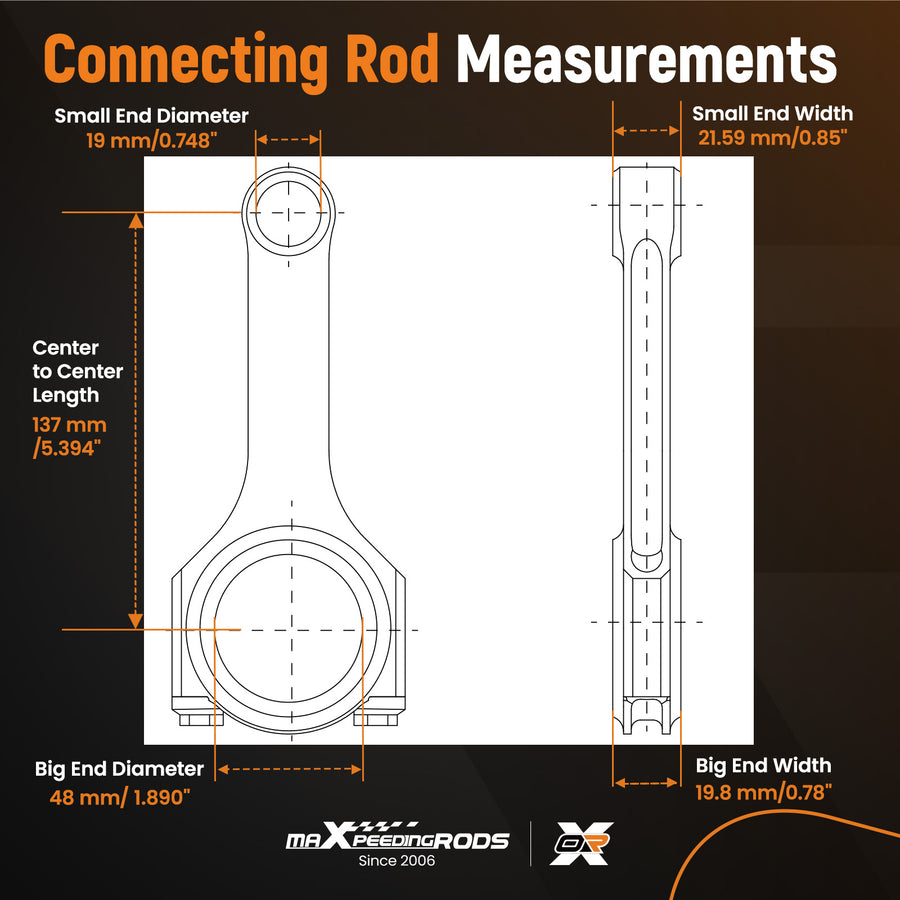

Dimension

• Connecting Rod Length Centre to Centre: 137.00mm / 5.394in
• Approximate Connecting Rod Weight:449g
• Big End Bore Diameter: 48.00mm / 1.890in
• Pin End Bore Diameter: 19.00mm / 0.748in
• Big End Width: 19.80mm / 0.780in
• Small End Width: 21.59mm / 0.850in

Performance Ratings

• Advertised Horsepower Rating: 200HP/piece
• Advertised RPM Rating: 9,000rpm

Package included

• Quantity: Sold as a set of 4
• Package Size: 28CM*20CM*10CM
