Compatible Vehicles
- For 2007-2010 2WD compatible for Jeep Wrangler JK Unlimited 4 door
- for 2017-2018 4WD compatible for Jeep Wrangler JK Unlimited 4 door
- note:
- • Does NOT fit 2-door models.
- • 2012-2018 models require exhaust modifications to clear the front driveshaft
- On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft.
Introduction
The suspension lift kit is designed to increase the ground clearance of the suspension, allowing the installation of larger tyres and enhancing the off-road performance of the car. High-pressure nitrogen-filled shocks provide a wonderful blend of off-road action and smooth on-road ride quality. Featuring natural rubber bushings and corrosion-resistant metallic silver paint. Levels the front with the rear of the vehicle；
Specification
- Product Type: suspension lift kit
- Lift Height: 4" lift level the front with the rear
- Material: High Tensile Strength Carbon Steel
- Finish: Powder coated
- Diameter of piston rod: F&R 18mm/0.70"
- Piston diameter：F&R 35mm/1.37"
- Outer cylinder diameter: F&R 54mm/2.12"
- Travel: F:265mm R: 253mm
- extended length: F: 735mm/28.93" R: 691mm/27.20"
- collapsed length:F: 470mm/18.50" R: 438mm/17.24"
- Nitrogen charged：yes
- dust cover equipped: yes
- spring rate: F 2.6kg/mm=145.59 lb/in R 4kg/mm=223.98lb/in
- spring length: F 535mm/21.06" R 460mm/18.11"
- spring materail: 55CrSi
Feature
- Easy bolt-on installation
- Increased ground clearance
- Dust cover included prevent the shaft rod and oil seal from damaging.
- Allows for larger tyres to be mounted
- Enhances vehicle off-road performance
- Levels the front with the rear of the vehicle

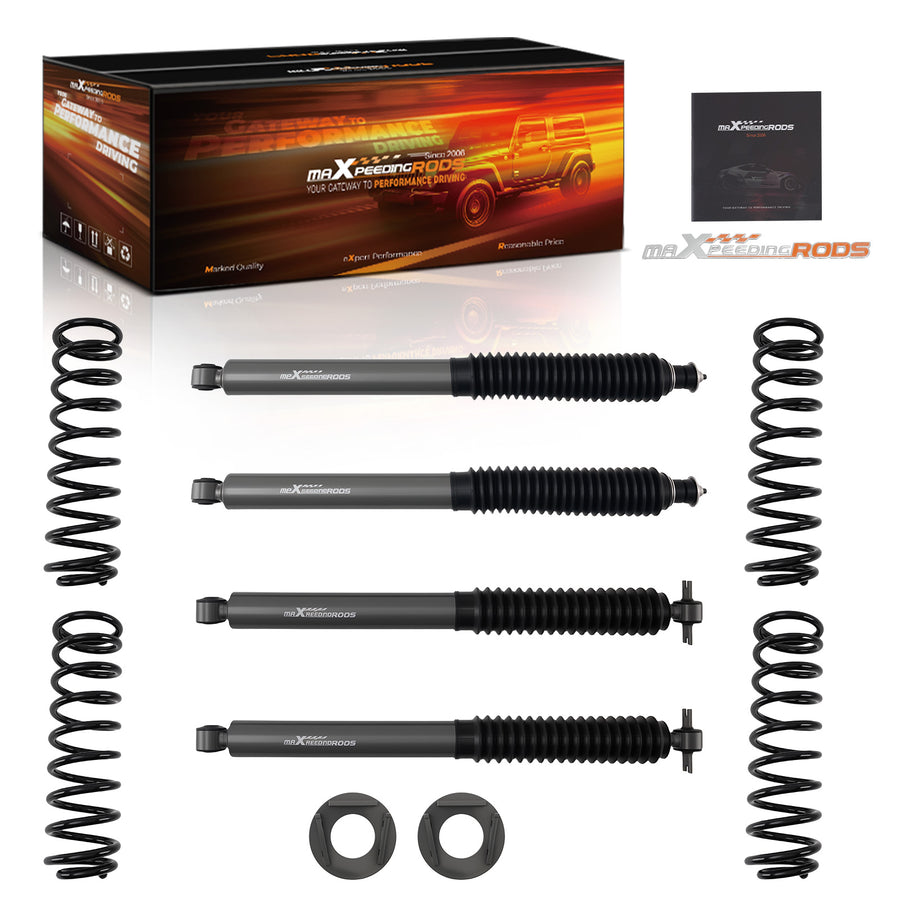

Package included
- Front:
- Lifted coil springs

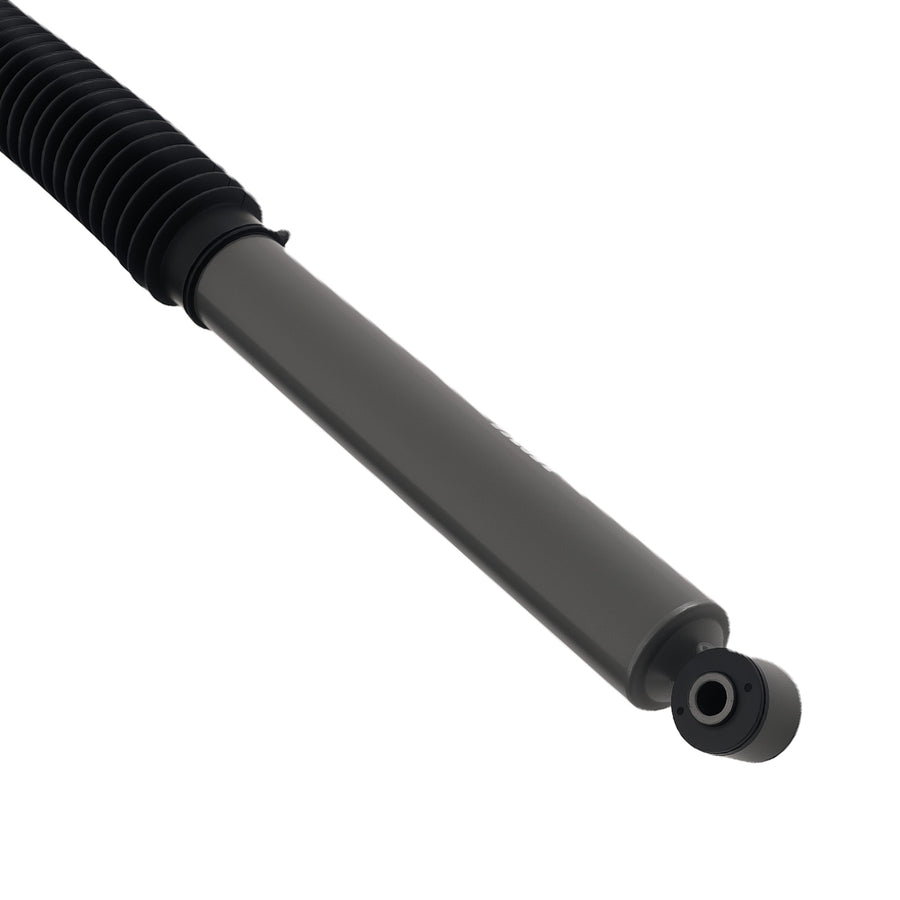

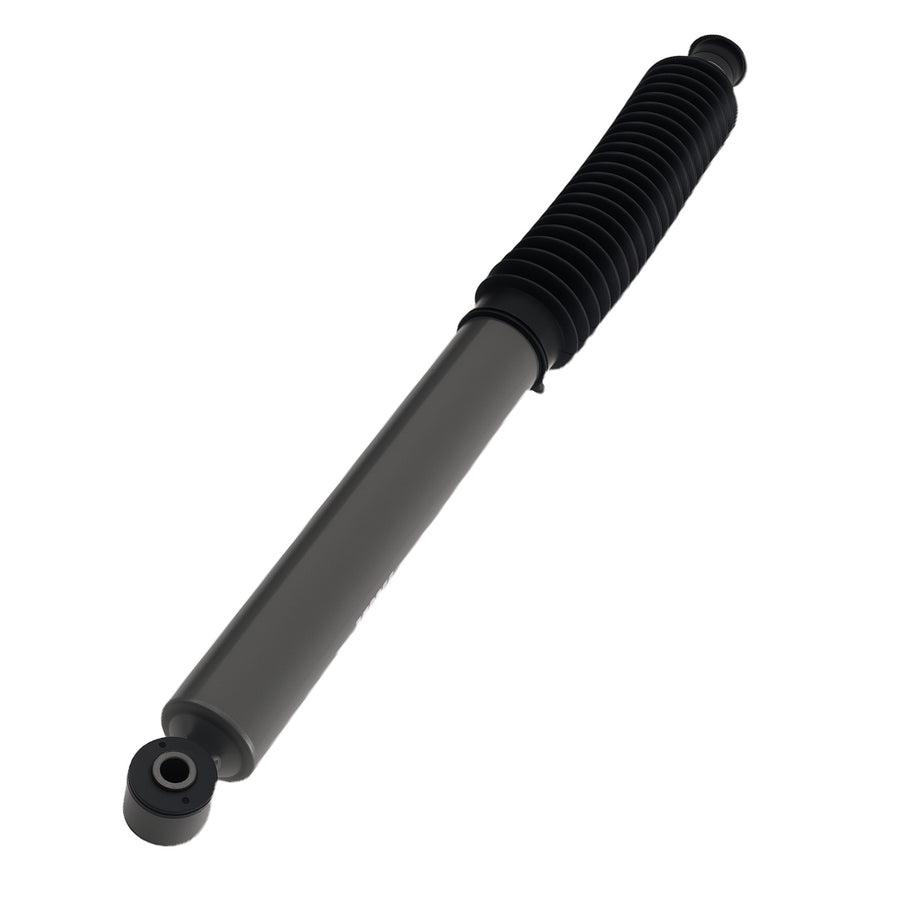

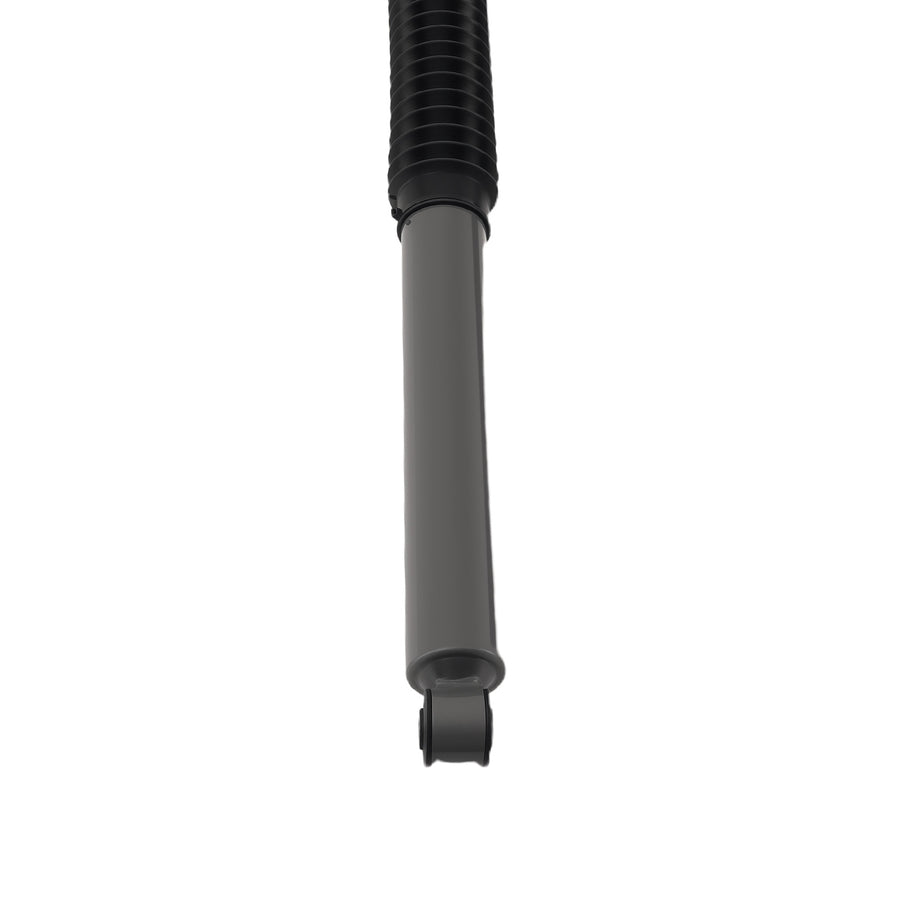

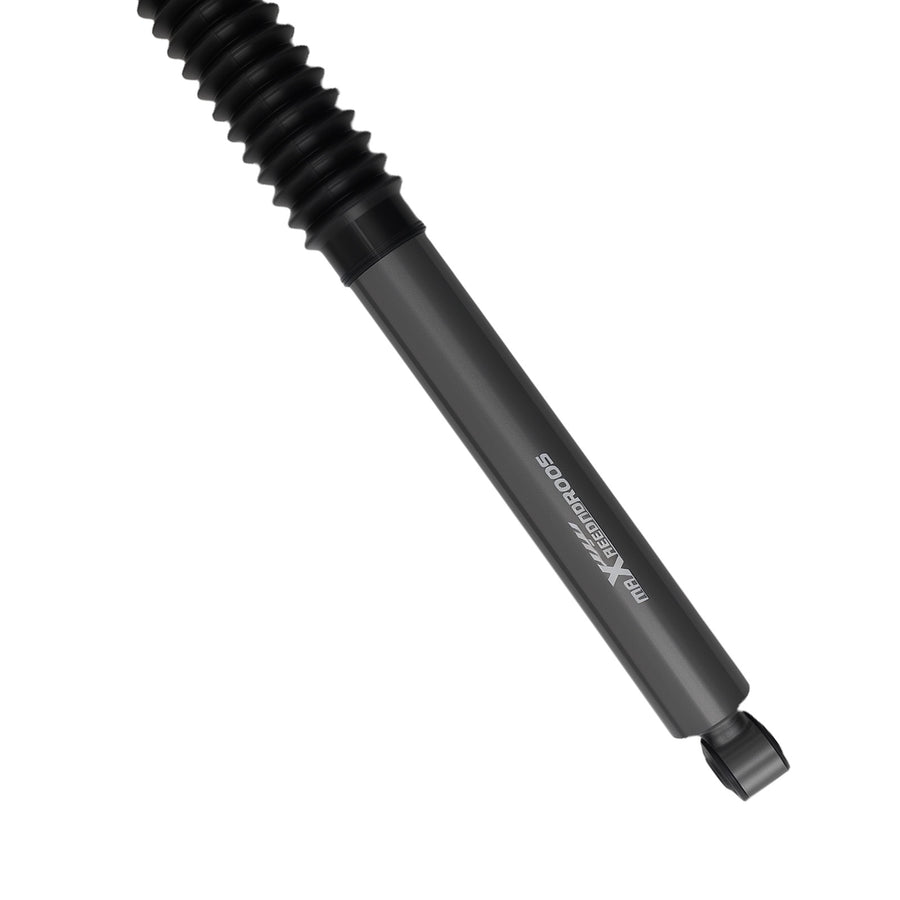

- Front Shock Absorbers
- Hardware
- Rear:
- Lifted coil springs
- Coil correction plates
- Rear Shock Absorbers
- Hardware
tire information
- Tyre Info:
- 35x12.50R17 17x9 5x5.0 12
- 35x12.50R17 17x9 5x5.0 6
- 35x12.50R18 18x9 5x5.0 12
- 35x12.50R18 18x9 5x5.0 6
- 35x12.50R20 20x9 5x5.0 12
- 35x12.50R20 20x9 5x5.0 6
