Compatible Vehicles
- For C10 1963-1972 pickups lowering front 3 inch and rear 5 inch
- note: Not advised to use for heavy C10 applications like Suburbans or panel trucks
Introduction
The front dropped coils and shocks will drop a 3" in the front and 5" in the rear. Necessary hardware are included for bolt-on installation. This is a redesigned drop spring and shocks lowering system. It increases your vehicle stability and handling and gives your truck a appealing stance.
Specification
- Product type: lowering kit with shocks
- lowering height: front 3"; rear 5"
- material: steel
- finish: powder-coated
- Bushing material:Rubber
- Diameter of piston rod: F&R 20mm/ 0.78"
- Piston diameter:F&R 32mm/ 1.25"
- Outer cylinder diameter: F&R 50mm/ 1.96"
- Extended length:F 345MM= 13.58" R 480MM=18.89"
- Collapsed length: F 260MM=10.23" R 335MM=13.18"
- Travel range: F: 85MM=3.34" R 145MM=5.70"
- Nitrogen charged:Yes
- Dust cover equipped:NO
- spring length: F 280mm=11.02" R 225mm=8.85"
- spring rate: F 20kg/mm=1 119.94lbs/in R 6kg/mm=335.98lbs/in
Feature
- Lower the centre of gravity, reduce cornering roll, and increase vehicle stability

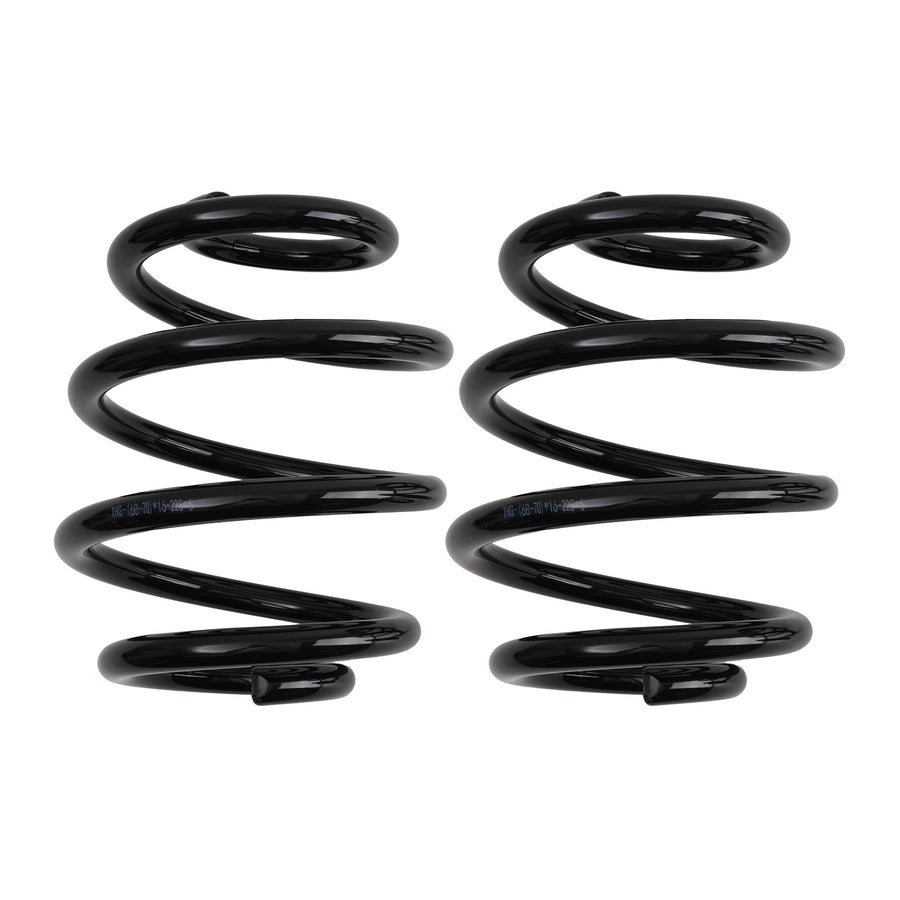

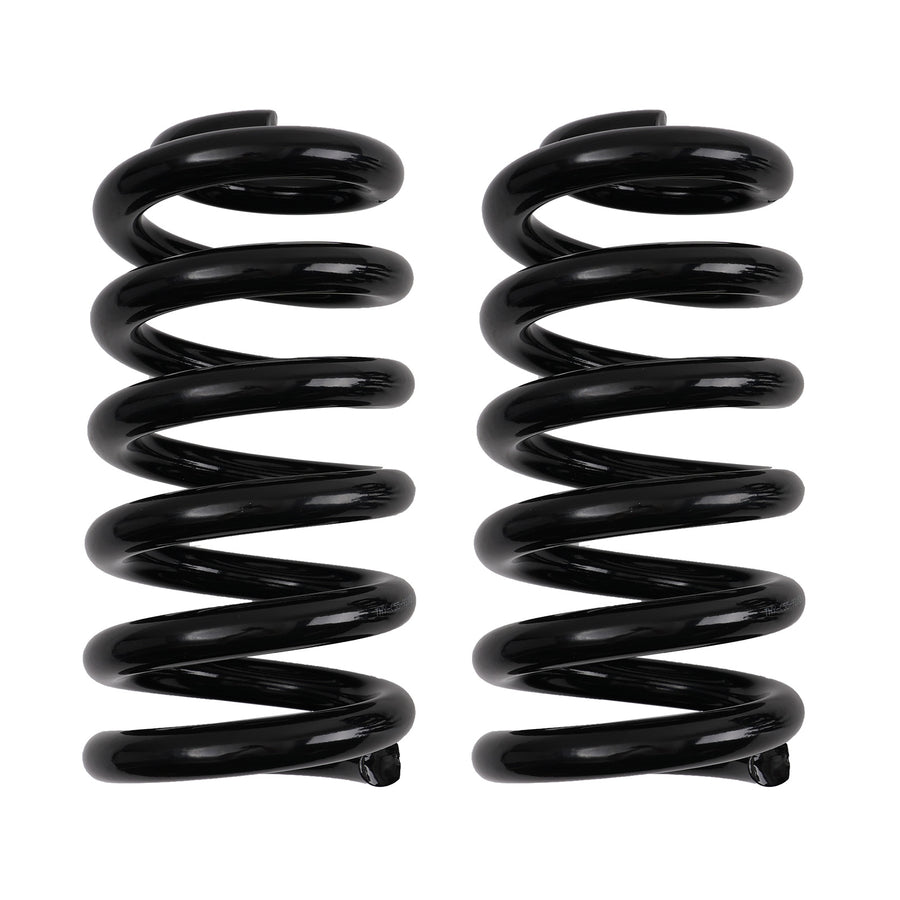

- spring feature
- Chromium-silicon cold-wound structure with high tensile strength and resilience
- Black powder coating for corrosion resistance
- Spring retainers included for easy installation

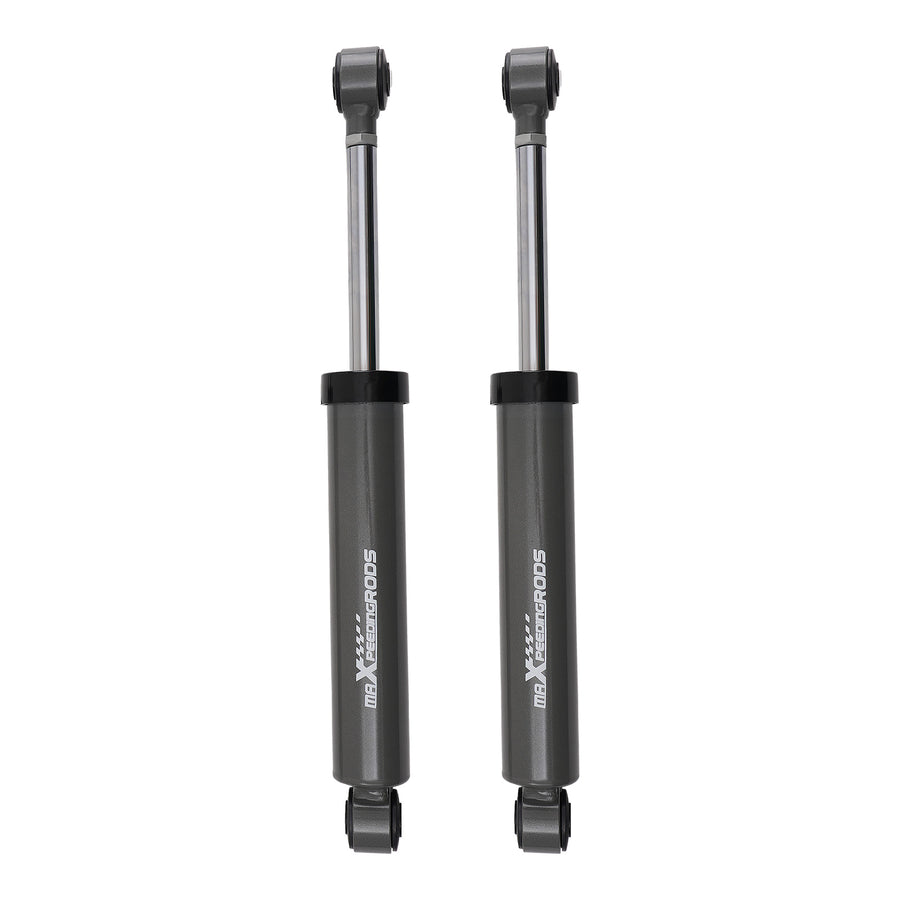

- shock feature
- Filled with nitrogen for better ride and handling
- Designed to improve performance and react quickly to changing road conditions
- Use high quality oil to ensure that the shock absorbers work well in different weather conditions

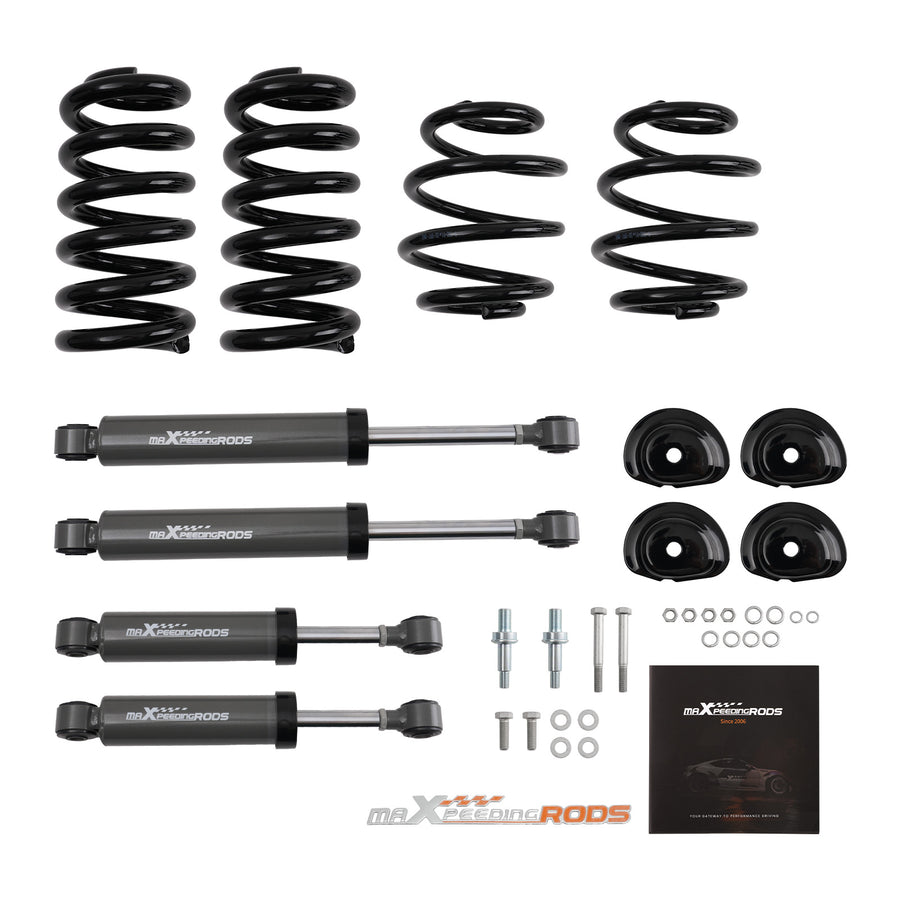

Package included
- 2 x Front Springs
- 2 x Front Shocks
- 2 x Rear Springs
- 2 x Rear Shocks
- 4 x Rear Spring Retainers
- Necessary Hardware
- Package dimension: 63*51*20 cm
- weight: 30.4 kg
