3.25 Lift Kit Complete compatible for Jeep Wrangler JK Unlimited 2007-2018 Front Rear

Compatible Vehicles

• For 2007-2010 2WD compatible for Jeep Wrangler JK Unlimited
• for 2007-2018 4WD compatible for Jeep Wrangler JK Unlimited
• NOTE:Does NOT fit 2-door models.
• If planning on running 35" tyres on factory wheels, double check clearance between the front tyre, lower control arm and sway-bar links.
• 2012-2018 models require exhaust modifications to clear the front driveshaft.

Specification

• Type：lift shock kit
• Lift Height：3.25"
• Material: High Tensile Strength Carbon Steel
• Spring Material：（55CrSi） steel
• Finish: Powder coated
• Bushing material: Rubber

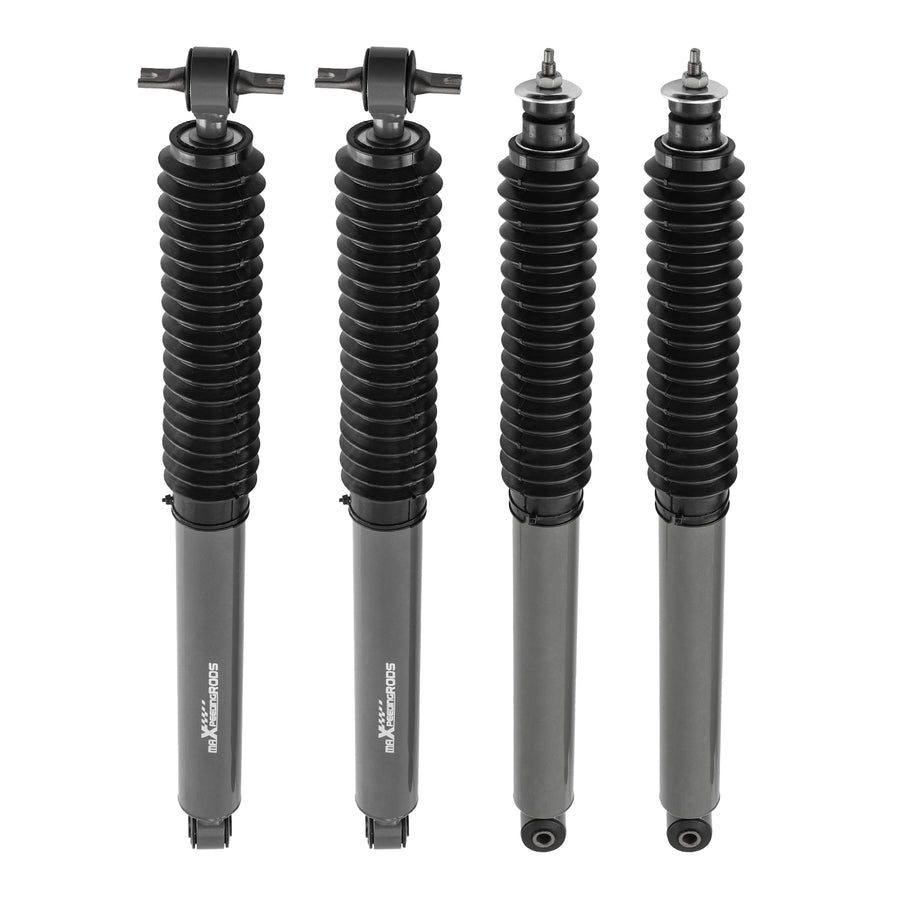

• Diameter of piston rod：F&R 18mm/0.71inch
• Piston diameter: F&R 35mm/1.38inch
• Outer cylinder diameter: F&R 54mm/2.13inch
• Travel Length: F 250mm/9.84inch; R 270mm/10.63inch
• Extended Length: F: 710mm/27.95inch; R: 680mm/26.77inch
• Collapsed Length: F: 460mm/18.11inch; R: 410mm/16.14inch
• Nitrogen charged：yes
• Dust cover equipped: yes

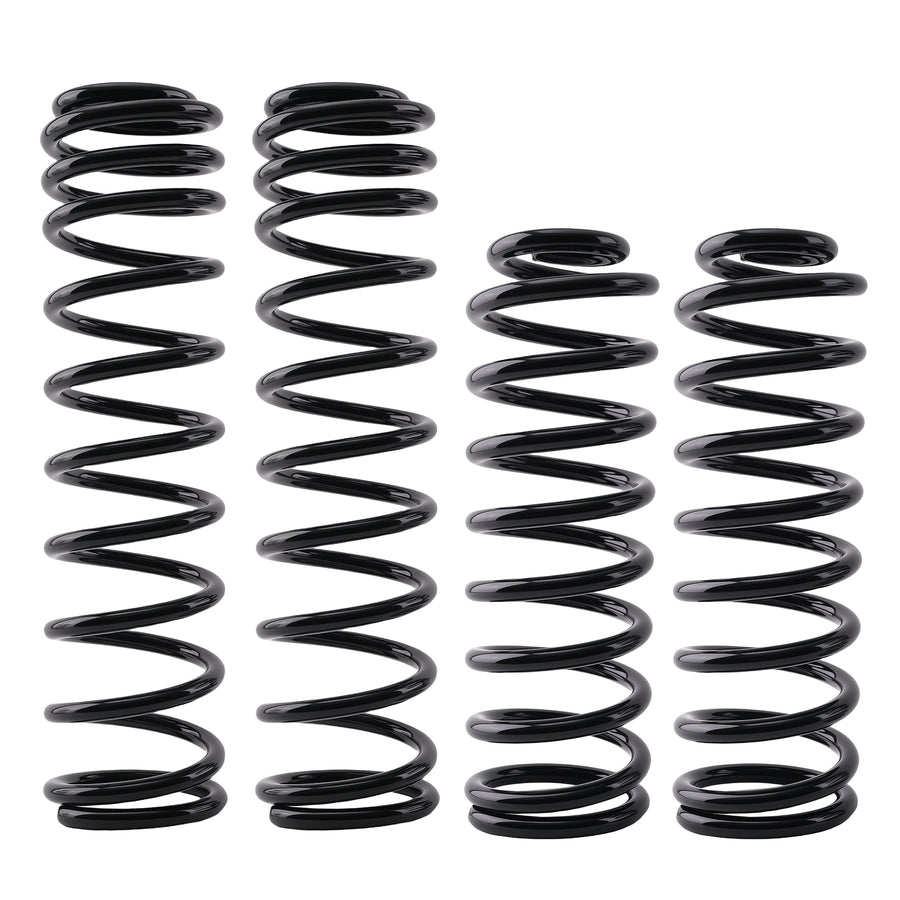

• Spring length: F: 500mm/19.69inch; R: 400mm/15.75inch
• Spring rate：F: 3kg/mm=168lb/in; R: 4 kg/mm=224lb/in
• Spring spacer thickness: F&R 19.05mm/0.75inch
• Spring spacer material: Nylon

Feature

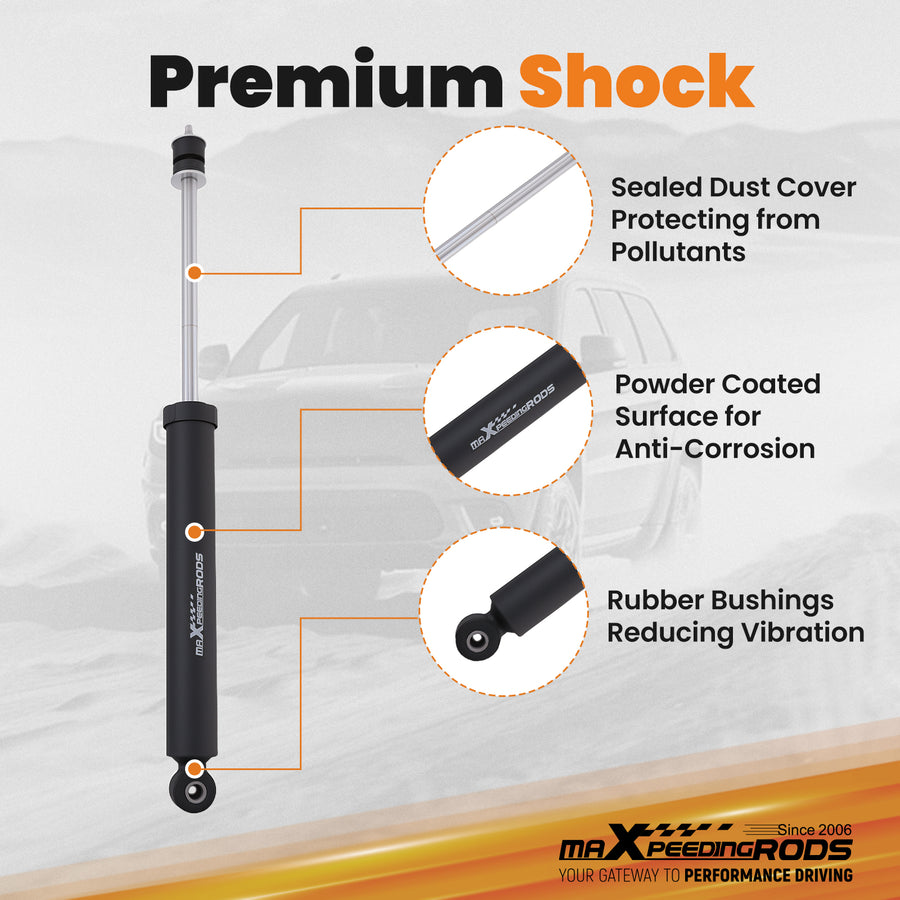

• *High-pressure nitrogen charged twin-tube shock absorber with high durability.
• *Rubber bushings for better absorption.
• *18mm Chromed Hardened Piston Rod.
• *35mm Diameter Sintered Iron Piston.
• *54mm Shock Body help Heat dissipation.
• *Precision Welding.
• *Improve your on and off-road ride.
• *Powder coated surface：provides superior corrosion resistance.
• *High Tensile Strength Carbon Steel for optimal durability and fitment.

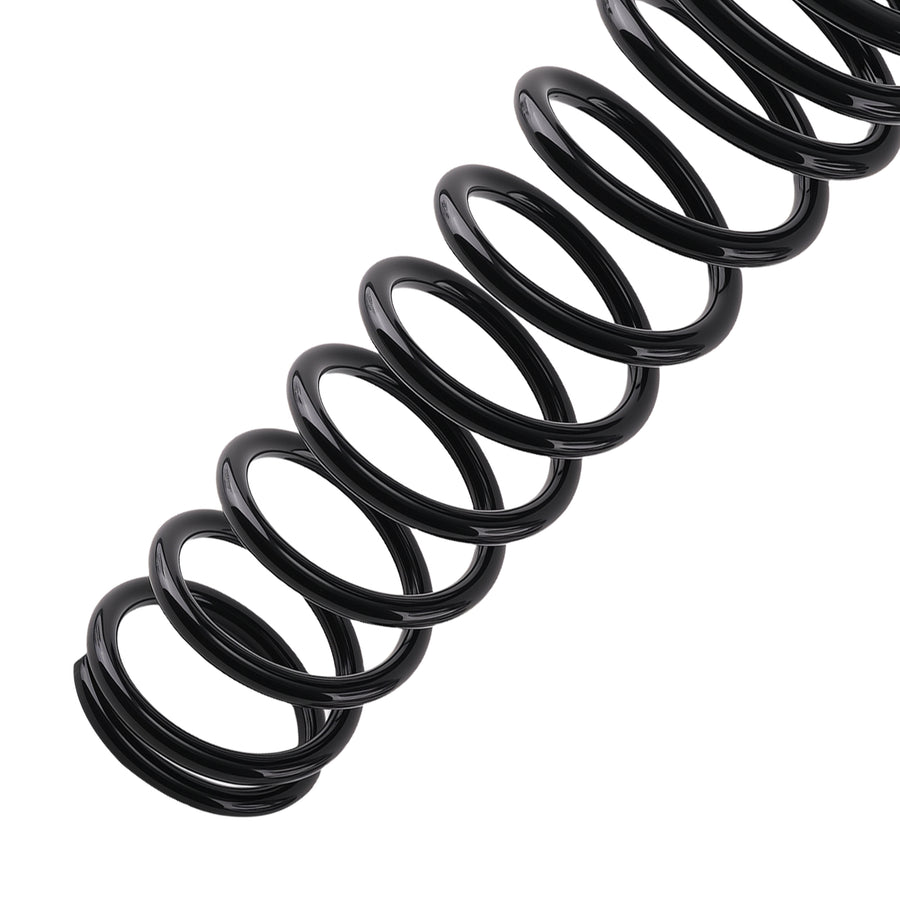

• *Chromium-silicon cold-wound structure with high tensile strength and resilience
• *Increased Ground Clearance – help your vehicle handle bumps and other obstacles on the road better.
• *Dust cover included prevent the shaft rod and oil seal from damaging.

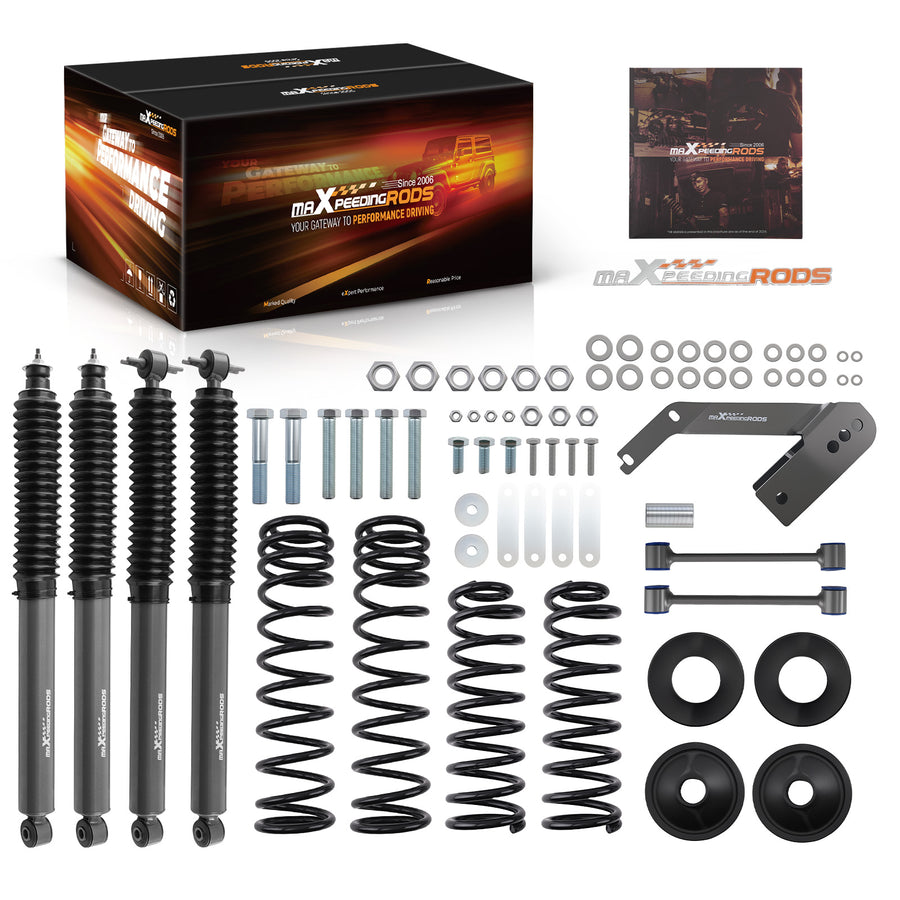

Package included

• 2x front spring spacers
• 2x rear spring spacers
• 2x front shocks
• 2x rear shocks
• 2x front springs
• 2x rear springs
• 1x compatible for Panhard rod bracket
• 2x Sway bar links
• Hardwares

轮胎尺寸

• Tyre Info:
• 35x12.50R17 17x9 5x5.0 12
• 35x12.50R17 17x9 5x5.0 6
• 35x12.50R18 18x9 5x5.0 12
• 35x12.50R18 18x9 5x5.0 6
• 35x12.50R20 20x9 5x5.0 12
• 35x12.50R20 20x9 5x5.0 6
