3.25 Lift Kit compatible for Jeep Wrangler JK 4-Door 2007-18 Coil Springs Shocks Bracket

Compatible Vehicles

• Compatible for Jeep Wrangler JK 4-Door  2WD/4WD 2007-2018

Introduction

• The suspension lift kit is designed to increase the ground clearance of the suspension, allowing the installation of larger tyres and enhancing the off-road quality of the car.
• High-pressure nitrogen-filled shocks that provide a wonderful blend of off-road action and smooth on-road ride quality.
• Featuring natural rubber bushings and corrosion resistant metallic paint.

Feature

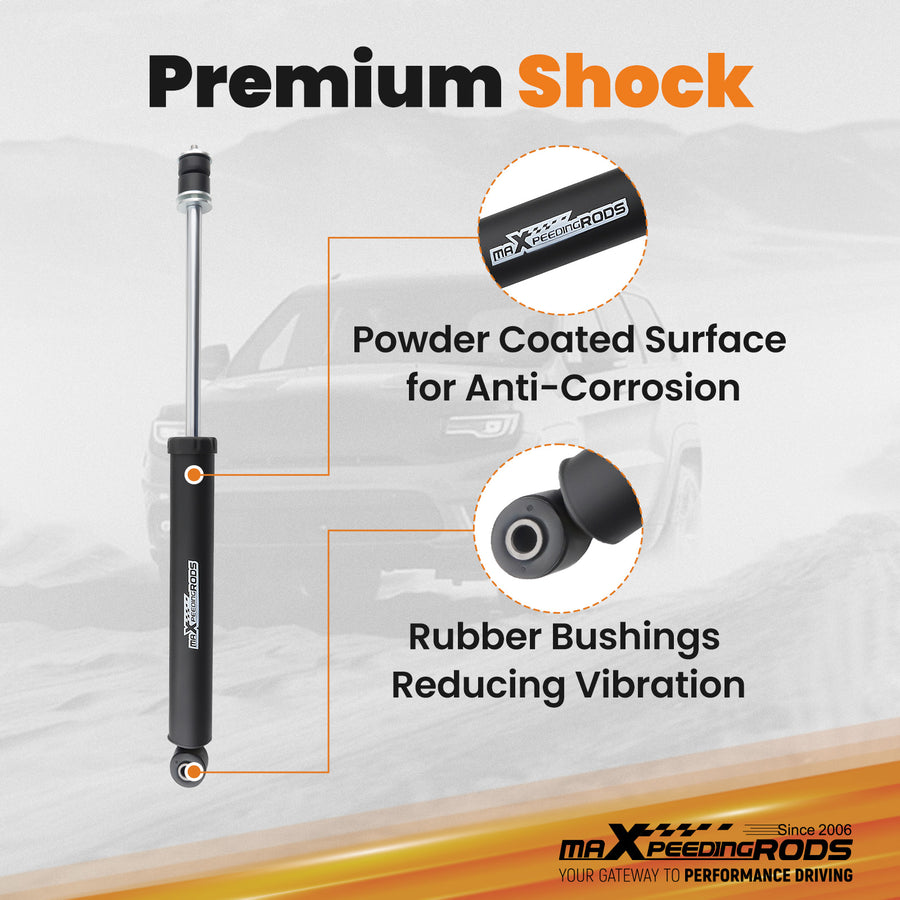

• High-pressure nitrogen charged twin-tube shock absorber with high durability.
• Rubber bushings for better absorption.
• 18mm Chromed Hardened Piston Rod.
• 32mm Diameter Sintered Iron Piston.
• 50mm Shock Body help Heat dissipation.
• Precision Welding.
• Improve your on and off-road ride.
• Powder coated surface：provides superior corrosion resistance.
• High Tensile Strength Carbon Steel for optimal durability and fitment.

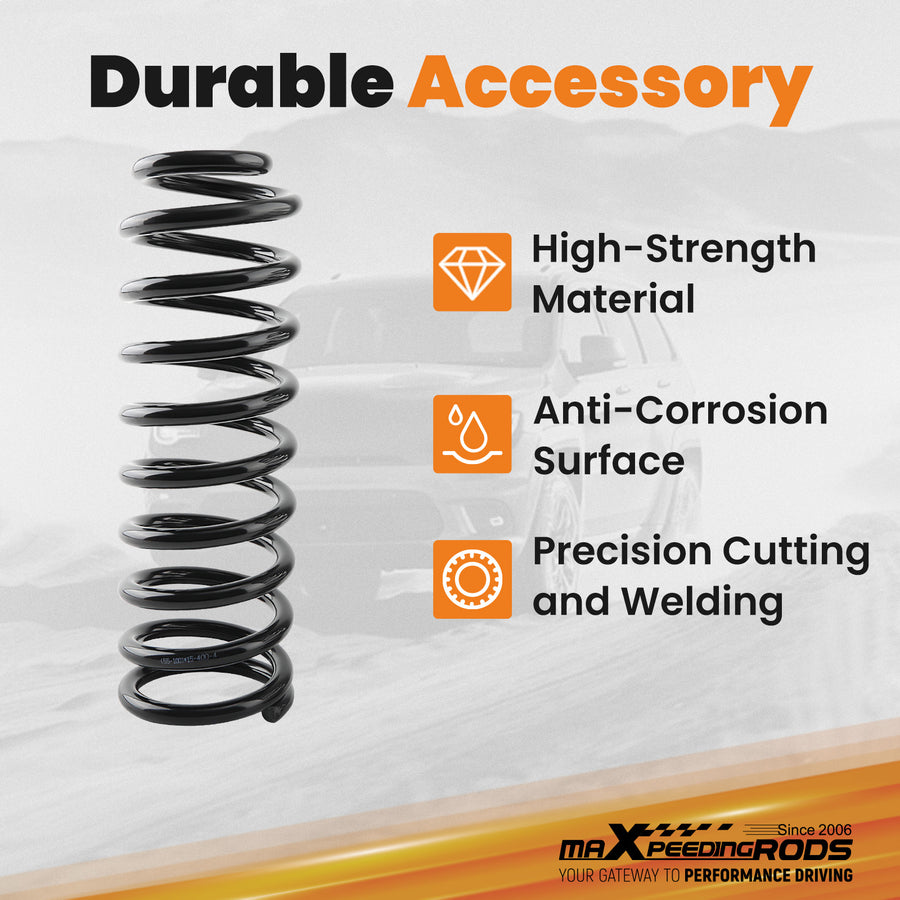

• Chromium-silicon cold-wound structure with high tensile strength and resilience
• Increased Ground Clearance –  help your vehicle handle bumps and other obstacles on the road better.

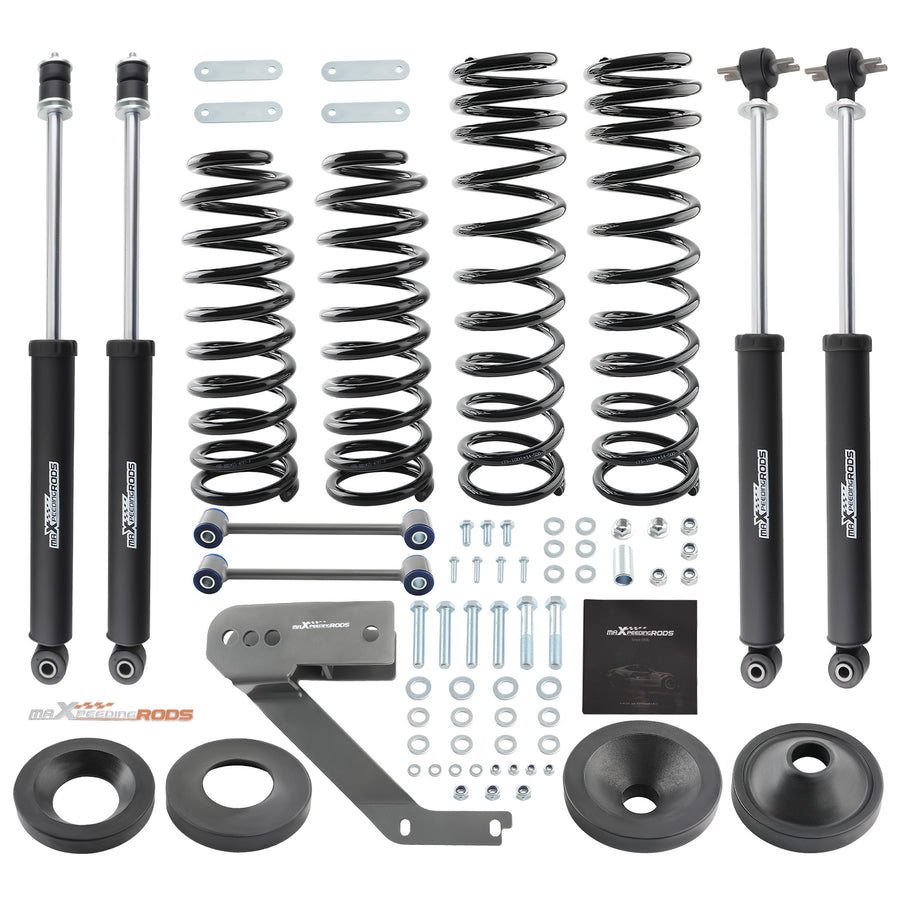

Package Includes

• 2x Front spring spacer (Nylon)
• 2x Rear spring spacer (Nylon)
• 2x Front shock (High Tensile Strength Carbon Steel)
• 2x Rear shock (High Tensile Strength Carbon Steel)
• 2x Front spring
• 2x Rear spring
• 1x compatible for Panhard rod bracket (Steel)
• 2x Sway bar link (Steel)
• Hardware (Steel)
• Package dimension: 70cm x 50cm x 35cm/27.56in x 19.69in x 13.78in

Type

Suspension lift kit

Finish

Powder coated

Bushing material

Rubber

Tire Info

• 35x12.50R17 17x9 5x5.0 12
• 35x12.50R17 17x9 5x5.0 6
• 35x12.50R18 18x9 5x5.0 12
• 35x12.50R18 18x9 5x5.0 6
• 35x12.50R20 20x9 5x5.0 12
• 35x12.50R20 20x9 5x5.0 6

Diameter of piston rod

Front & Rear 18mm/0.71inch

Piston diameter

Front & Rear 32mm/1.26inch

Outer cylinder diameter

Front & Rear 50mm/1.97inch

Travel Length

• Front & Rear 250mm/9.84inch
• Extended Length: Front 700mm/27.56inch; Rear 680mm/26.77inch
• Collapsed Length: Front 450mm/17.72inch; Rear 430mm/16.93inch

Nitrogen charged

• Yes
• Spring length: Front 500mm/19.69inch; Rear 400mm/15.75inch
• Spring rate：Front 3kg/mm=168lb/in; Rear 4 kg/mm=224lb/in

Spring spacer thickness

Front & Rear 19.05mm/0.75inch

Spring spacer material

Nylon

Spring material

55CrSi

Weight

• 44.11Kg/97.25Lb
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
