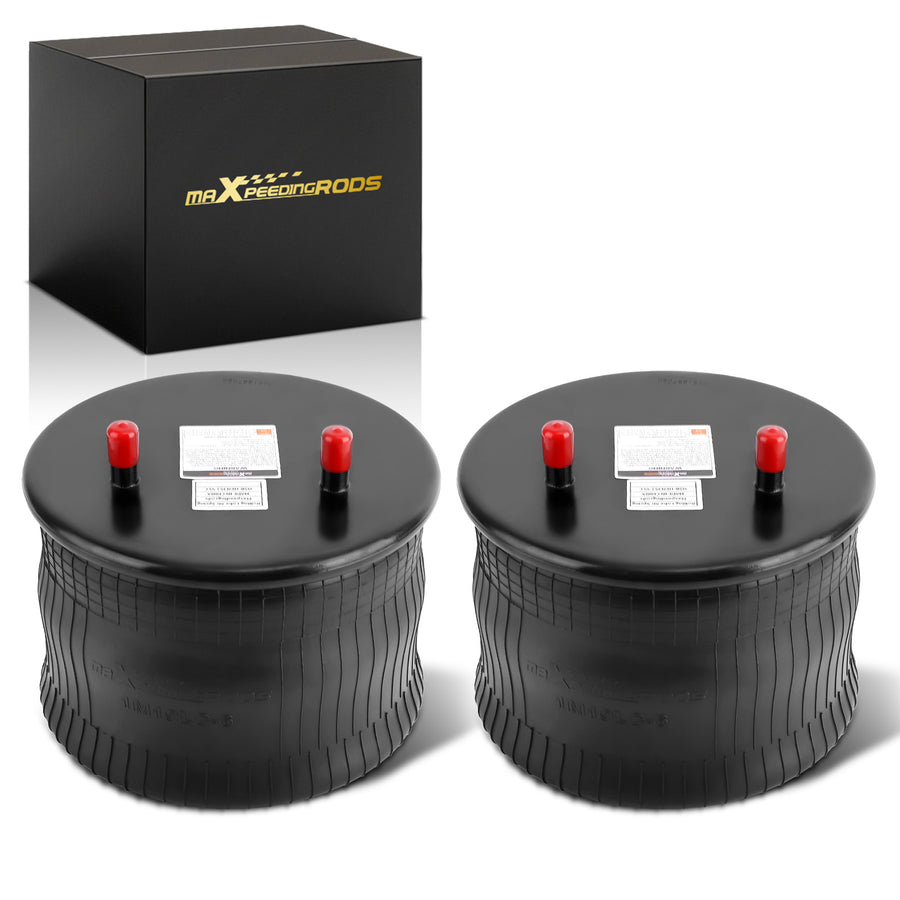

2x Air Suspension Bags for Firestone W01-358-8091 compatible for Hendrickson S20901 S-20901

Compatible Vehicles

• Firestone W01-358-8091 compatible for Hendrickson S20901 S-20901

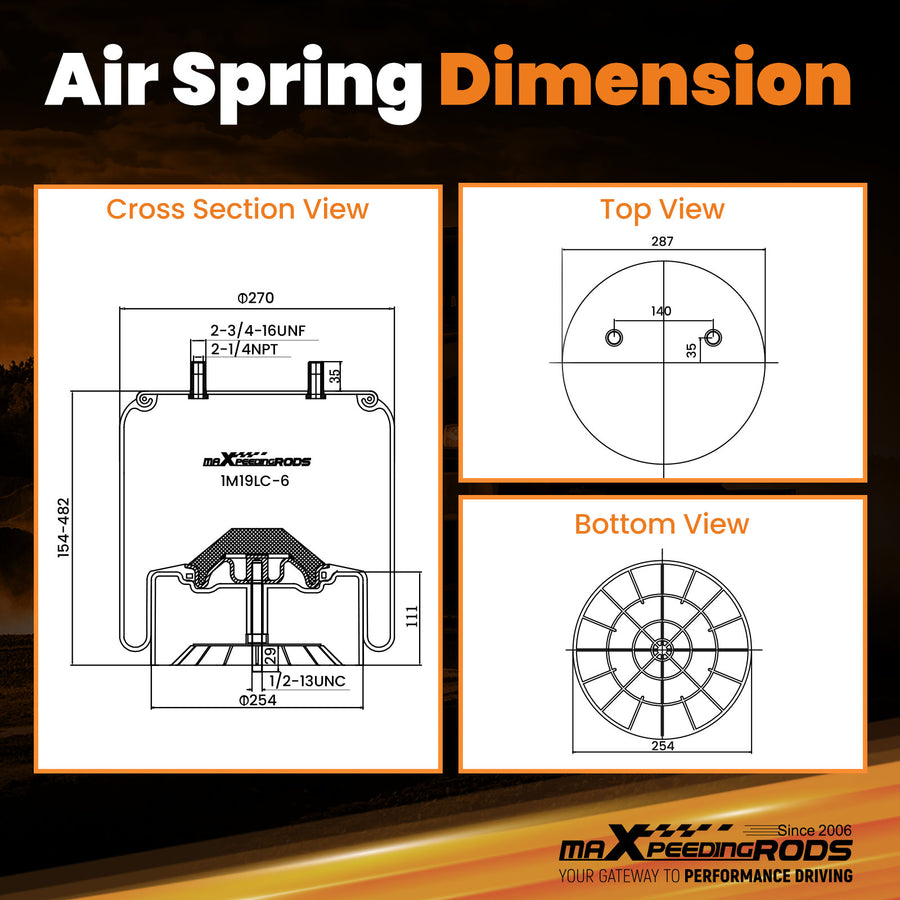

Specification

• Top plate screw (nut) teeth: 2 X 3/8-16UNF
• The screw centre distance of the top cover plate: 140 mm / 5.5 inch
• Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
• Air hole/air inlet: 1/4 NPT
• Top plate diameter: 287mm / 11.3inch
• Diameter of the bottom cover: 254mm / 10inch
• Stroke: from 154mm/6.1inch to 482mm/9inch
• Intern Jounce Bumper: Included
• Quantity: 2 Pieces
• Condition: Brand New
• Material: Natural rubber
• Package Length, width and height: 73*44*36cm/28.7*17.3*14.2inch
• Package Wight: 22.9 Kg/50.9 LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.
• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-358-8091,
• replacement for ContiTech 1110.5A-16P523, 64421
• replacement for Goodyear 1R14093, 1R14-093, 1R14171, 1R14-171
• replacement for Navistar 1R14-242
• compatible for Hendrickson S20901, S-20901, S21784, S-21784, C20901,C-20901
• Other parts number:
• fit for Ridewell: 1000156
• for Road Choice: AS8091
• Compatible for Taurus 6398
• for Triangle AS-8523
• for TRP AS80910
• for Meritor A2258P1576
