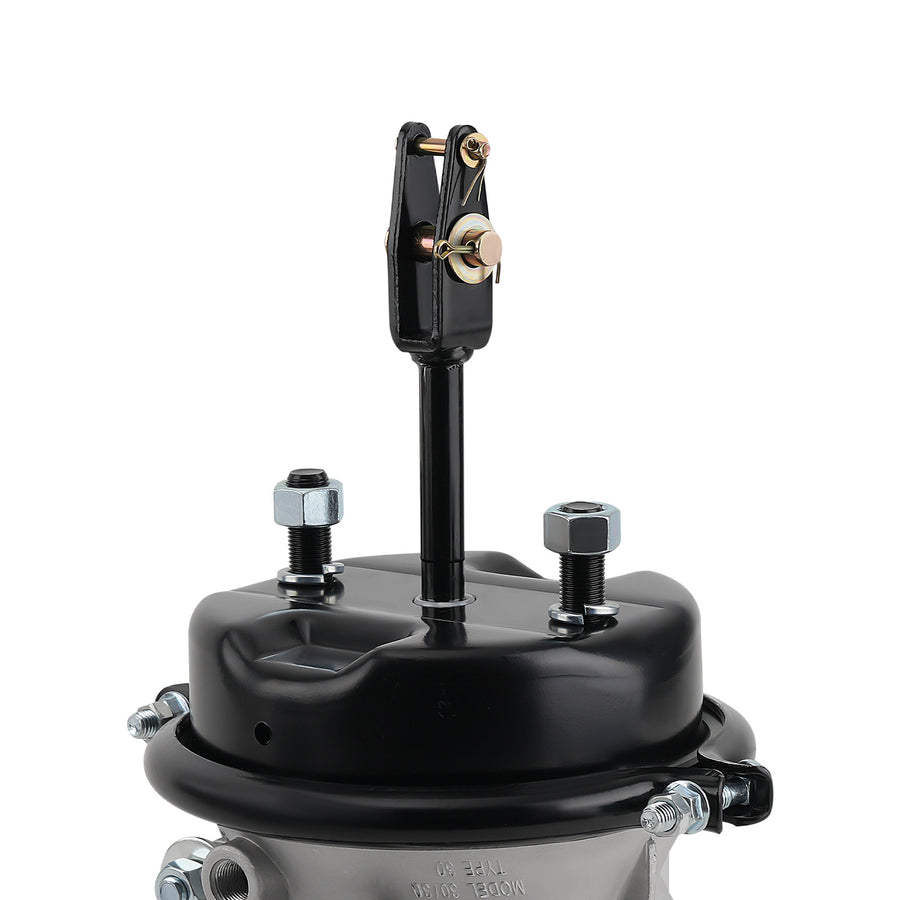

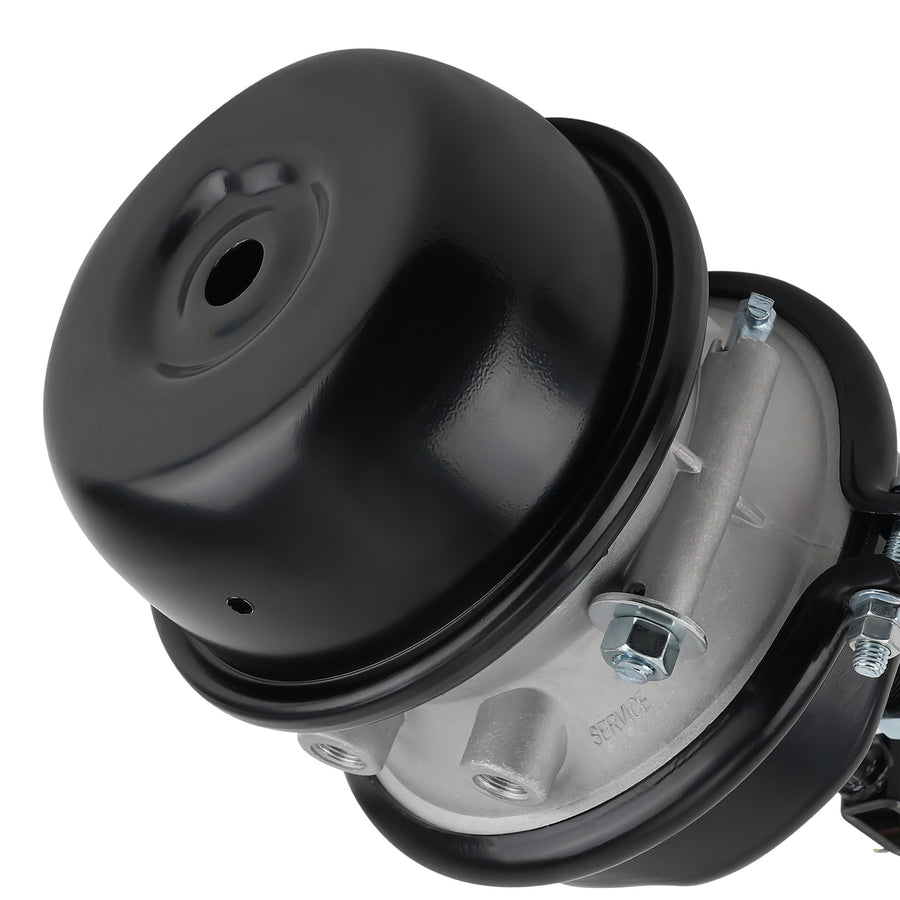

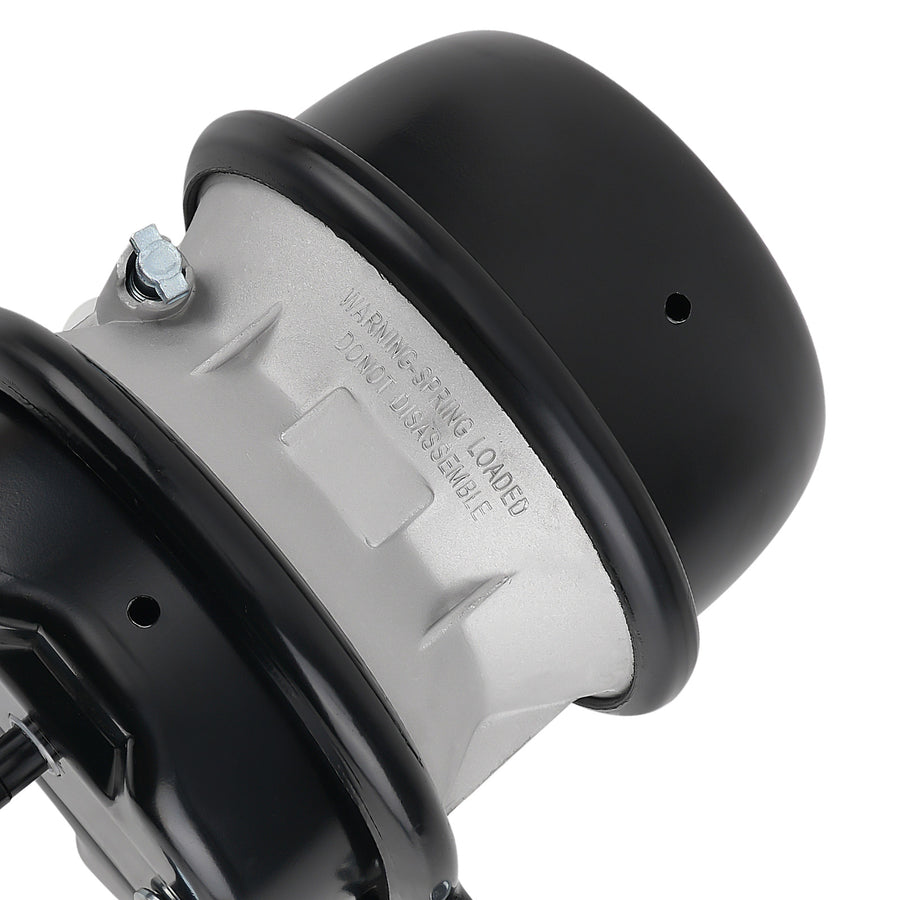

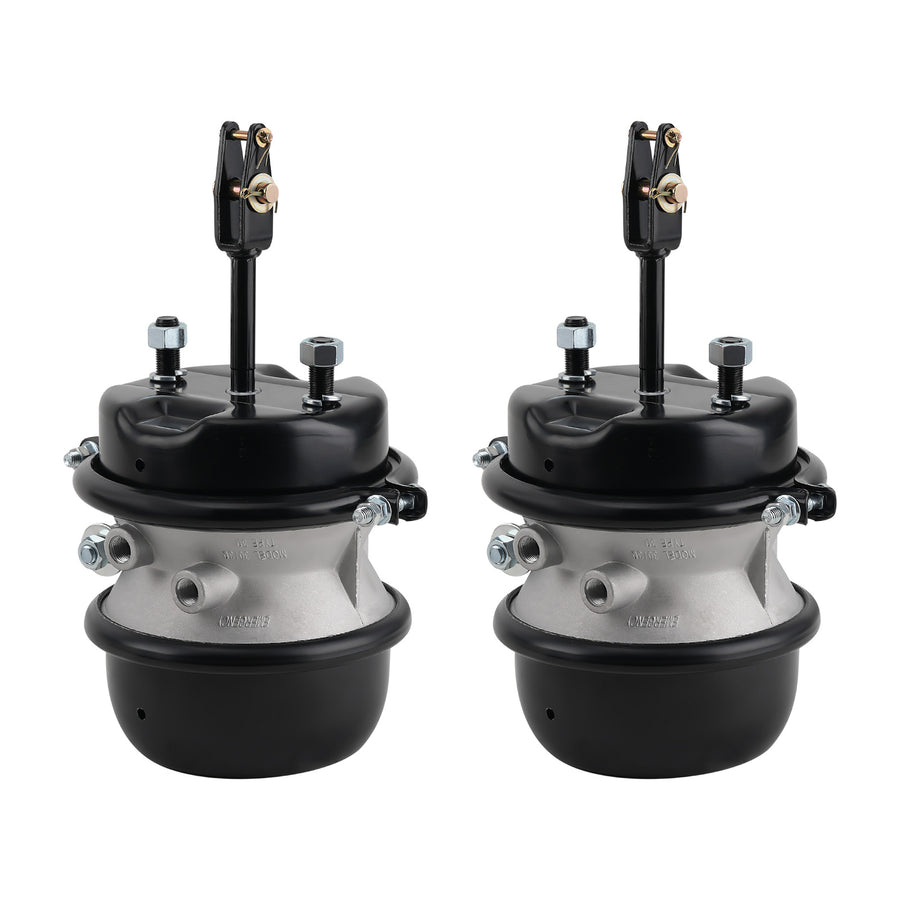

2x Air Brake Chamber Sealed 2 64mm Type 3030 Stroke 30x30 30/30 GC3030S4CW

Compatible Vehicles

• For Bendix: K129605, K067114,
• For Haldex: GC3030CW, GC3030S4CW,
• For Others: BTS-3030-WCR, GTA-3030-WCR

Specification

• Condition : New
• Actuator Type Size : 3030
• Stroke Type : Standard
• Available Stroke : 2-1/2", 64mm
• Length from mounting bracket to the end of Spring Housing : 9", 229mm
• Length of Piggyback : 6-13/16", 173mm
• Dimension at rolled Spring Housing flange : 8-5/16", 211mm
• Dimension at Service Clampband : 10-3/16", 259mm
• Pushrod Length from the face of Service Housing : 1"
• Distance to Clevis Pin centerline from the face of Service Housing : 2-1/4"
• Weight : 21.3 lbs. , 9.7 kg.
• Packaging Type: Box
• Fitment Type: Direct Replacement

Feature

• - High-Quality Torque Air Brake Chamber Type 30/30 Welded Clevis
• - Package includes 4 Air Brake Chambers
• - Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
• - Double O-ring Centre seal; Two o-rings for positive sealing and plastic bearings for long life
• - World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
• - Rugged Service Housing; 9 gauge steel, powder-coated
• - Self-piloting Dust Shield
• - Sizes to fit all drum brake applications

Note

• ●Please confirm your vehicle condition and OE number before placing an order!
• ●Please note that this is an after-sales part, not an original part.
• ●We suggest that you seek professional installation to avoid unnecessary trouble.
• ●If you have any questions, please contact us.

OE/Part number

• BTS-3030-WCR,
• GTA-3030-WCR,
• GC3030CW,
• GC3030S4CW,
• K129605,K067114,
• BTS3030WCR,
• GTA3030WCR
