Compatible Vehicles
- Compatible for BMW 1-Series (E82/E88) 2008-2013
Introduction
-B3 is based on -B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to dial in your coil-over setup. You will experience better ride quality in all road conditions.
Specification
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Available
- Height adjustable: Yes, lowering 1-3 inches depending on the vehicle models
- Spring Rate Front: 8kg/mm(448lbs/in)
- Spring Rate Rear: 12kg/mm(672lbs/in)
- Front spring inner diameter: 70.5mm
- Rear spring inner diameter: 62mm
- Spring length Front: 180mm
- Spring length Rear: 230mm
- Spring Preload advised: 7-10 mm
- Colour: Golden body with black spring
Dimension
- Package dimension: 71*51*20
- Weight: 26020g
Feature

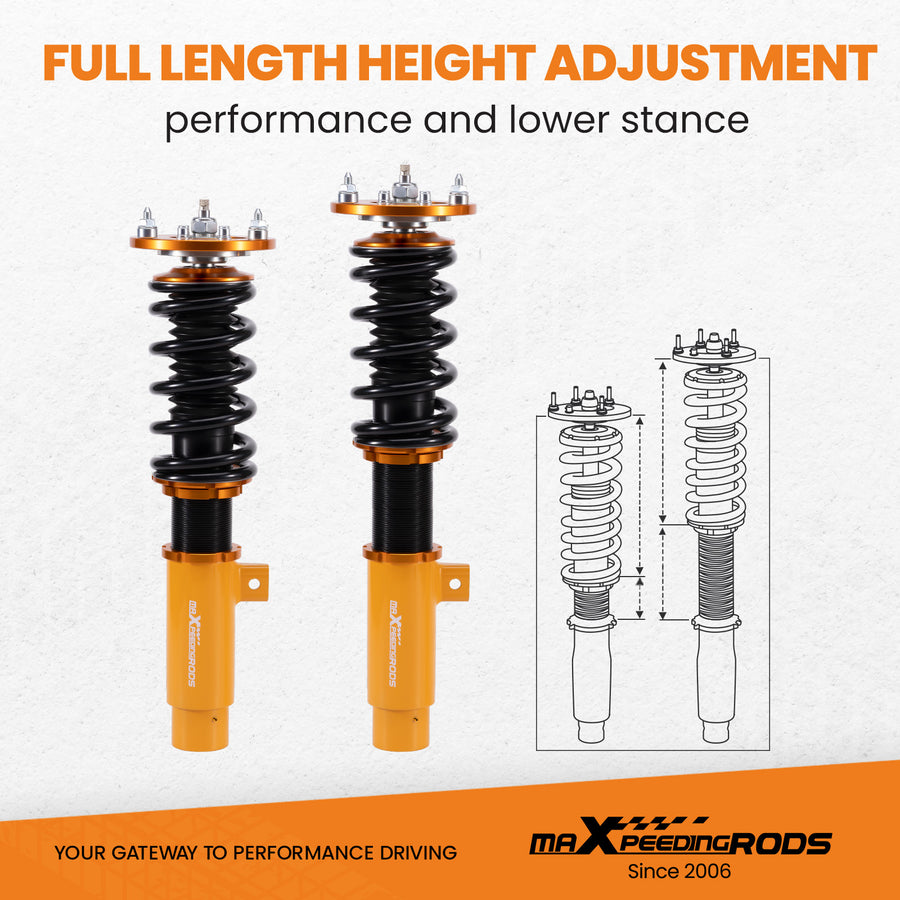

- 1. Lowered height adjustment from 1" - 3" (depends on vehicle models) which allows a lower centre of gravity and also adds a more aggressive stance
- 2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
- 5. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight

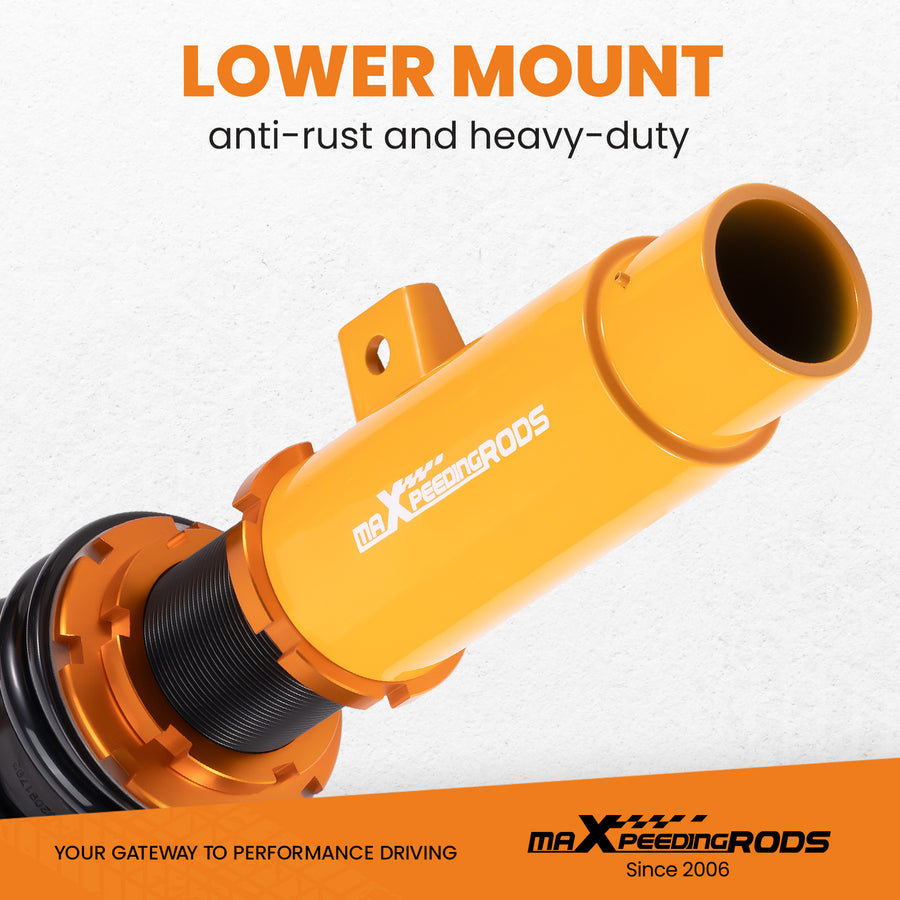

- 6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
- 7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
- 8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
- 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts

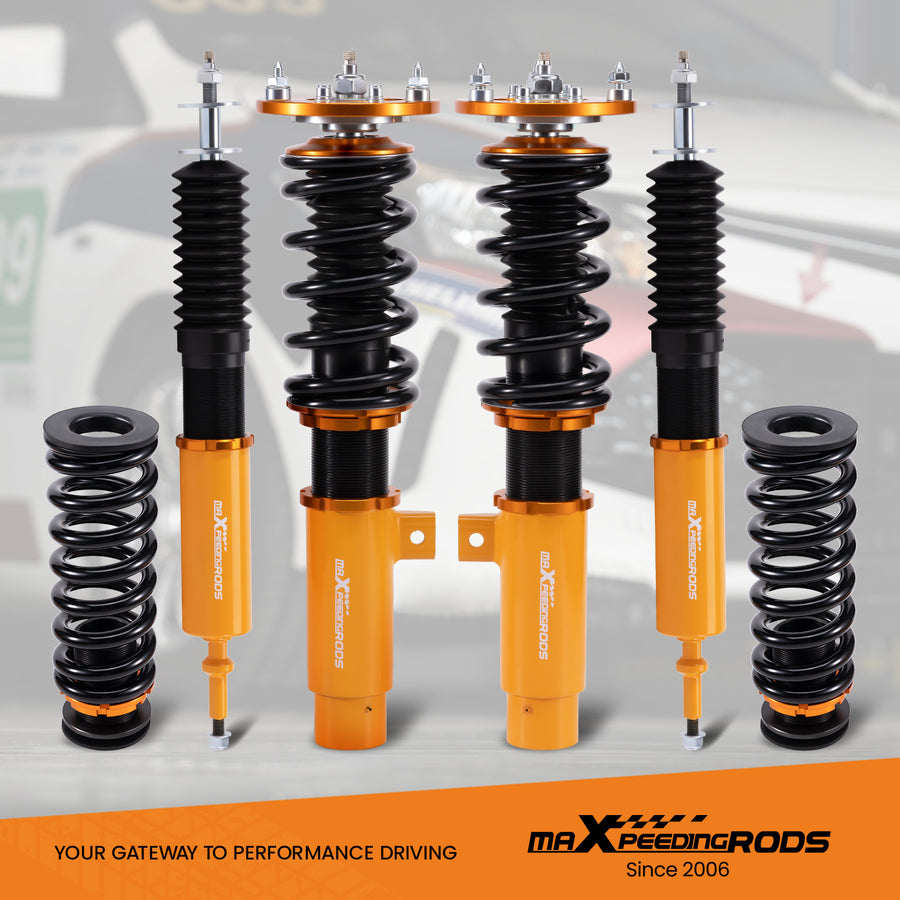

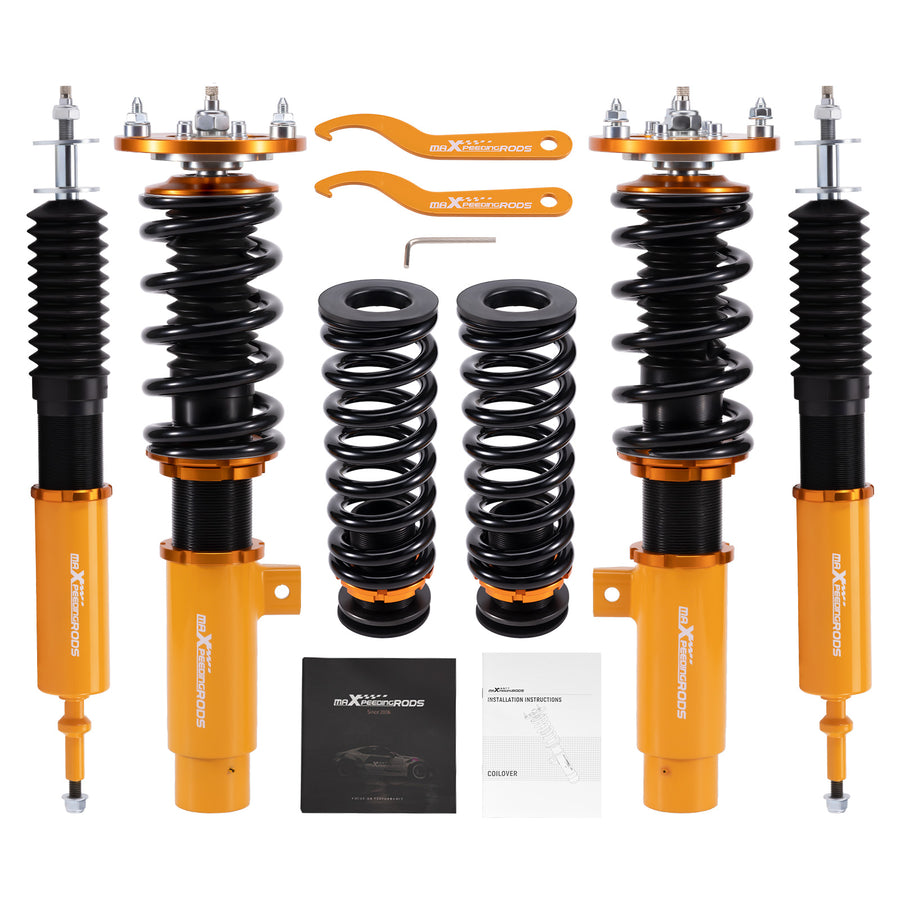

Package included
- 2x front coil-overs
- 2x rear coil-overs
- 1x Allen wrench
- 2x C spanners
