Compatible Vehicles
- Compatible for Mitsubishi Eclipse 4th Gen (DK2A/DK4A) 2006–2012
- compatible for Mitsubishi Galant 9th Gen (DJ) 2004-2012 North America (US / Canada)
- Compatible for Mitsubishi 380 (DB) 2005-2008 (Australia and New Zealand)
Introduction
MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.
Specification
- Front top mount: Pillow ball with camber plate
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Available, front only
- Height adjustable: Yes, lowering 25-75mm
- depending on the vehicle models
- Spring Rate Front: 7 kg/mm(392lbs/in)
- Spring Rate Rear: 6 kg/mm(336lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 200 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Colour: Golden body with black spring
Dimension
- Package size : 60*50*20cm
- Weight: 26200g
Feature
- 1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower centre of gravity and also adds a more aggressive stance
- 2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

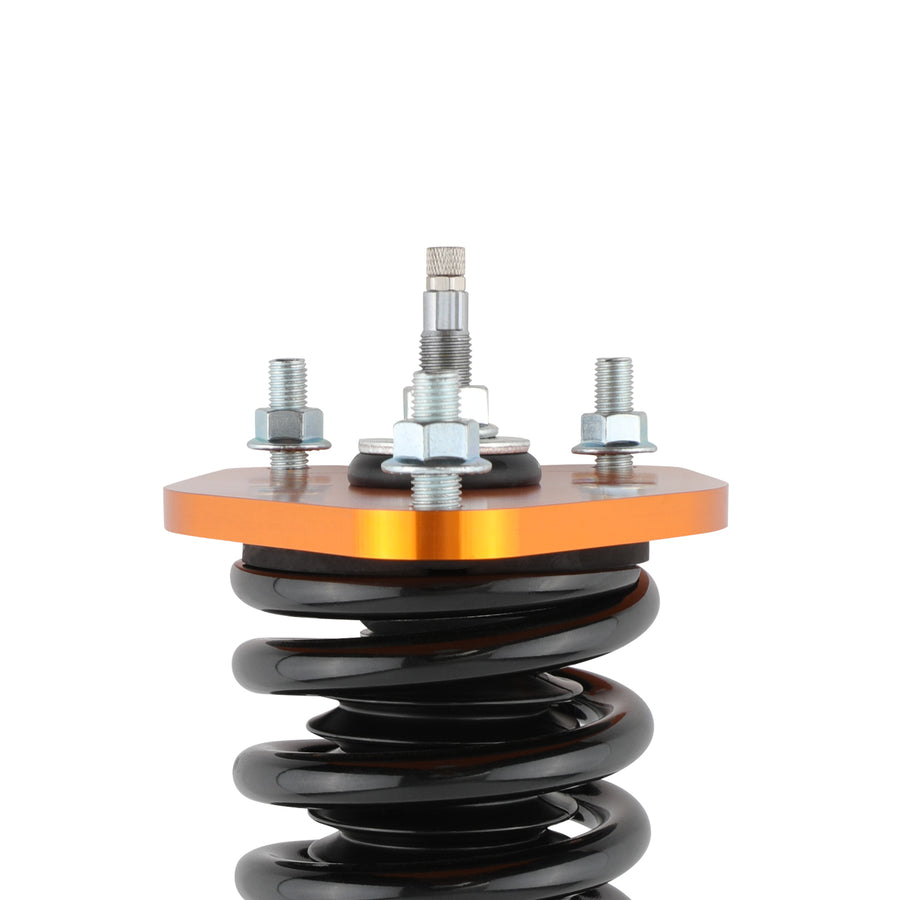

- 4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
- 5. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight

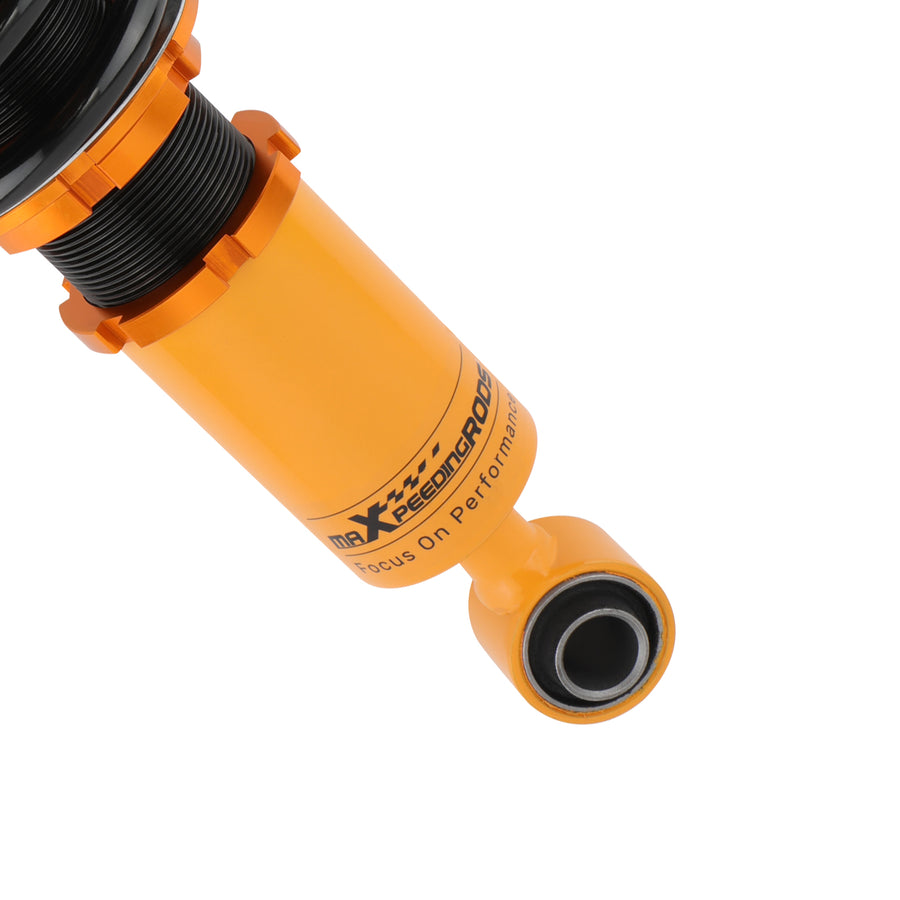

- 6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

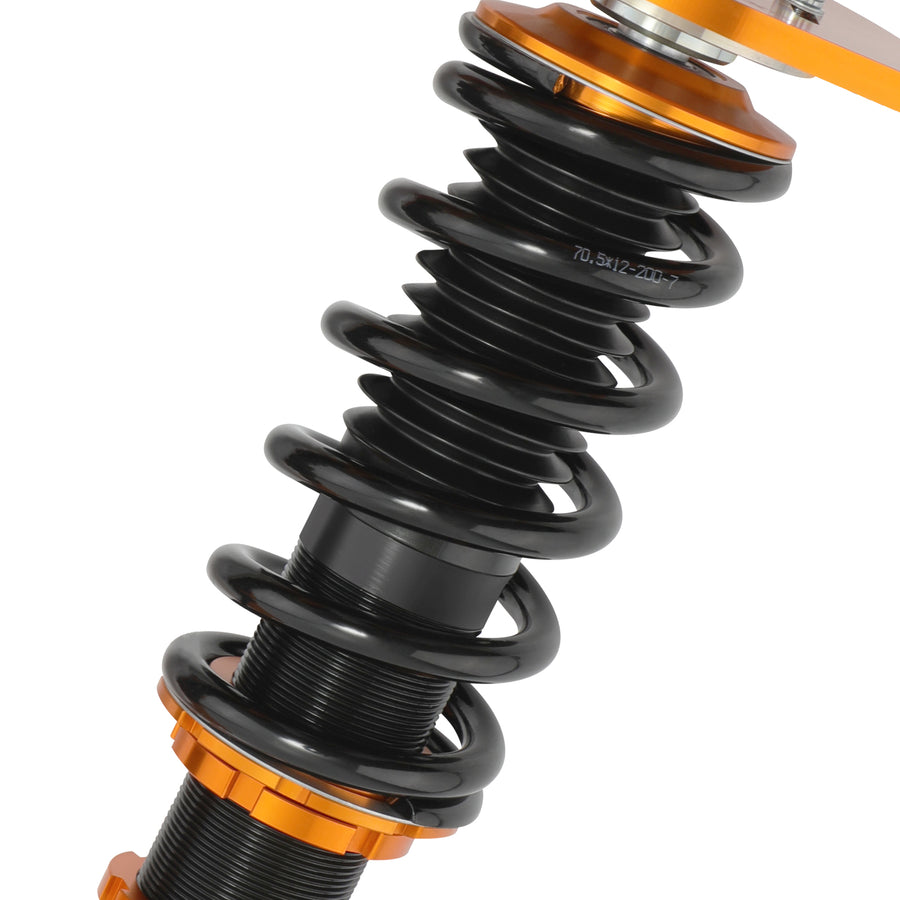

- 7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
- 8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
- 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts
Package included
- Package included：

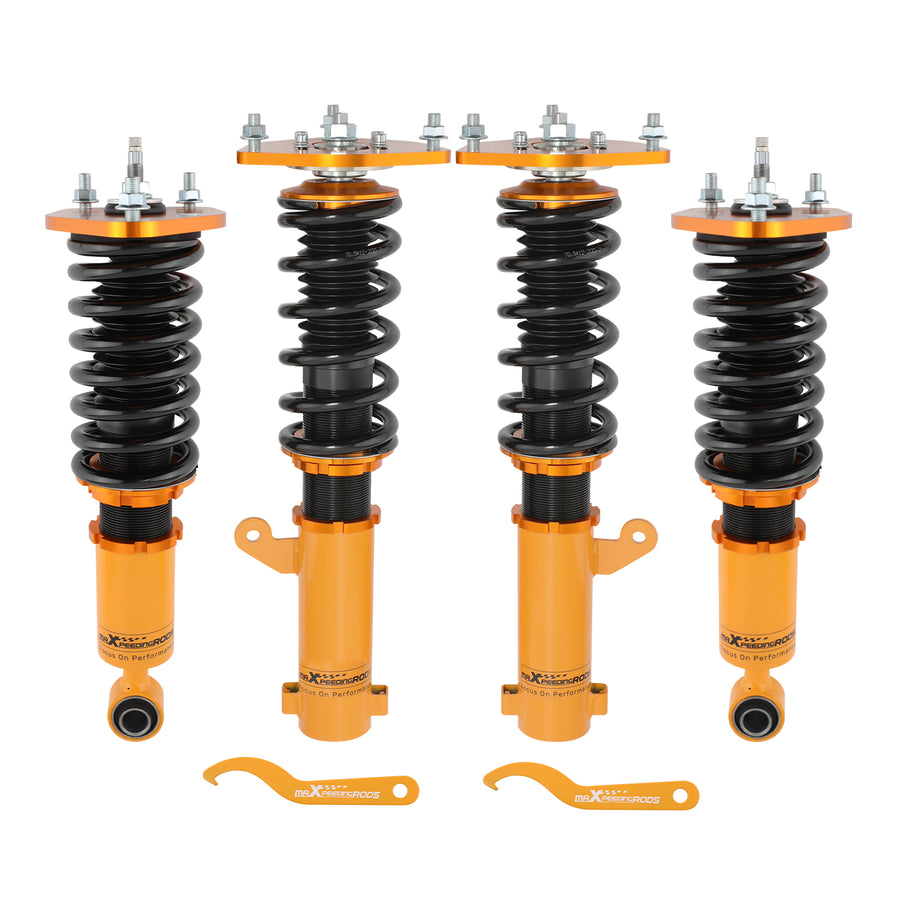

- 1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
- 1 x Pair of wrenches for height adjustment
