Compatible Vehicles
- Compatible for Mercedes-Benz C-Class W205 4MATIC (AWD) Sedan 2015–2021, Models: C300 / C400 / C450 AMG / C43 AMG
- compatible for Mercedes-Benz C-Class C205 Coupe & A205 Convertible 4MATIC (AWD) 2017–2023, Models: C300 / C400 /C43 AMG
- Note: Excludes AMG C63, ADS electronic suspension & self-levelling suspension, RWD models.
Introduction
T6 lowering coil-over features adjustable rebound damping, independent height adjustment without changing spring preload, application-specific damping oil, and performance-oriented springs. Selected applications also feature adjustable camber plates. These features provide additional suspension adjustment options for ride height, damping, and alignment settings, while supporting a customised vehicle appearance. All coil-overs are assembled in a controlled production environment to help minimize exposure to dust and contaminants during assembly.
Specification
- Front top mount: Standard rubber
- Rear top mount: OE top mount required
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Camber adjustable: Not available
- Spring rate Front: 14 kg/mm (784 lbs/in)
- Spring rate Rear: 9.5 kg/mm (532 lbs/in)
- Front spring inner diameter: 72 mm
- Rear spring inner diameter: 72 mm
- Spring length Front: 240 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Colour: Black body with blue spring
Dimension
- Package size : 70*50*20 cm
- Weight: 30050 g
Feature
- 1. Lowered height adjustment from 25-75mm which allows a lower centre of gravity and also adds a more aggressive stance
- 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 4. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 5. Heavy‑duty steel lower mounts designed for secure installation.
- 6. Upgraded spring --- more than 300,000 times continuously test to assure its high tensile strength.
- 7. All inserts come with pre-fitted long rubber boots for enhanced damper protection against dust, dirt, and debris.
- 8. With a better-damping setting, you will get better performance and comfort at the same time.
- 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10. Anti-corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts
- 11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
- 12. Components are assembled in a controlled clean‑room environment to minimise particulate contamination, with attention to assembly‑level.
- 13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

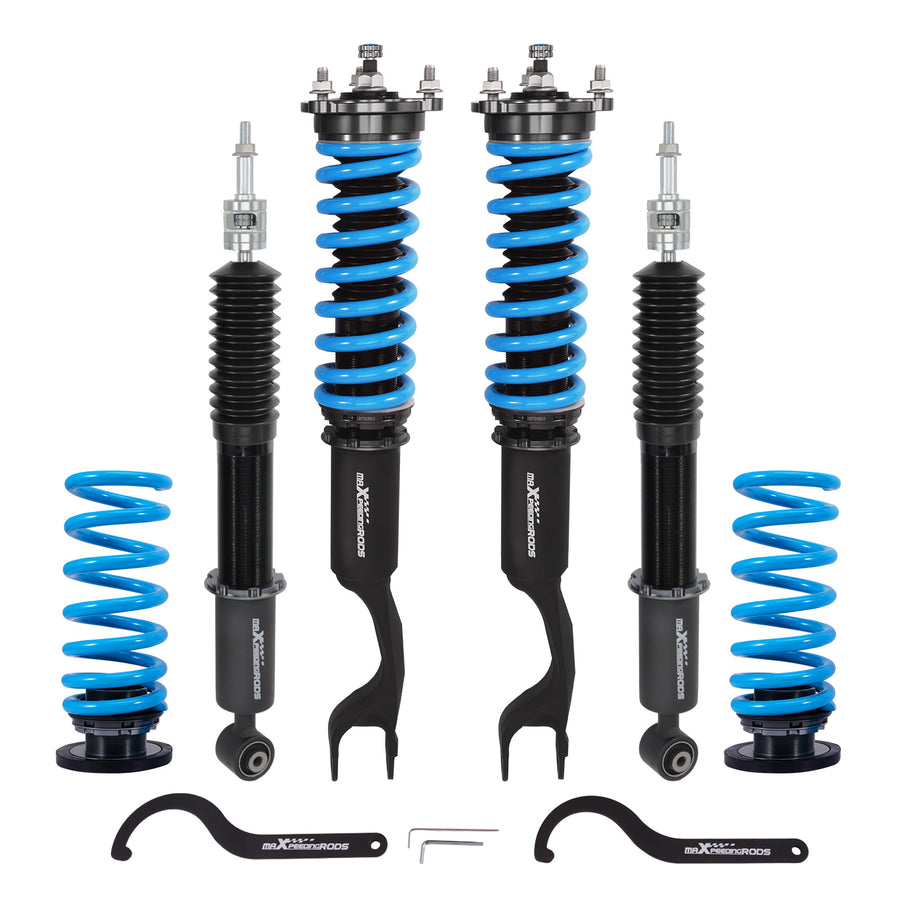

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x Allen wrench
- 2x C spanners
- 1x sticker
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.
