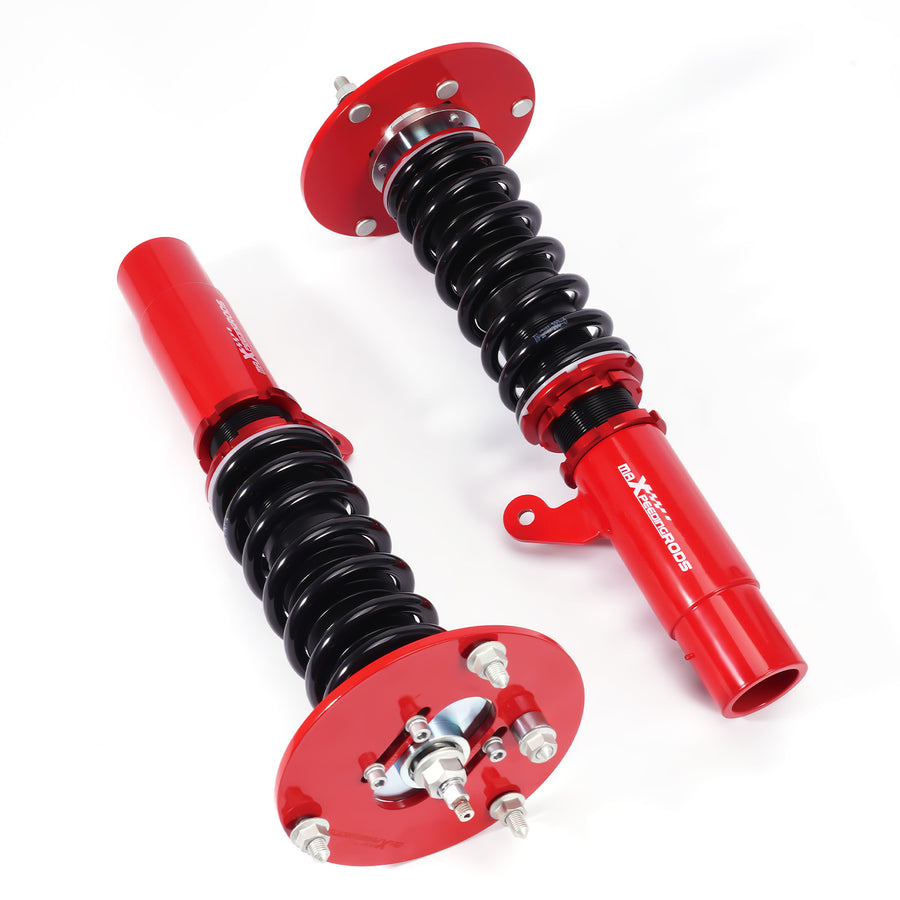

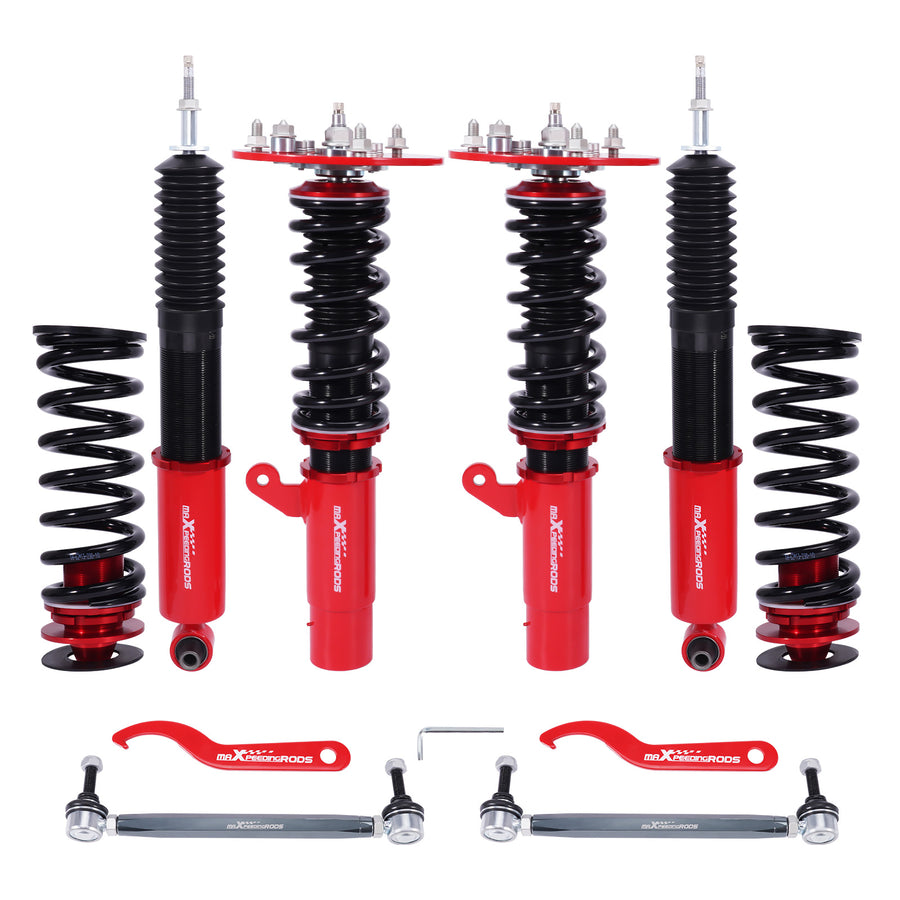

24 WAY COILOVER Suspension KIT compatible for BMW 3 SERIES F30 / 4-Series F32 F33 F36 AWD

Compatible Vehicles

• BMW 3 SERIES F30 / 4-Series F32 F33 F36 AWD

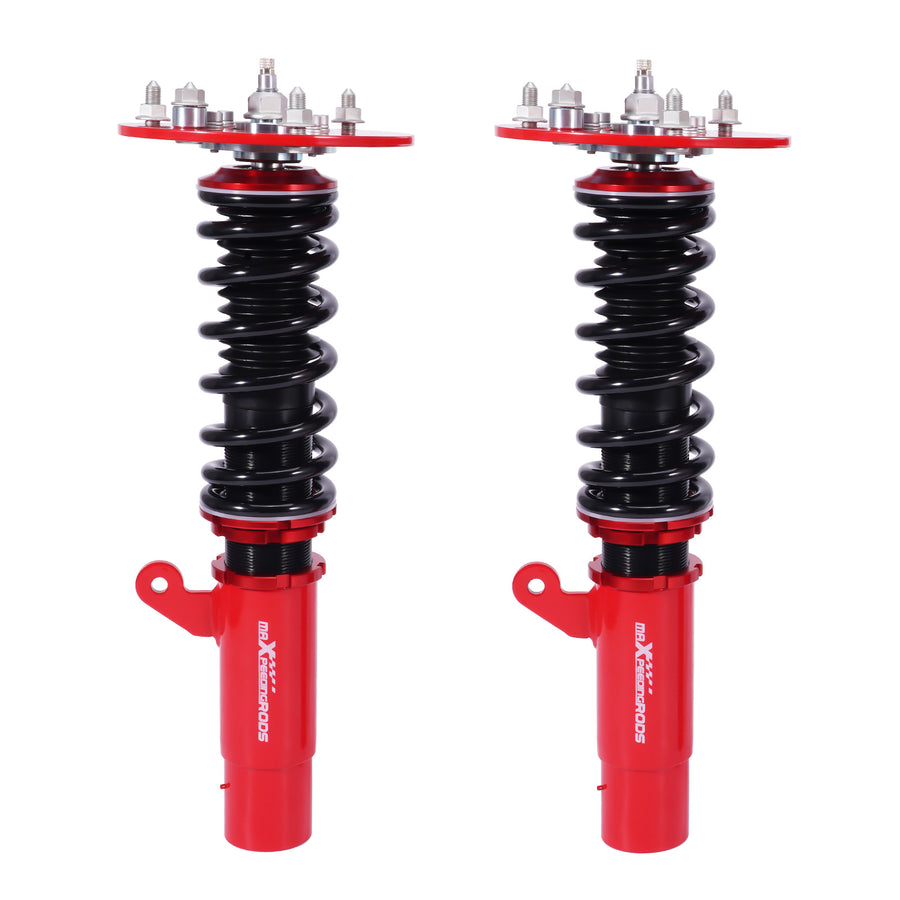

Front top mount

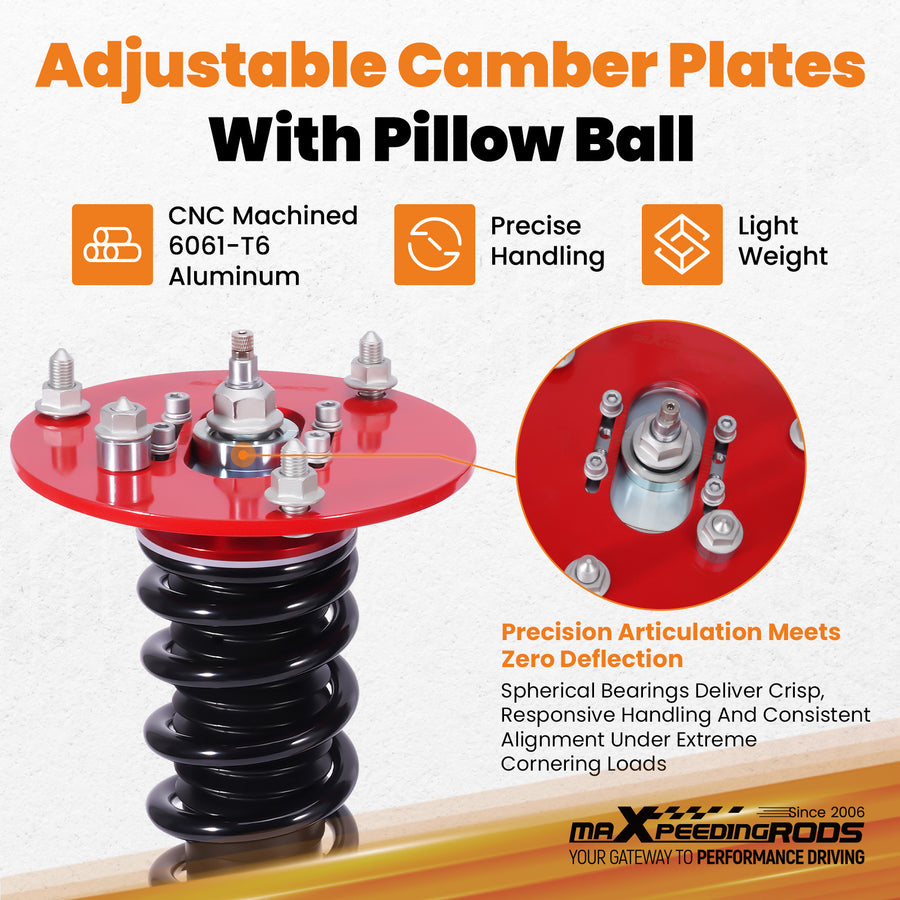

Pillow ball with camber plate

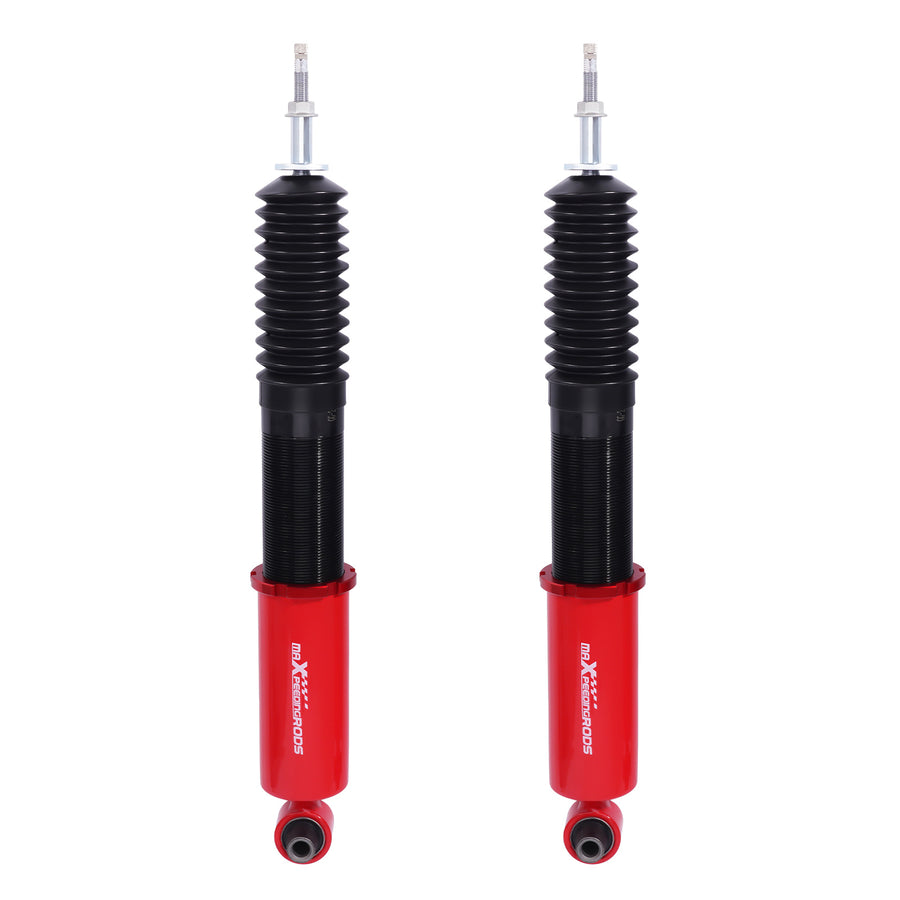

Rear top mount

• Standard rubber
• Damping adjustable: Available, 24 levels of rebound damping force

Camber adjustable

• Available
• Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front

6 kg/mm (336 lbs/in)

Spring rate Rear

10 kg/mm (230 lbs/in)

Front spring inner diameter

62 mm

Rear spring inner diameter

62 mm

Spring length Front

200 mm

Spring length Rear

230 mm

Spring Preload advised

7-10 mm

Damping rod diameter Front

Φ22 mm

Damping rod diameter Rear

• Φ12.5 mm
• Damping  thread Front: M55×2 mm
• Damping  thread Rear: M55×2 mm
• Twin -tube Diameter Front: 55 mm
• Twin -tube Diameter Rear: 55 mm

Rod End Thread Front

M14×1.5 mm

Rod End Thread Rear

• M10×1.25 mm
• Coil-overs overall length Front: 381 mm - 458mm / 15.00"-18.00"
• Coil-overs  overall length Rear: 525 mm - 611 mm / 20.67"-24.05"
