Compatible Vehicles
- Compatible for Jeep Wrangler JK Unlimited 2WD 2007-2010
- Compatible for Jeep Wrangler JK Unlimited 4WD 2007-2018
- Fits 4DR
Introduction
- The suspension lift kit designed to increase the ground clearance of the suspension, allowing the installation of larger tyres and enhancing the off-road performance of the car.
- High-pressure nitrogen-filled shocks that provide a wonderful blend of off-road action and smooth on-road ride quality.
- Featuring natural rubber bushings and corrosion resistant metallic silver paint.
Feature
- Metallic silver paint
- High-strength, CNC machined
- Easy bolt-on installation
- Levels the front with the rear of the vehicle
- Increased ground clearance.
- Factory tuned coil springs are based on the stock spring rate.
Placement on Vehicle
- Front, Rear, Left, Right
- Front Shock Extended Length (in): 27.55inch
- Front Shock Collapsed Length (in): 17.7inch
- Rear Shock Extended Length (in): 26.77inch
- Rear Shock Collapsed Length (in): 16.9inch
Tire Info
- 285/75R17 Factory 17 5x5.0
- 33x12.50R17 17x9 5x5.0 +0
- 33x12.50R17 17x9 5x5.0 +1
- 33x12.50R17 17x9 5x5.0 12
- 33x12.50R18 18x9 5x5.0 +0
- 33x12.50R18 18x9 5x5.0 +1
- 33x12.50R18 18x9 5x5.0 12
- 33x12.50R20 20x9 5x5.0 +0
- 33x12.50R20 20x9 5x5.0 +1
- 33x12.50R20 20x9 5x5.0 12
- 35x12.50R17 17x9 5x5.0 +0
- 35x12.50R17 17x9 5x5.0 +1
- 35x12.50R18 18x9 5x5.0 +0
- 35x12.50R18 18x9 5x5.0 +1
- 35x12.50R20 20x9 5x5.0 +0
- 35x12.50R20 20x9 5x5.0 +1
- If you run factory wheels, you will need to add 1.5in wheel spacers

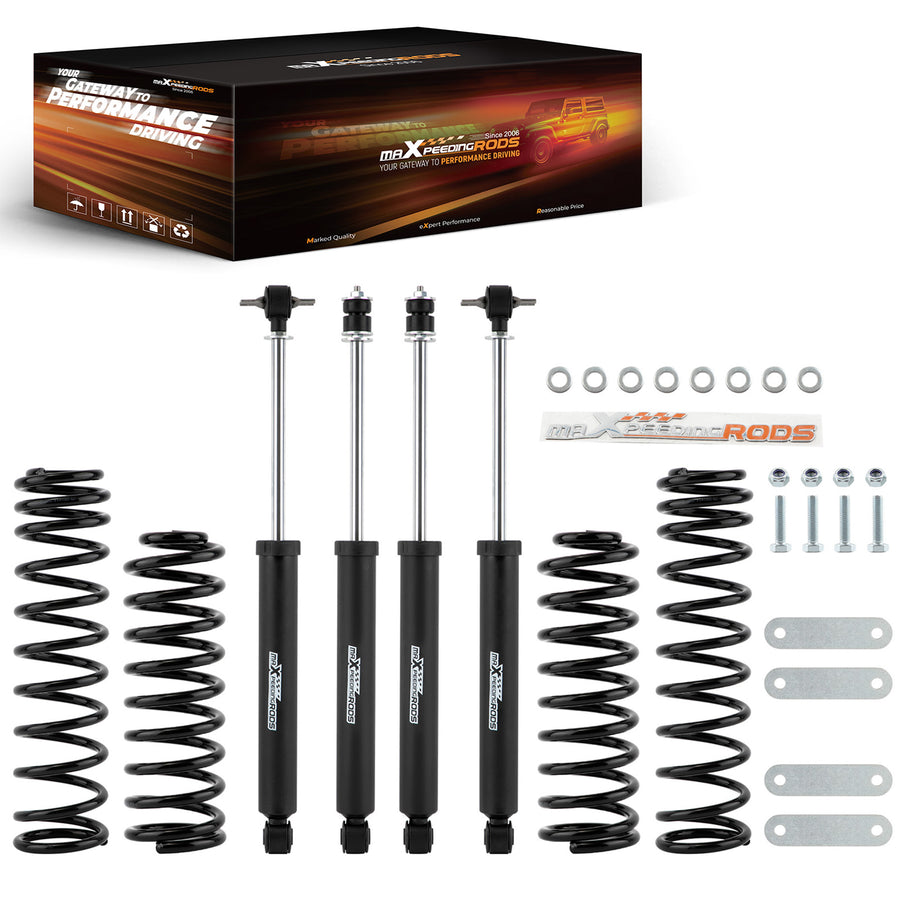

Front
2.5" lifted coil springs.
Rear
- 2.5" lifted coil springs.
- 4x Brake line relocation brackets

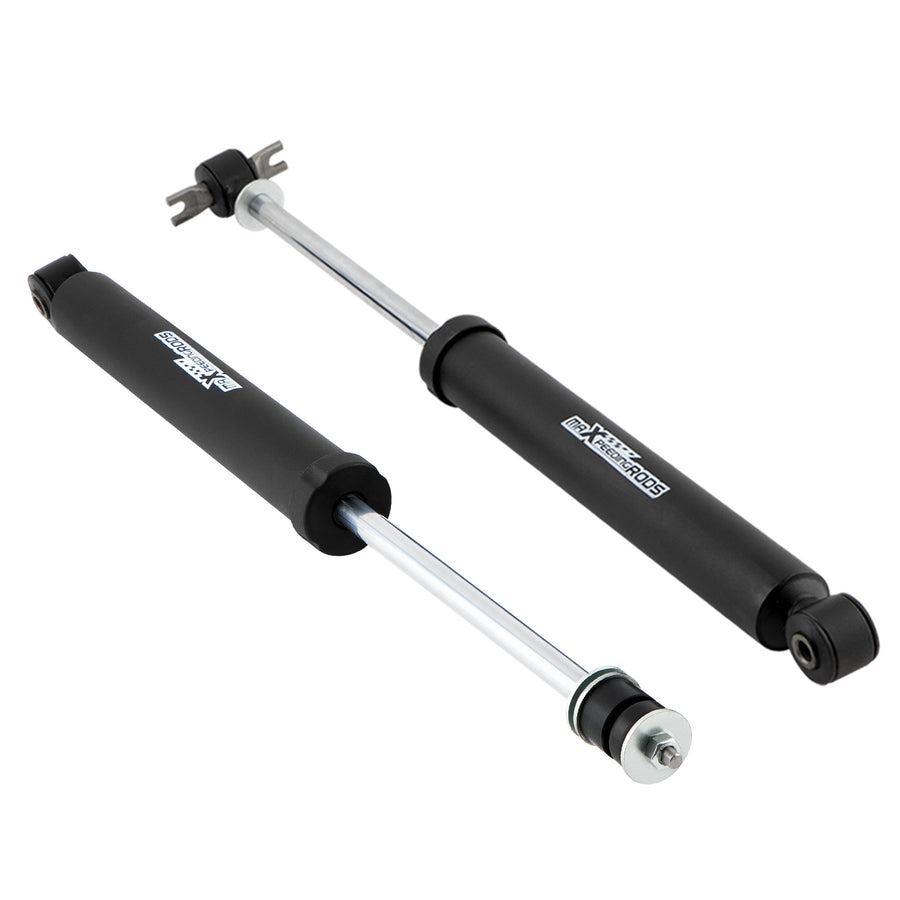

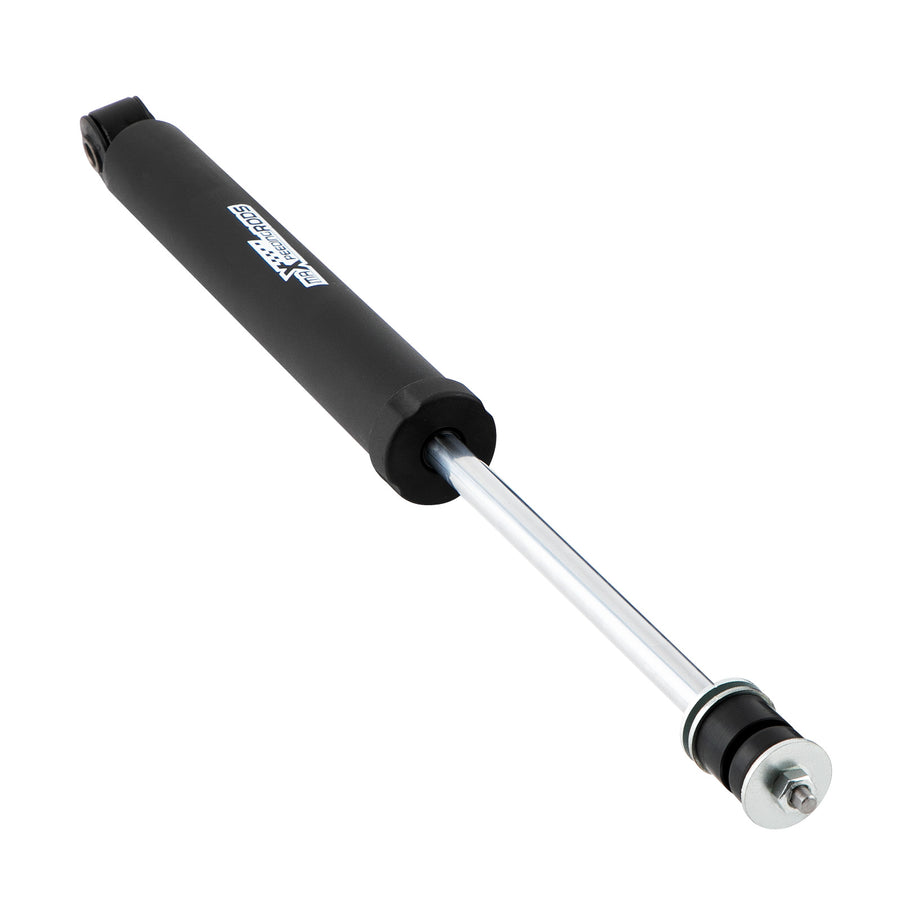

- 4x Premium shocks.
- Just as Picture Showed
Notes
- 35" tyres will clear but rubbing may occur w/ extreme articulation
- If running 35" tyres on factory wheels, check clearance with the front tyre, lower control arm and sway-bar links.
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
