2.4L 2AZFE Cylinder Head Assembly w/ Timing Chain Kit compatible for Toyota Camry Scion tC

Compatible Vehicles

• For Cylinder Head:
• Compatible for Toyota RAV4 2.0L 1998CC L4 DOHC, Eng Code "1AZFE" 2001-2003
• Compatible for Toyota RAV4 2.4L 2362CC L4 DOHC, Eng Code "2AZFE" 2005-2008
• Compatible for Toyota Camry 2.4L 2362CC L4 DOHC, Eng Code "2AZFE"  2002-2006
• Compatible for Toyota Highlander 2.4L 2362CC L4 DOHC, Eng Code "2AZFE"  2001-2007
• Compatible for Toyota Solara 2.4L 2362CC L4 DOHC, Eng Code "2AZFE"  2002-2008
• Compatible for Scion tC 2.4L 2362CC L4 DOHC, Eng Code "2AZFE"  2005-2010
• Compatible for Scion xB 2.4L 2362CC L4 DOHC, Eng Code "2AZFE"  2008-2009
• For Timing Chain Kit:
• Compatible for Scion tC 2.4L 2398CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2005-2006
• Compatible for Toyota Camry 2.4L 2362CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2007-2009
• Compatible for Toyota Camry 2.4L 2362CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2002-2009
• Compatible for Toyota Corolla 2.4L 2362CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2009
• Compatible for Toyota Highlander 2.4L 2362CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2006-2007
• Compatible for Toyota Matrix 2.4L 2362CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2009
• Compatible for Toyota Rav4 2.0L 1998CC 122CID L4 DOHC, (16 Valve), Eng Code "1AZFE" 2001-2003
• Compatible for Toyota Rav4 2.4L 2362CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2004-2008
• Compatible for Toyota Solara 2.4L 2362CC L4 DOHC, (16 Valve), Eng Code "2AZFE" 2006-2008

Note

• * Please double check the fitment details and photos before ordering.
• * No Instruction Included, professional installation is highly recommended.
• <div

OE/Part number

• For Cylinder Head:
• 1110128010, 1110128011, 111010H010, 1110128012
• 111010H011, 111010H021, 111010H040, 11101-28010
• 11101-28011, 11101-0H010, 11101-28012, 11101-0H011
• 11101-0H021, 11101-0H040, HS26232PT
• For Timing Chain Kit:

Fitment Type

Direct Replacement

Condition

Brand New

Timing Chain

13506-28011, 13507-28010

Guide

• 13559-28010, 13561-28010
• Sprocket: 13523-22020, 13519-28010, 13521-28010, 15163-28010

VVT

13050-28021

Tensioner

• 13540-28010, 13549-28010
• Cylinder Head Specification:

Type

Timing Chain Kit

Material

Steel/Aluminium/Plastic

Engine Code

• 1AZ-FE, 1AZ-FSE, 2AZ-FE, 2AZFE
• Timing Chain Kit Specification:

Placement on Vehicle

Front

Number of Chain Links

134

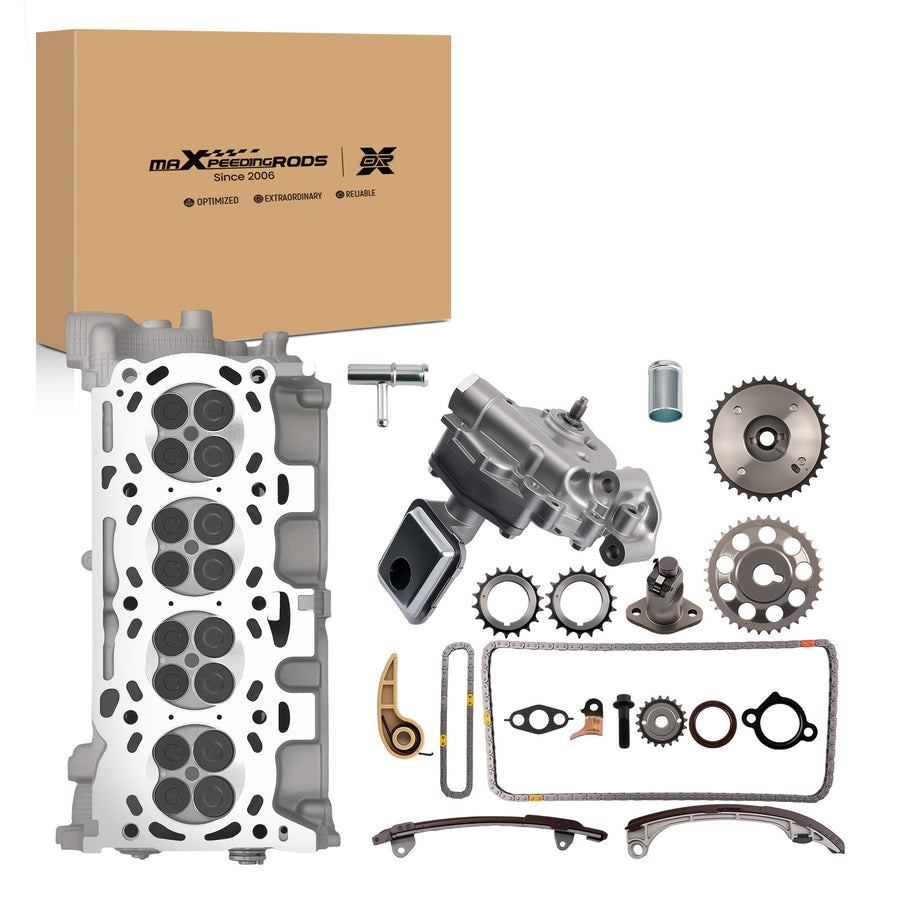

Package Content

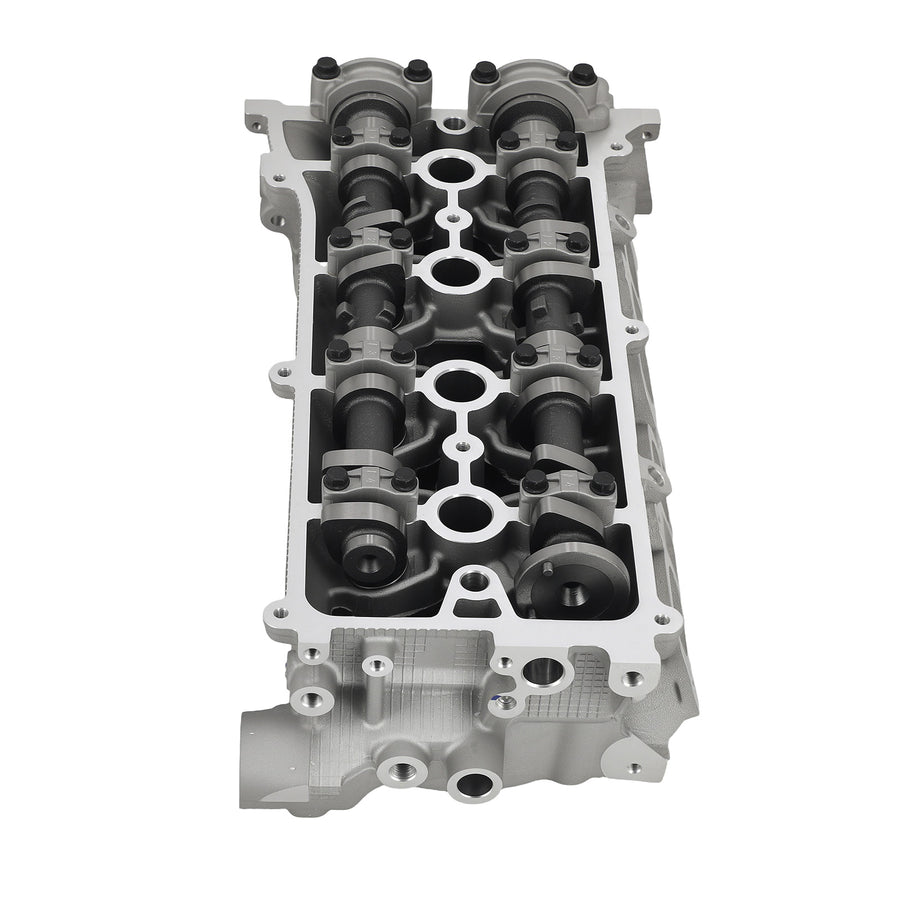

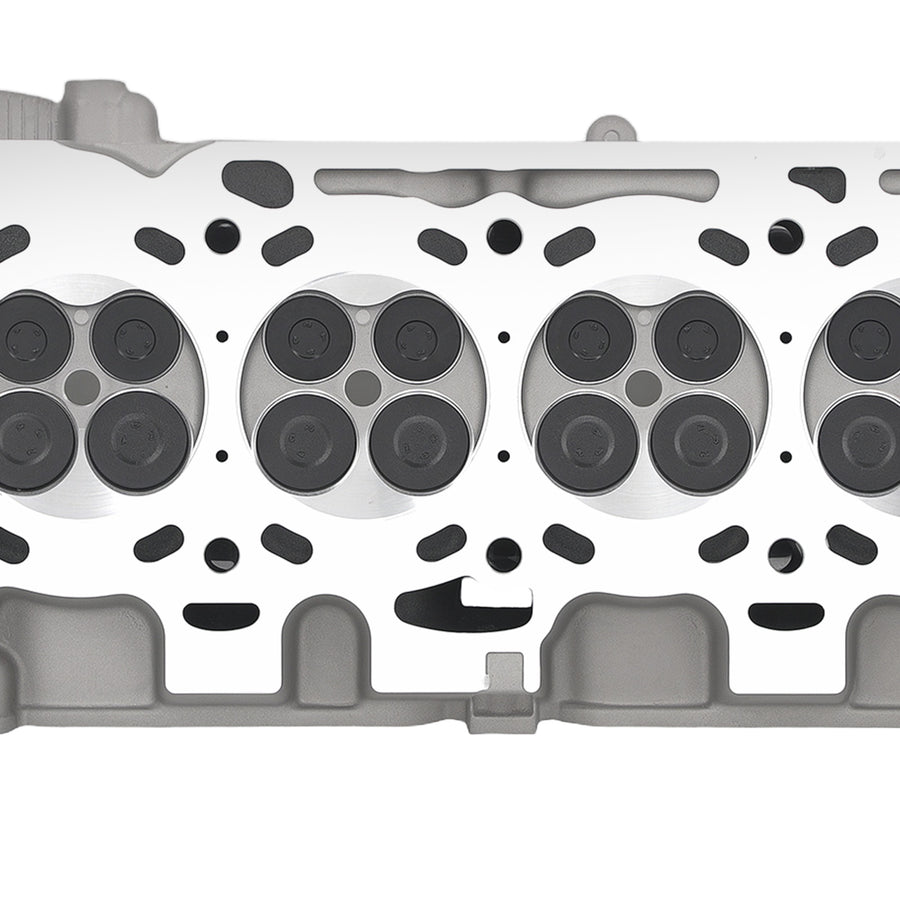

• 1* Cylinder Head Assembly
• 1*Timing Chain (134 Links)
• 1*Oil Pump Chain (52 Links)
• 1*Cam Sprocket (36 Teeth Left VVT-i Sprocket)
• 1*Cam Sprocket (36 Teeth)
• 1*Crank Sprocket (18 Teeth)
• 1*Oil Pump Sprocket (20 Teeth)
• 1*Sprocket (20 Teeth)
• 1*Tensioner
• 1*Guide Rail (Tensioner Rail)
• 1*Guide Rail (Fixed Rail)
• 1*Guide Rail (Oil Pump Fixed Rail)
• 1*Oil Pump
