Compatible Vehicles
- Compatible for Jeep Grand Cherokee WJ RWD 1999 - 2004
- Compatible for Jeep Grand Cherokee WJ 4WD 1999 - 2004
Introduction
The suspension lift kit is a modification done to an 4WD to raise the overall height and obtain extra inches of ground clearance. This helps the vehicle's off-road performance by avoiding the obstacles that can be found on the ground.
Feature
- High Tensile Strength Steel for optimal durability and fitment.
- Powder coated surface：provides superior corrosion resistance.
- High-pressure nitrogen charged twin-tube shock absorber with high durability.
- Rubber bushings for better absorption.
- 36KN Tensile Strength.
- Improve your on and off-road ride.
- Increase the ground clearance

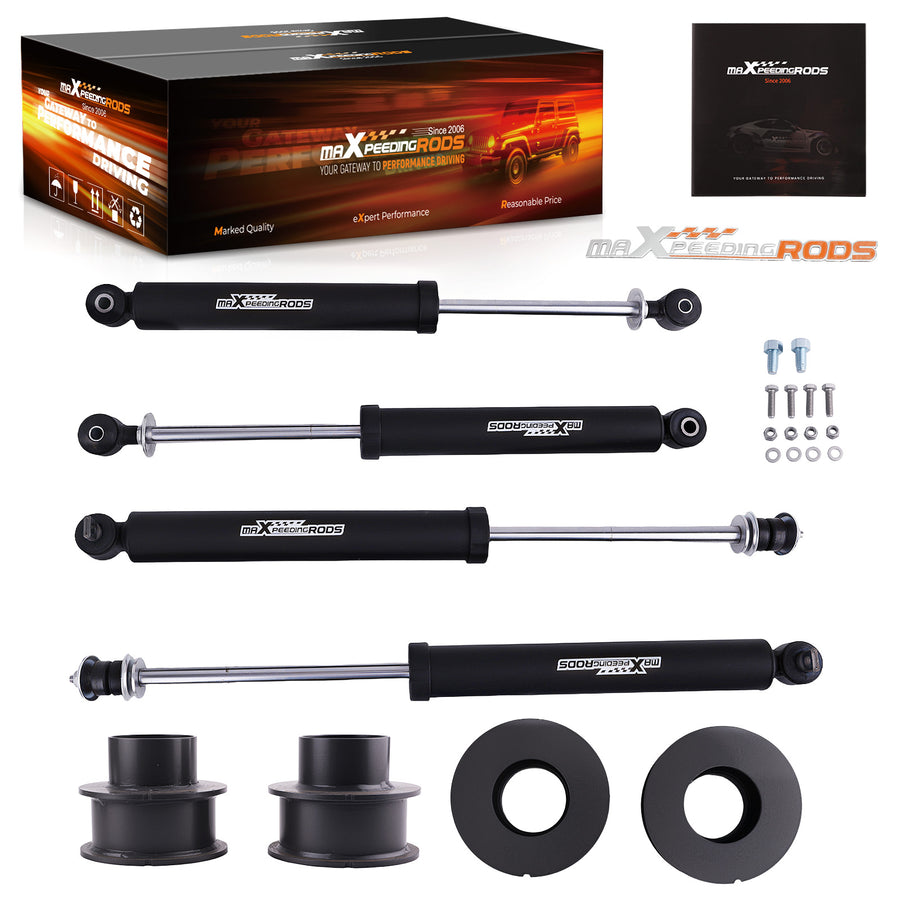

Package Includes
- 2x front spring spacers
- 2x front shocks
- 2x rear spring spacers
- 2x rear shocks
- necessary hardware included
Note
- Does NOT fit models with Quadra-Trac I, Quadra-Trac II, or Quadra-Drive.
- Does NOT fit models equipped with a rzeppa joint front driveshaft.
Product type
Lift spacer with shocks
Lift height
2" front and rear
Spacer material
Steel
Front
59mm/2.32"
Rear
45mm/1.77" (lift height not equal to the thinckness)
Finish
Powder-coated
Bushing material
Rubber
Diameter of piston rod
F&R 18mm/0.70"
Piston diameter
F&R 32mm/1.25"
Outer cylinder diameter
F&R 50mm/1.95"
Travel range
F: 210mm/ 8.26" R: 250mm/ 9.84"
Extended length
F: 605mm/23.81" R: 700mm/27.55"
Collapsed length
F: 395mm/15.55" R: 450mm/17.71"
Nitrogen charged
Yes
package dimensions
66.1*23.8*20.3
weight
- 19.25 kg
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
