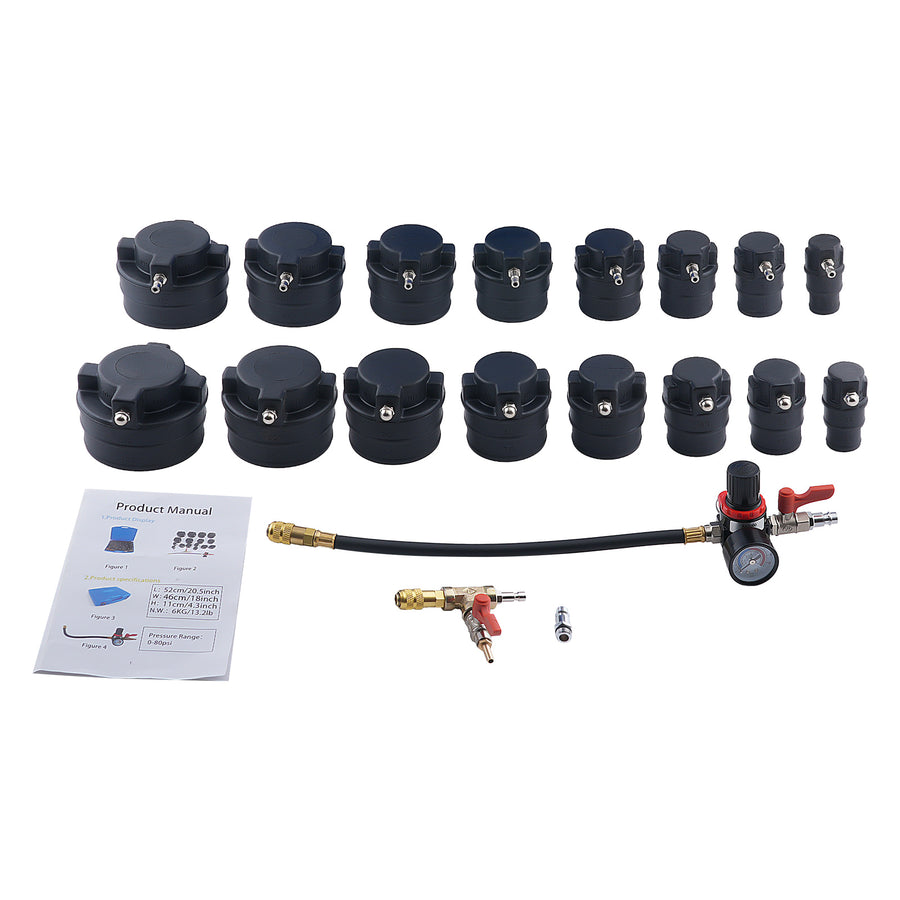

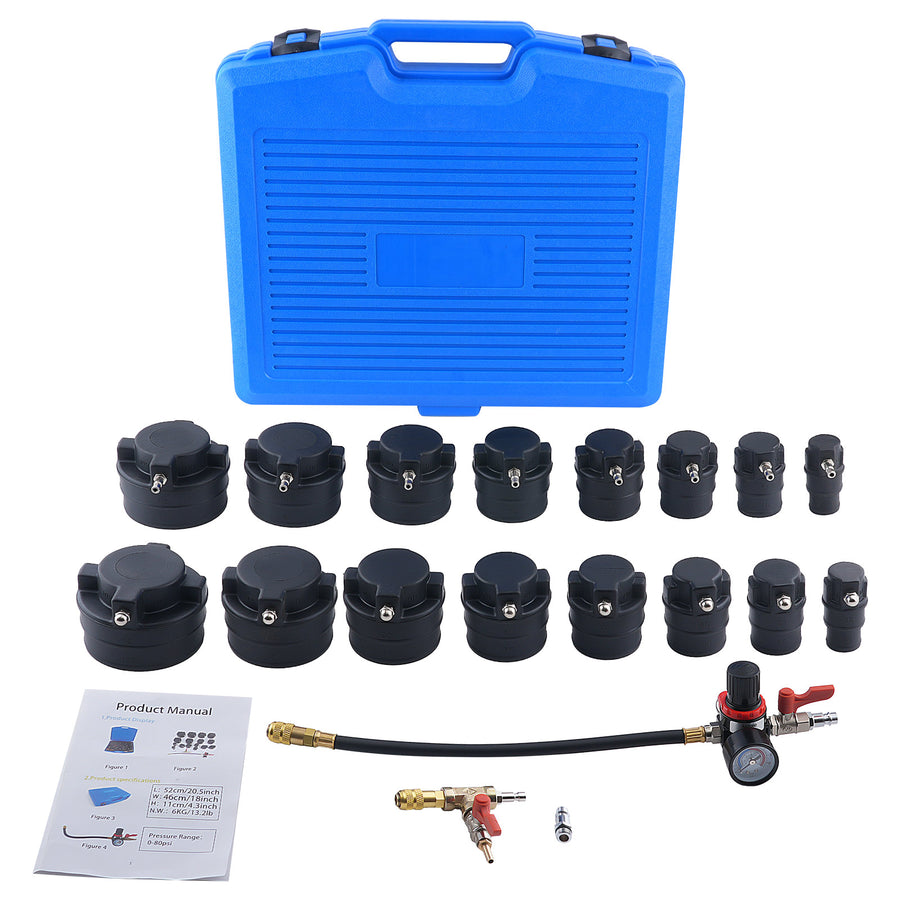

19 Pcs Turbo System Leakage Tester Tool Set Turbocharger Turbo Boost Leak Tester

Compatible Vehicles

• 19 Pcs Turbo System Leakage Tester Tool Set Turbocharger Turbo Boost Leak Tester

Specification

• Type:Leakage Tester Kit
• Materials:PE

Feature

• 1.Turbo System Leaks Tester: If you have a turbo-charged car, leaks can develop in the system. If you have any leaks in the turbo system, you will have a loss of boost pressure and a subsequent loss of power. and this turbo pressure testers kit are specially design to check turbo system leaks or cooling systems pipe, and to pressure test turbo pipes, intercoolers & cooling sytems pipes & radiators, help you easy to troubleshoot turbo leak, and find the leak location

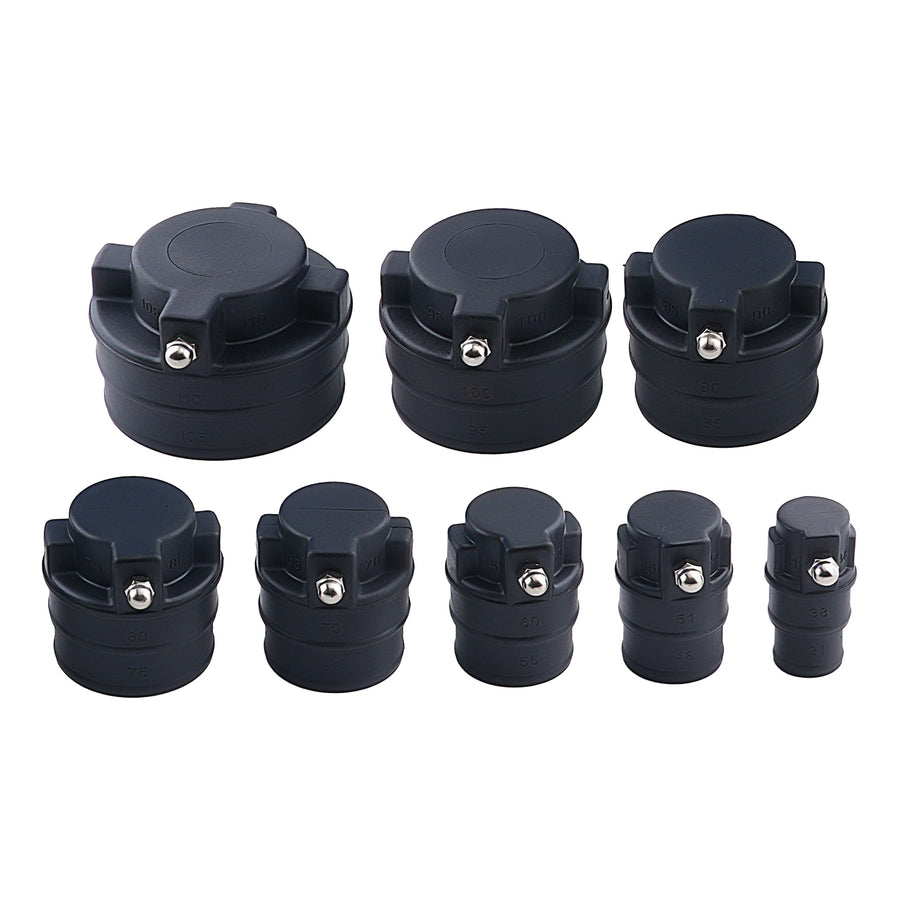

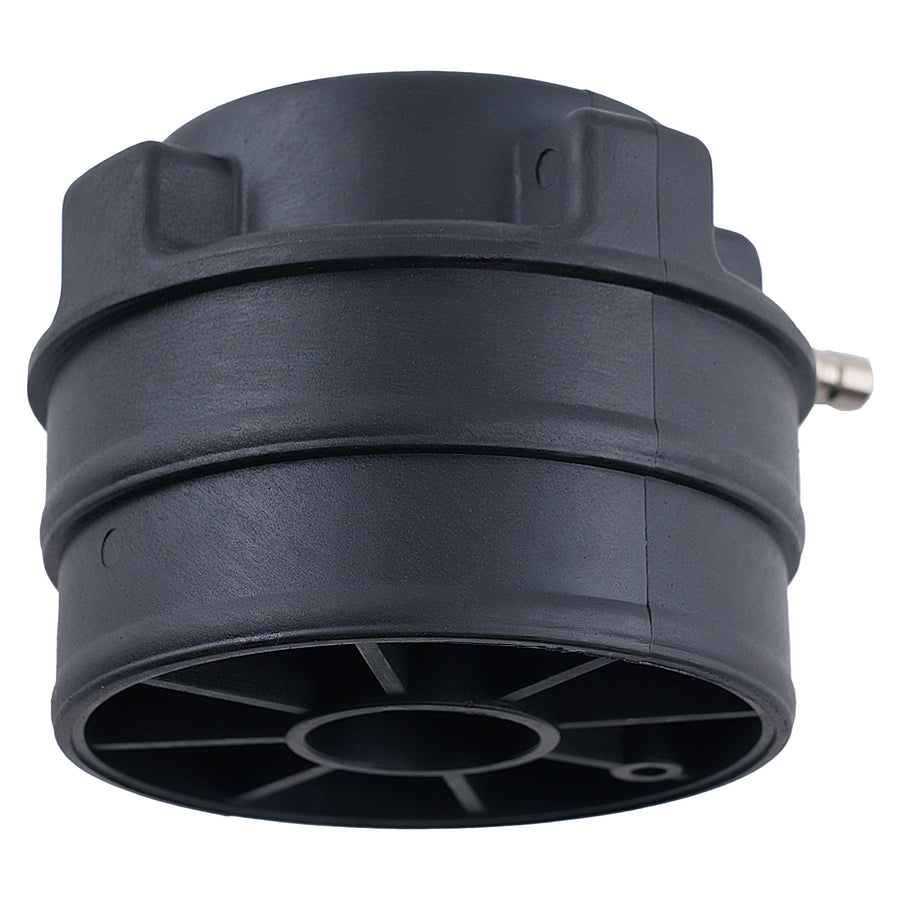

• 2.Specification: This turbo system leakage tester kit include 16 stepped adapters, pressure gauge with shut off valve & regulator and smoke adapter. 16 stepped adapters for various pipe sizes: 31-38mm(1-1/4''-1-1/2''), 46-51mm(1-7/8''-2''), 55-60mm(2-1/8''-2-3/8''), 65-70mm(2-1/2''-2-3/4''), 75-80mm(3''-3-1/8''), 85-90mm(3-3/8''-3-1/2''), 95-100mm(3-3/4''-4''), 105-110mm(4-1/8''-4-1/4'')
• 3.Wide Application: This kit identifies any leaks within the turbo system using standard workshop air. Designed for turbo systems, but can also be used for radiators, coolers, tube/pipe assemblies. Fit most turbo systems on cars and light commercial vehicles, but also suitable for hoses on a small number of heavy commercial vehicles. And this turbo boost test kit is used for cars, LCV, HGV & marine systems. Tips: Please check if the set and stepped adapters are suitable for your vehicle model

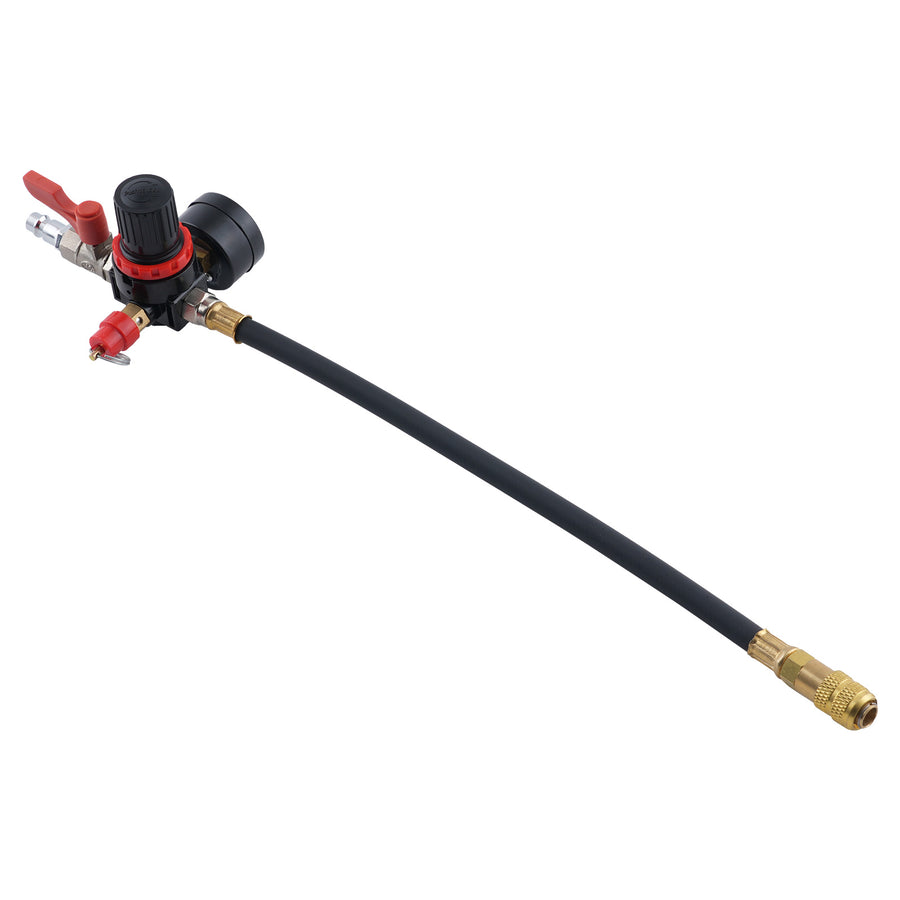

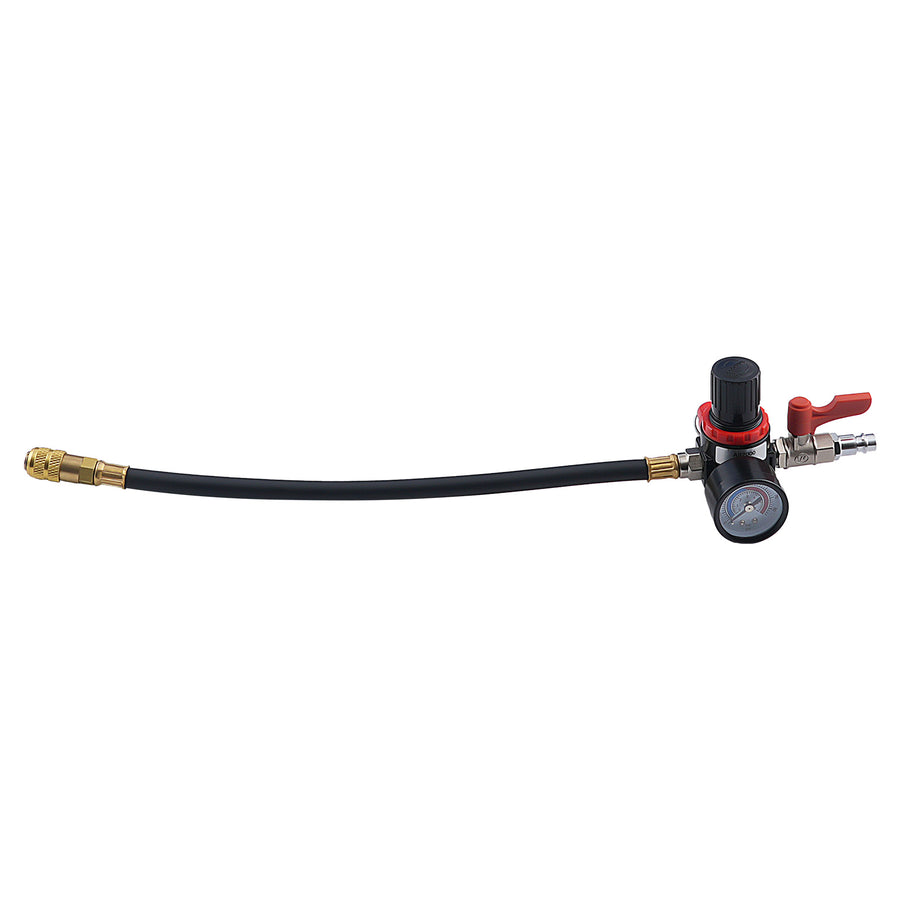

• 4.With Pressure Guage Tester: with a 0-6 bar(0-87 psi) pressure guage, it could precise measurement the pressure inside the hose, included pressure regulator, press down it means lock, when you need adjust pressure, you need pull up it and rotate. and a red manual valve to control air pressure on and off; you can pull the red excess pressure release valve to reduce air pressure if over pressurisation
• 5.Easy To Check Turbo System Leaks: Make stoppers plugged hose intake and exhaust , use regulator connect stoppers and air compressor, pressurize the turbo system, once pressurized you can see the guage if holding pressure and hear any leaks.

Package included

• 16 Stepped Adapters
• Pressure Gauge With Shut Off Valve & Regulator

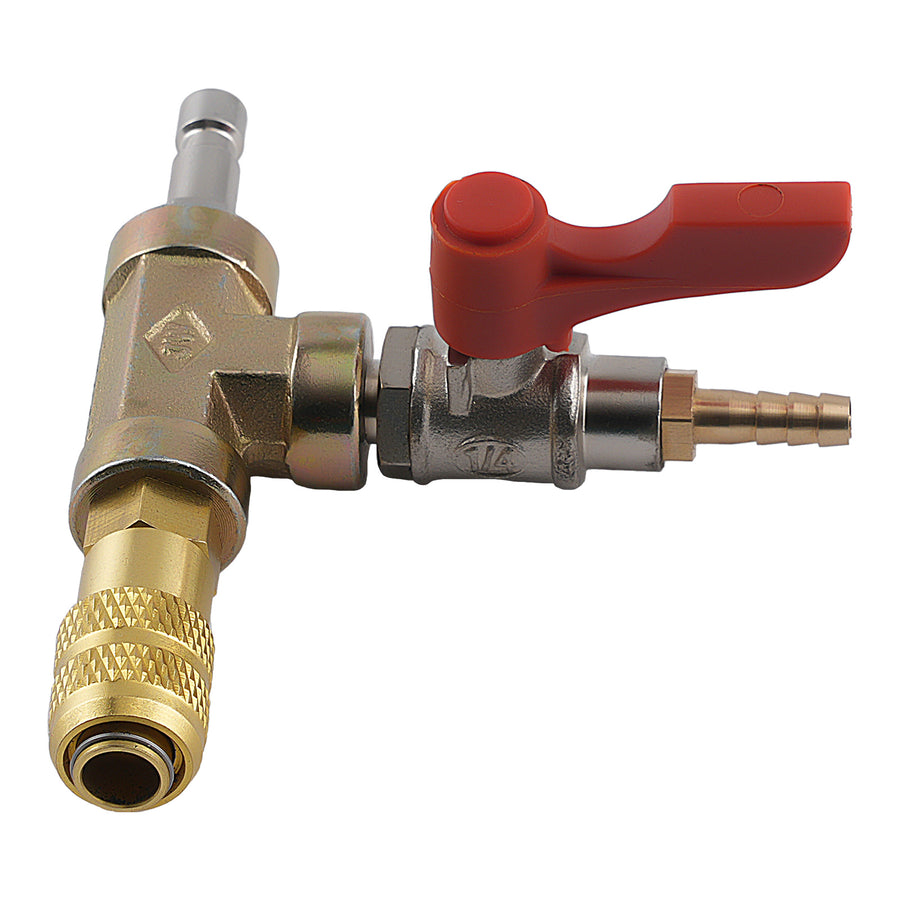

• Smoke Adapter

Note

• 1.Ensure correct adapter size is selected for your vehicle model
• 2.Tighten clamp behind ridge on adapter for secure fit
• 3.Adjust regulator pressure carefully to avoid over pressurization
• 4.Use water spray to locate leaks after pressurization
• 5.Release pressure completely before removing adapters
