1100lbs Engine Support Bar Engine Transverse Dual Hook Cross Lift Hoist Holder

Compatible Vehicles

• 1100lbs Engine Support Bar Engine Transverse Dual Hook Cross Lift Hoist Holder

Specification

• Material: Q235 Steel
• Capacity：1100lbs
• Chain：3.57 in. / 90 mm
• Working Range：28.74 - 58.28 in. / 730-1480 mm
• Type：Engine Support Bar
• Vehicle Type：Passenger Vehicle
• Adjustable Height：0- 8.07 in. / 0-205 mm

Feature

• 1.Performance Engine Support Bar: Holding capacity: 1100 lbs. This engine support bar can precisely position and support the engine while working on the transmission or holds the transmission in place while removing the engine for rebuilding.
• 2.Rotating Lift Pile: The lifting height of 2 rotating hoists on the engine holder bar can be adjusted from 0 to 7.87 inches. Turn the handle to raise or lower the motor at the proper height according to your requirements.

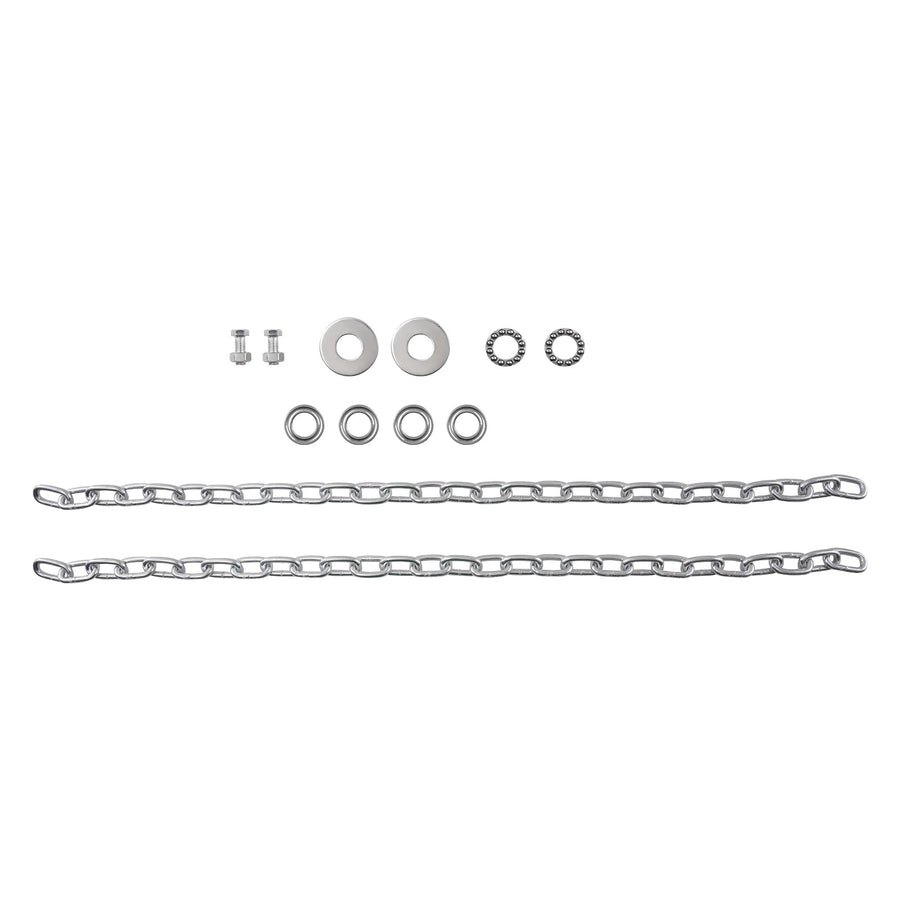

• 3.Engine Binding Chain: It comes with double strong iron chains that ensure the secure landing of the motor. The bold chains are tightly welded and don't break.
• 4.Adjustable Working Range: Equipped with a knob and stable triangular base on each side. The range between the 2 bases can be adjusted; you can place them in the appropriate position. The width of the beam is 59.06 in, so it applies to vehicles that width is less than 59.06 in.
• 5.Dual Steel Bar: The engine support bar is made of heavy-duty steel with a protective powder coat finish, high rigidity, and resistance. The dual steel bar build means this engine bar can support your engine or transmission through long rebuilds.

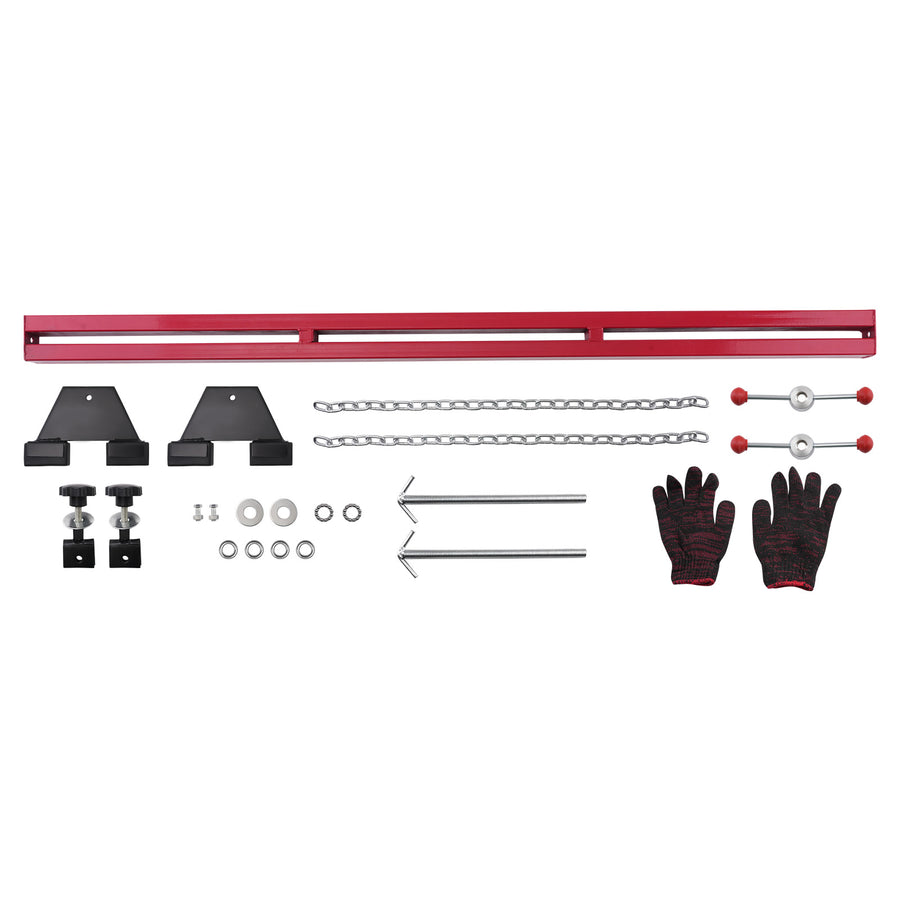

Package included

• 1* Engine support stand

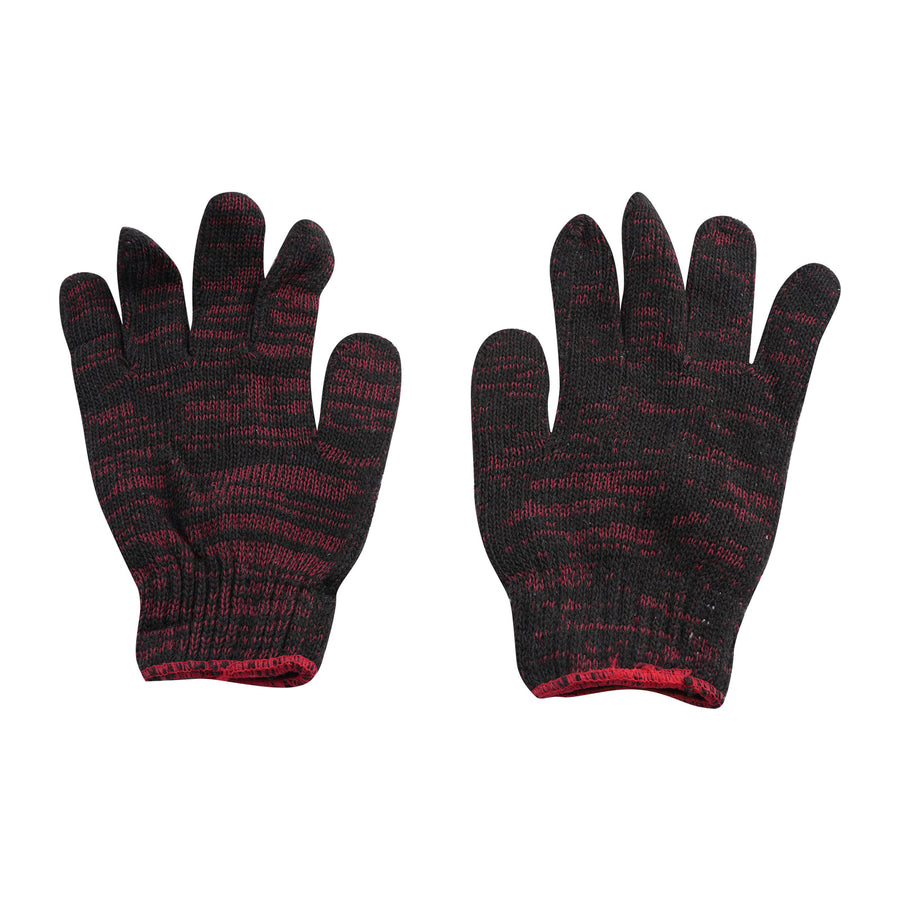

• 2* Glove

Note

• 1.Ensure the stand is properly adjusted before removing heavy components
• 2.Always use protective gloves when handling the engine stand
