For general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories
Feature
-3 Jaw Self Centring Lathe Chuck
-Sttructure of solid jaws
-New and High Quality.
-This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.

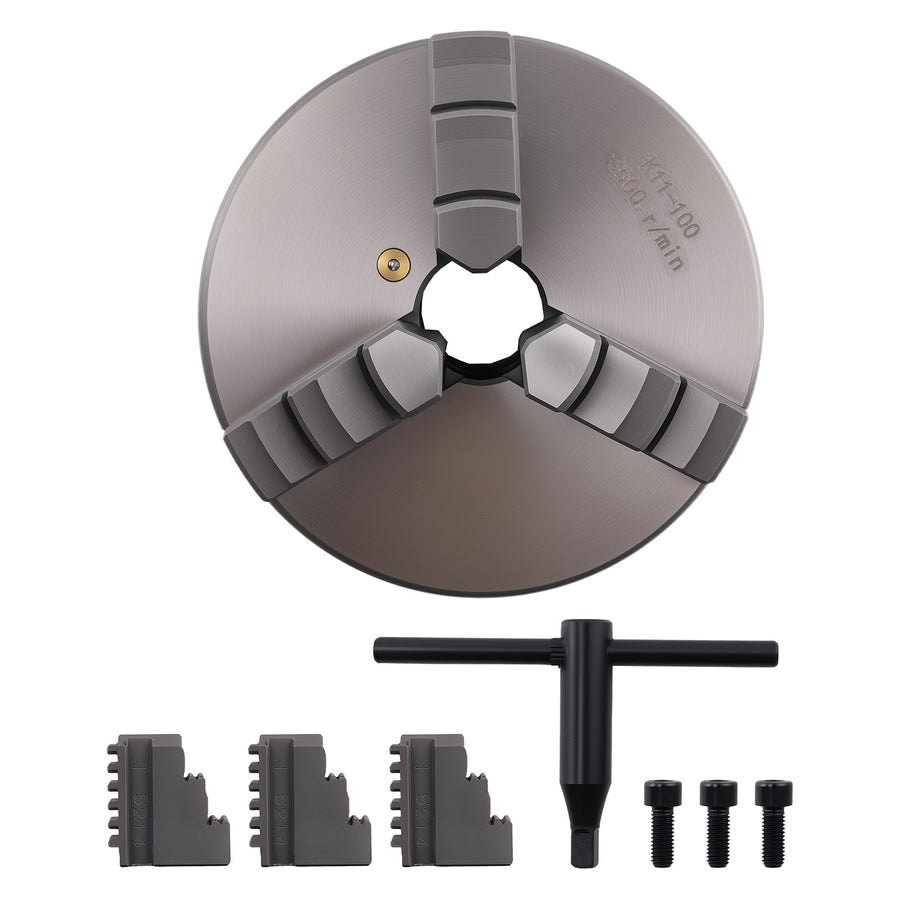

Package included
1* 4" / 100 mm Lathe Chuck Body

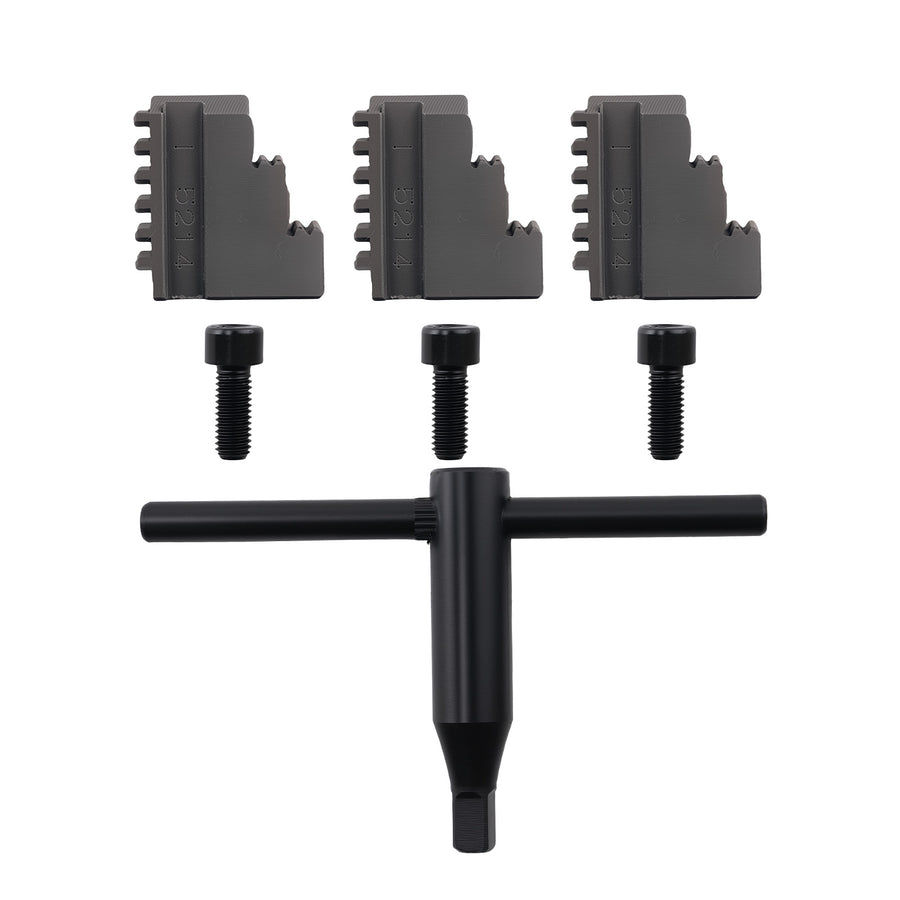

3* Internal Jaws
3* External Jaws
3* Mounting Bolts
1* Chuck Key
Showing as the picture
Note
-Please make sure that the model and appearance of your equipment are exactly the same as our products.
-It is the customer's responsibility to buy the right products.
-If you are not sure, please contact us in time.
-Thank you for your cooperation.
<div
OE/Part number
K11-100,K11100
Condition
New
Chuck Type
Three Jaw Chuck
Model
K11-100
High Precision
≤0.002" / 0.05 mm
Mounting Thread
3-M8
Outside Diameter
3.94" / 100 mm
Bolt Circle Diameter
3.31" / 84 mm
Center Thru Hole Diameter
0.866" / 22 mm
Chuck Body Thickness
2.16" / 55 mm
Internal Jaw Clamping Range (A-A1): 0.078"-1.18" / 2-30 mm
Internal Jaw Jamming Range (B-B1): 1.18"-3.54" / 30-90 mm
External Jaw Clamping Range (C-C1): 1.18"-3.15" / 30-80 mm
