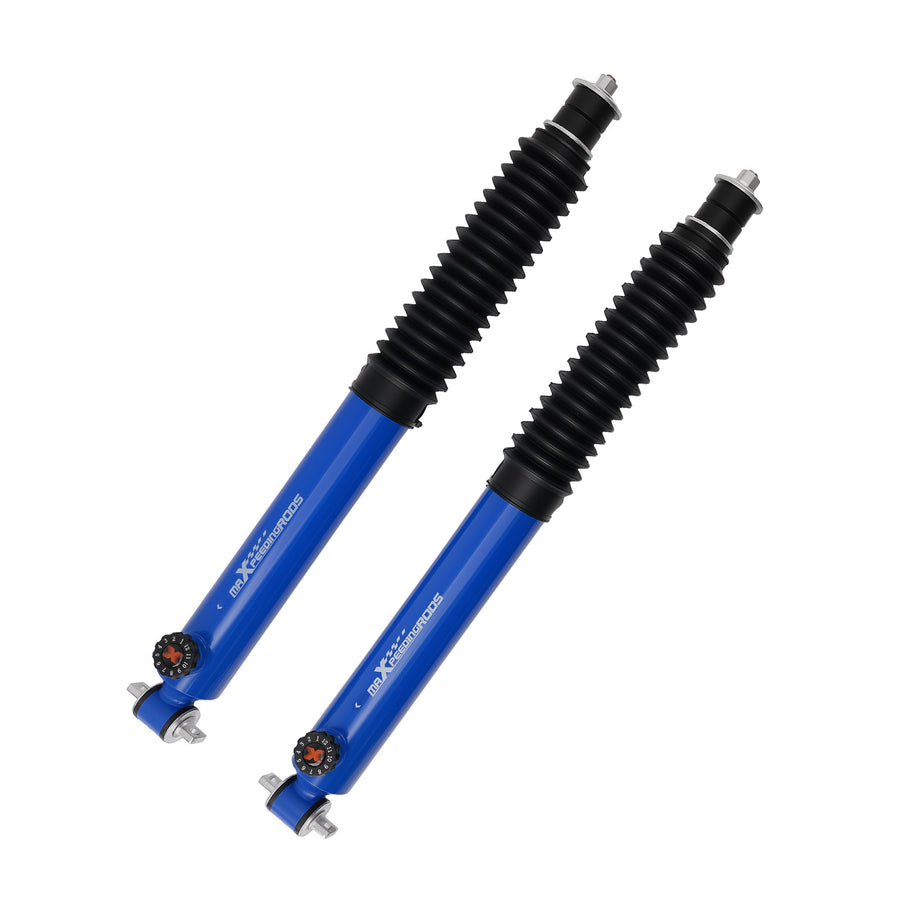

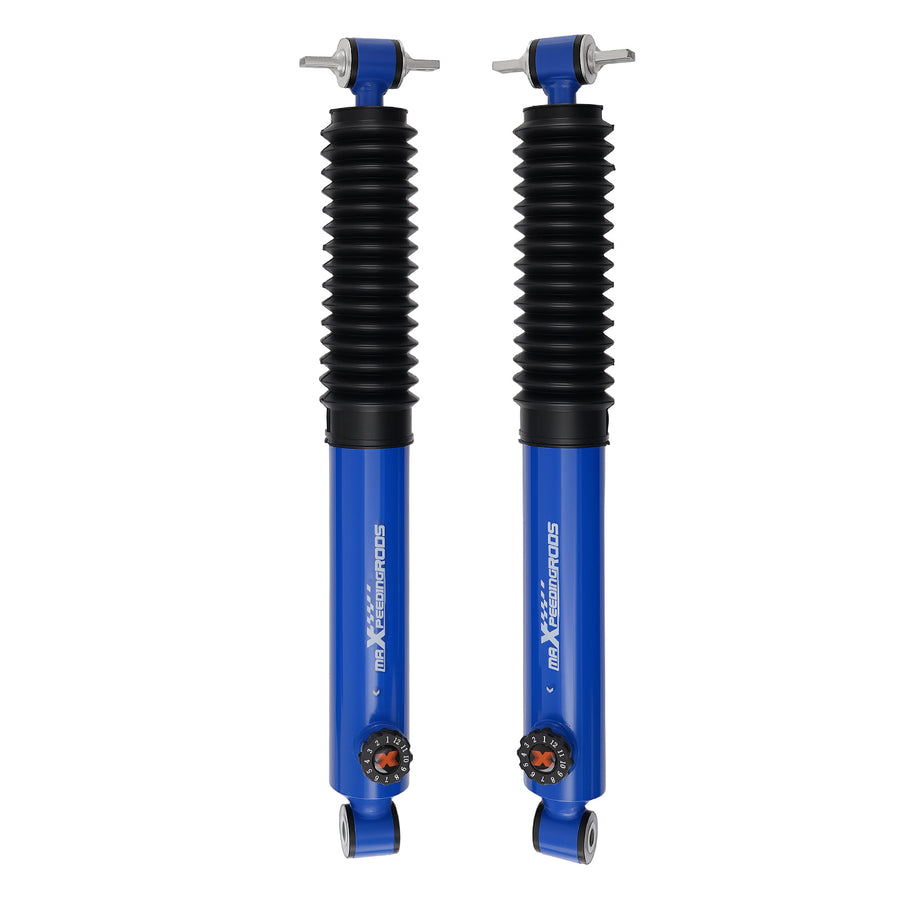

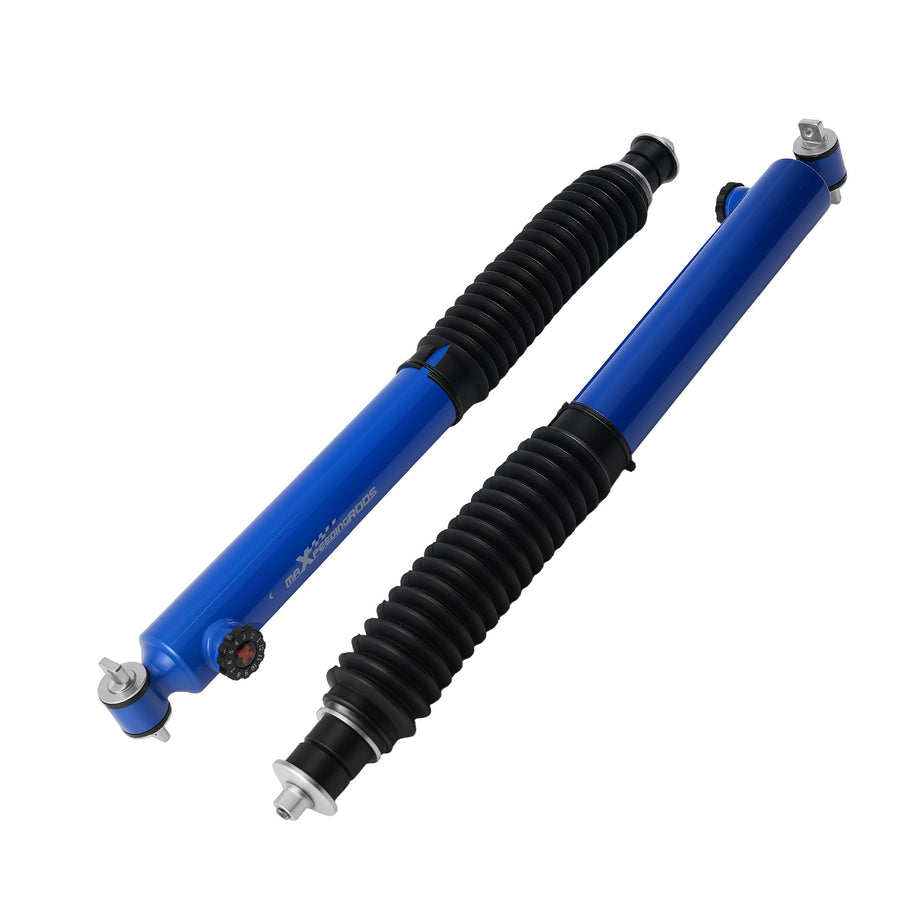

1-3 Suspension Lift Shocks compatible for Jeep Wrangler TJ RWD 4WD 1997-2006 Absorbers Kit

Compatible Vehicles

• For 1997-2006 compatible for Jeep Wrangler TJ 4WD & RWD
• NOTE:
• Target Tyre Size:
• 31X10.50R15(1" Lift), 33X12.50R15(3" Lift)
• Target Gear Ratio:
• 4.10(31X10.50R15), 4.56(33X12.50R15)

Specification

• Type：lift shock
• Compatible Height：F&R 1-3"
• Material: High Tensile Strength Carbon Steel
• Finish: Oven-baked paint
• Bushing material: Rubber
• Adjustable: 12 level rebound adjustable
• 1(Softest)-6(OE)-12(Hardest)
• Levels 1-4 are suggested for daily street driving
• Levels 5-8 are suggested for daily mixed driving conditions
• Levels 9-12 are suggested for off-road driving
• Diameter of piston rod: F&R 18mm/0.70"
• Piston diameter：F&R 35mm/1.37"
• Outer cylinder diameter: F&R 58mm/2.28"
• Travel: F: 223mm/8.78" R: 193mm/7.59"
• extended length: F:674mm/26.53" R: 550mm/21.65"
• collapsed length:F: 451mm/17.75" R: 357mm/14.05"
• Nitrogen charged：yes
• dust cover equipped: yes
• Upright Type：Rod (Upper), Tube (Lower)
• Mount Type:
• F Upper：M12*1.25 (Stud) Lower：8*61 (Bar Pin)
• R Upper：10*80 (Bar Pin) Lower：13*37.5 (Eyelet)
• Damping Tuning: Rebound-Optimised

Feature

• 12-way rebound control for precise tuning on street, trail, or heavy loads.
• 2.28" twin-tube design with 15-20% more oil capacity for fade-free off-road performance
• High quality all-weather oil come with stable viscosity from -20°C to +80°C for consistent performance.
• 1.37" oversized piston delivers 30% stronger damping force than standard shocks
• 0.70" chromoly steel piston rod is hardened and chrome-plated for rock-proof durability.
• The plate-type multi-lip seal provides dual professional protection with excellent effectiveness
• Upgraded rubber bushings for better absorption and more durable.
• High Tensile Strength Steel for optimal durability and fitment.
• Dust cover included prevent the shaft rod and oil seal from damaging.
• Baked Paint Finish provides superior corrosion resistance.
• Match with lift springs and improve your off-road ride.

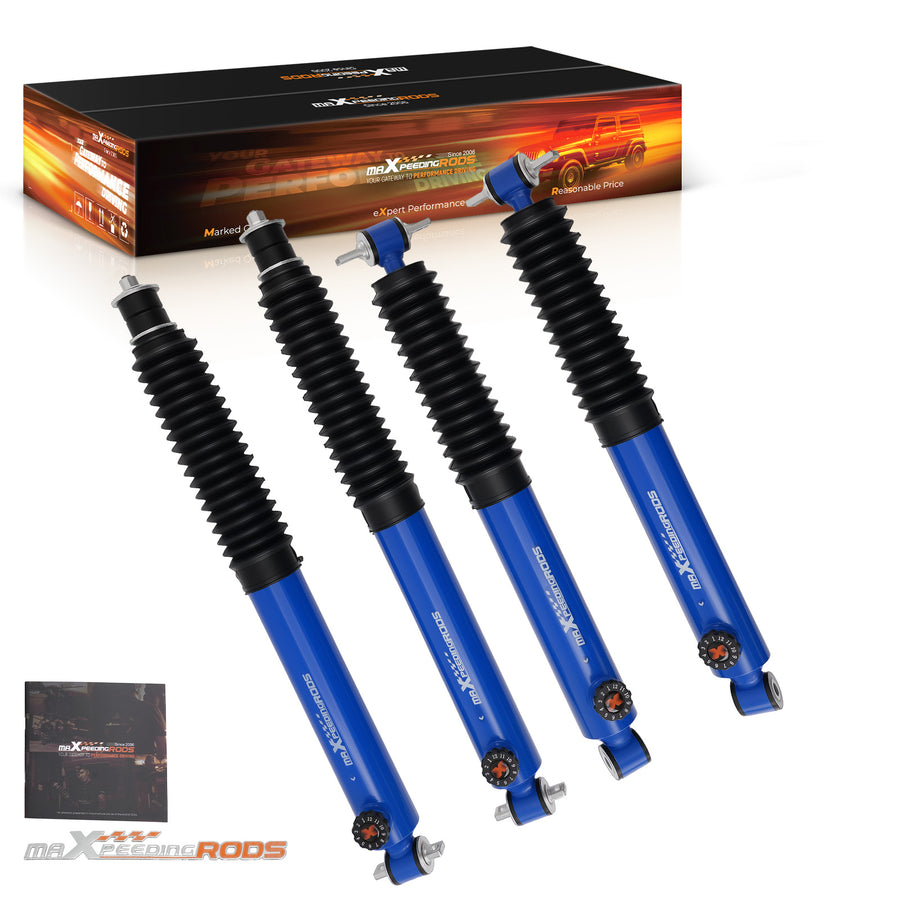

Package included

• 2X Front Shock Absorbers
• 2X Rear Shock Absorbers
